Air Cleaner Fresh Air Duct/Hose: Service and Repair

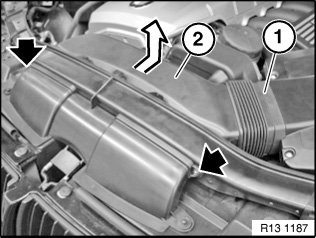

13 .. ... Removing intake duct (N52/ N52K/ N51/ N53)





Release screws.

Unlock air intake hose (1) sideways and detach.

Remove intake duct (2) in direction of arrow.
