Accelerator Pedal: Service and Repair

35 40 001 Removing And Installing Or Replacing Accelerator Pedal Module

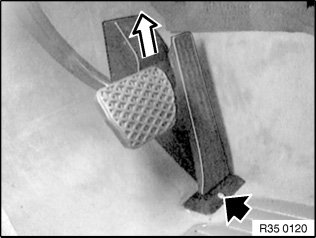

Take off cap.

Release screw.

Pull accelerator pedal module upwards out of fixture.

Installation:
Tightening torque 35 40 1AZ.

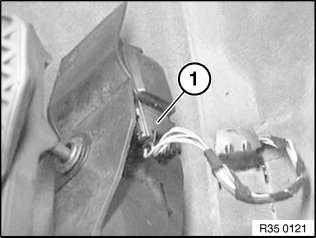

Pull off plug (1).

Remove accelerator pedal module.







IMPORTANT: Accelerator pedal module can only be replaced completely with adapter plate.
