Leak Detector: Service and Repair

16 13 015 - Removing and installing/replacing tank leak diagnosis module (petrol/gasoline cars with US DMTL version)





Necessary preliminary tasks:
- Remove carbon canister

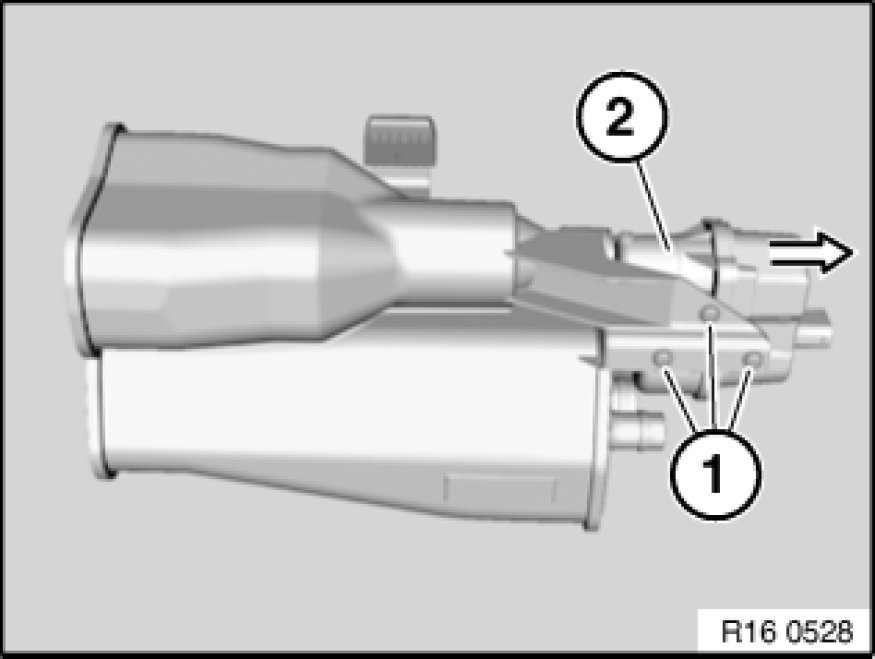

Release screws (1).
Disconnect tank leak diagnosis module (2) from carbon canister in direction of arrow.

Installation:
Tightening torque 16 13 2AZ 16 13 Tank Ventilation.
Replace sealing ring.
