Evaporative Emission Control Canister: Service and Repair

16 12 010 Removing and Installing or Replacing Carbon Canister







Necessary preliminary tasks:
- Remove cover for carbon canister

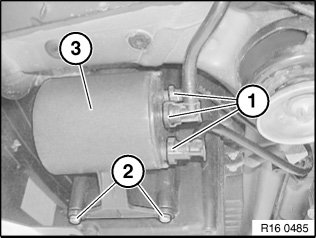

Unlock quick-release fasteners (1) and disconnect vent lines.

Release screws (2) and remove carbon canister (3).

Installation:
Tightening torque 16 13 1AZ.
