31 21 180 Replacing Bearing (Wheel Bearing) For Front Wheel




31 21 180 - Removing and installing/replacing bearing for front wheel





Necessary preliminary tasks:
- Remove brake disk

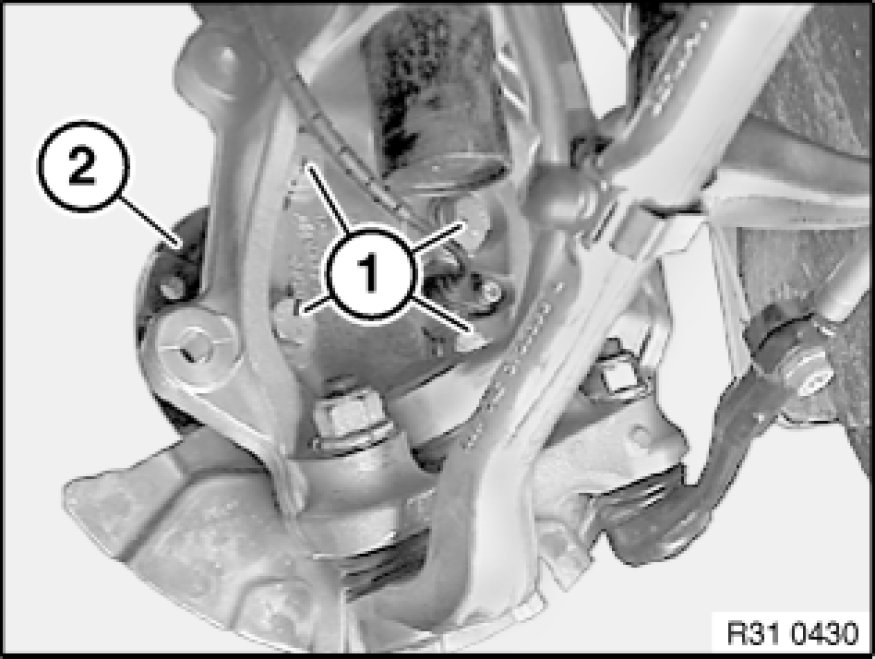

Release screws (1).
Press wheel bearing (2) off swivel bearing with a suitable tool.

Installation:
Replace microencapsulated screws.
Tightening torque 31 21 1AZ Wheel Bearings And Steering Knuckle.





Installation:
When reusing, recut all the threads in the wheel bearing.
Keep contact surface (1) of swivel bearing and wheel bearing clean and free from oil and grease.
