32 41 332 Replacing Delivery Line for Power Steering

32 41 332 Replacing pressure line for hydraulic steering (N54/N55)





Warning!
Danger of poisoning if oil is ingested/absorbed through the skin!
Danger of injury if oil comes into contact with eyes and skin!

Important!
Adhere to the utmost cleanliness. Do not allow any dirt to enter the hydraulic system.
Close off pipe connections with seal plugs.





Recycling:
Catch and dispose of hydraulic fluid in a suitable collecting vessel.
Observe country-specific waste disposal regulations





Necessary preliminary work:
^ Draw off and dispose of hydraulic fluid from fluid reservoir
^ Remove front underbody protection
^ Remove left charge air duct

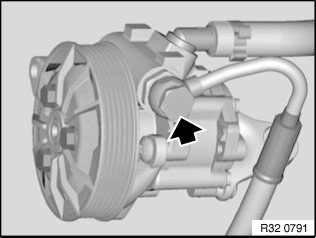

Release banjo bolt and detach pressure line from vane pump.

Installation note:
Replace all sealing rings.

Make sure pressure line is laid without tension and with sufficient distance to adjoining components.

Tightening torque 32 41 8AZ.

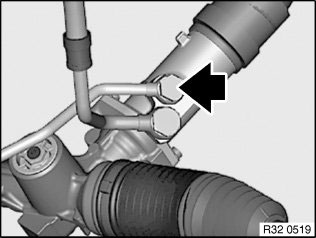

Expose pressure line up to connection on hydraulic steering gear.

Release banjo bolt from above (engine compartment) and remove the pressure line.





Installation note:
Replace all sealing rings.

Make sure pressure line is laid without tension and with sufficient distance to adjoining components.

Tightening torque 32 41 9AZ.





After installation:
^ Fill and bleed hydraulic system
^ Check line connections for tightness
