63 31 050 Removing and Installing/Replacing Mirror Light

63 31 050 - Removing and installing/replacing mirror light





Special tools required:
- 00 9 341






Important!
Follow instructions for handling light bulbs (interior lights) [1][2]63 99 ... Instructions For Replacing Light Bulbs (Interior Lights).

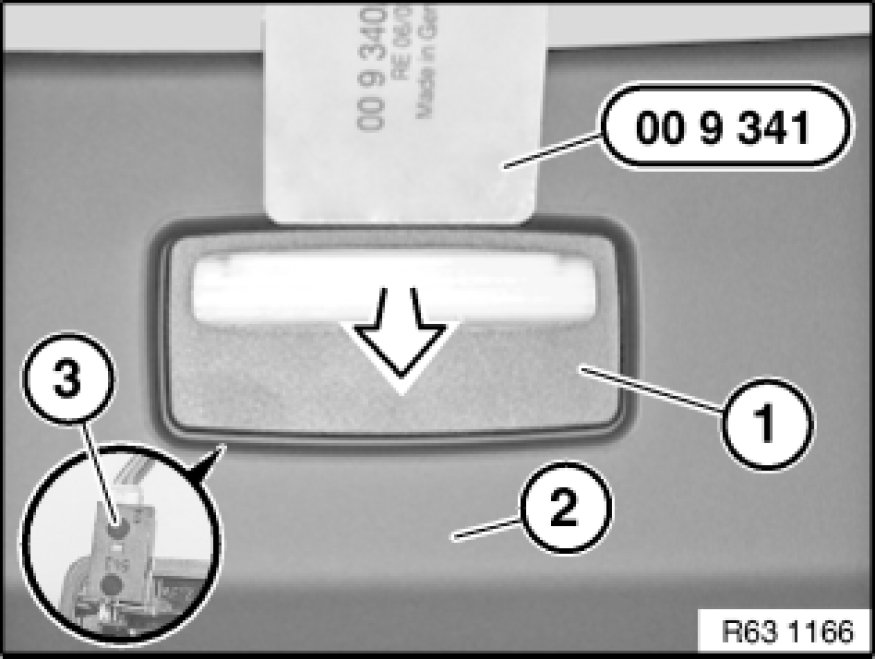

Lever mirror light (1) with special tool 00 9 341 in direction of arrow out of upper cowl panel trim (2).

Disconnect plug connection (3) and remove mirror light (1).

Replacement:

If necessary, remove bulbs 63 99 445 Replacing Bulb(S) For Mirror Light.
