Replacing Bulb for Front Left (or Right) Turning Lights

63 99 160 Replacing Bulb For Front Left (or Right) Turning Lights







WARNING:
Version with xenon headlights:
Danger to life due to high voltage.
Therefore, before removing, disconnect all components from the voltage supply (lighting system and ignition off).
Work on the entire xenon lighting system (control unit, ignition unit with bulb) may only be carried out by qualified personnel.
Follow instructions for handling light bulbs (exterior lights).

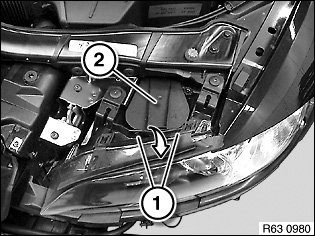

Unlock catches (1) and remove cover (2) in direction of arrow from headlight.

Installation note:
Cover (2) must be correctly engaged.
Check seal.
Replace cover (2), if applicable.
Observe notes regarding replacement of the protective cap.

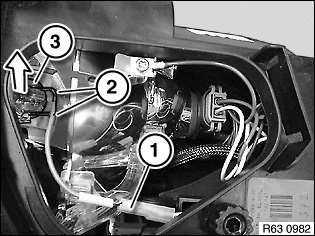

NOTE: Headlight removed for purposes of clarity.

Disconnect plug connection (1).
Disconnect locking clip (2) and fold upwards.
Remove bulb for turning lights (3) from headlight.

Installation note:
Note bulb type.
