Replacing a Socket Housing for Left or Right Rear Light (on Rear Lid)




63 21 057 - Replacing a socket housing for left or right rear light (on rear lid)





Necessary preliminary tasks:
- Remove trim on rear lid

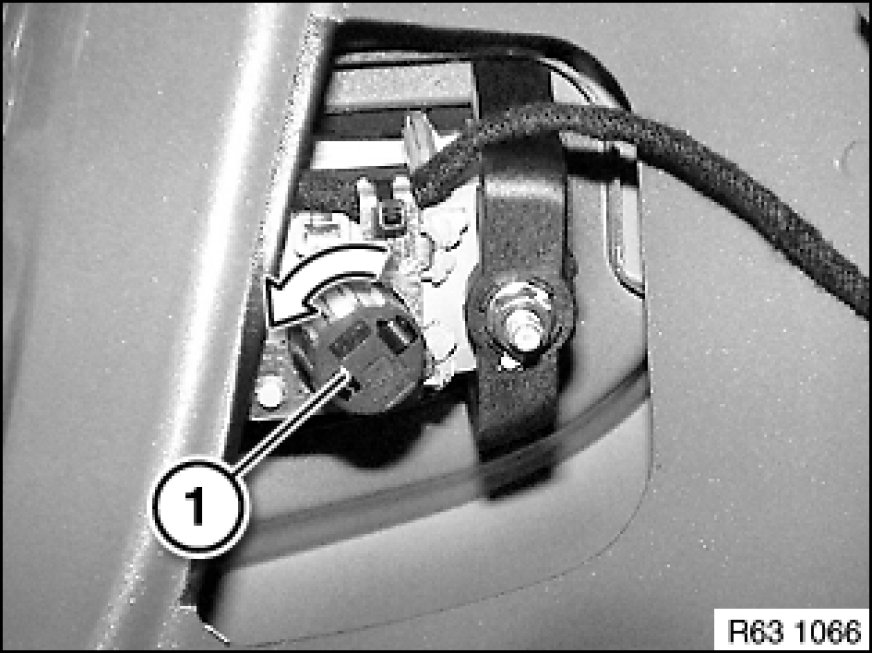

Turn socket housing (1) and pull out of rear light.

Note:
Convert bulbs, replace if necessary.
Note type of bulb Rear Light Unit.
