63 21 180 Removing and Refitting/Replacing Left or Right Rear Light As Fitted From 03/2010 (on Side Panel)

63 21 180 Removing And Refitting/replacing Left Or Right Rear Light As Fitted From 03/2010 (on Side Panel)







IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD protection).

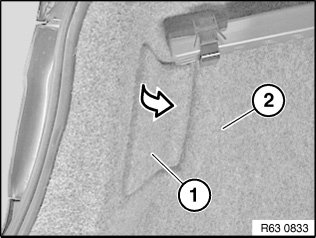

Remove cover (1) in direction of arrow from luggage compartment wheel arch trim (2).

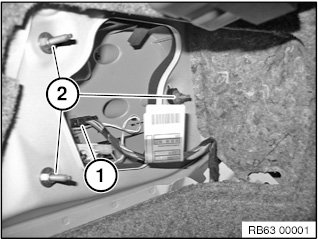

Unfasten plug connection (1) and disconnect.
Unscrew nuts (2).

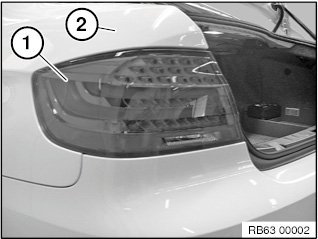

Remove rear light (1) rearwards from side panel (2).

Installation note:
Make sure gap is uniform all round between rear light (1) and side panel (2).







Installation note:

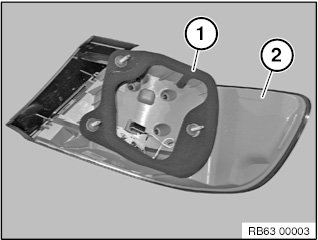

Make sure seal (1) is correctly seated on rear light (2).
