Replacing Ignition Unit for Left Xenon Headlight (With Xenon Bulb)

63 12 870 Replacing Ignition Unit For Left Xenon Headlight (with Xenon Bulb)







WARNING:
Version with xenon headlights: Danger to life due to high voltage.
Therefore, before removing, disconnect all components from the voltage supply (lighting system and ignition off).
Work on the entire xenon lighting system (control unit, ignition unit with bulb) may only be carried out by qualified personnel.
Follow instructions for handling light bulbs (exterior lights).







IMPORTANT: Ignition unit and xenon bulb are viewed as a single component and must not be separated.







Necessary preliminary work:
- Remove front left wheel arch trim







NOTE: Headlight removed for purposes of clarity.

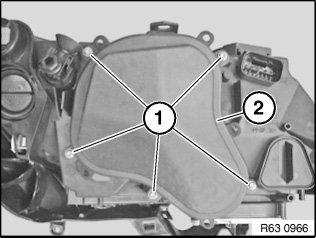

Release screws (1) and remove cover cap (2) from headlight. Tightening torque 63 12 6AZ.

Installation note:
Protective cap (2) must be correctly engaged.
Check seal.
Replace protective cap (2) if necessary.
Comply with Instructions for replacing the protective cap.

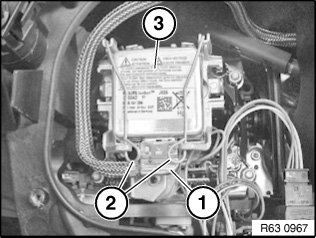

Disconnect plug connection (1).
Unlock spring wire clips (2).
Remove ignition unit for xenon headlight (3) from headlight.

Installation note:
Make sure ignition unit for xenon headlight (3) is exactly seated on headlight.
