63 99 072 Replacing Halogen Bulb For Left or Right Headlight (From Version 9/2008)

63 99 072 Replacing halogen bulb for left or right headlight (from version 9/2008)







WARNING: Comply with notes on handling bulbs.







Unlock and remove cover (1).

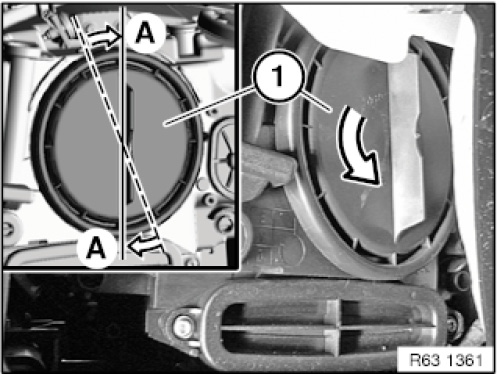

Turn protective cap (1) counterclockwise and remove.

IMPORTANT: Risk of damage due to moisture penetration.

Installation note:
Check seal. Replace protective cap (1) if necessary.
Comply with Instructions for replacing the protective cap.
Protective cap (1) must lock correctly.
Turn the protective cap (1) clockwise to end stop (A).

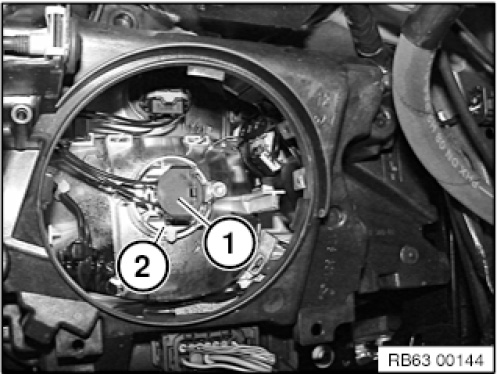

Turn bulb holder (1) in direction of arrow and pull out towards rear.

Installation note:
Make sure retaining tabs (2) in headlight are correctly seated.

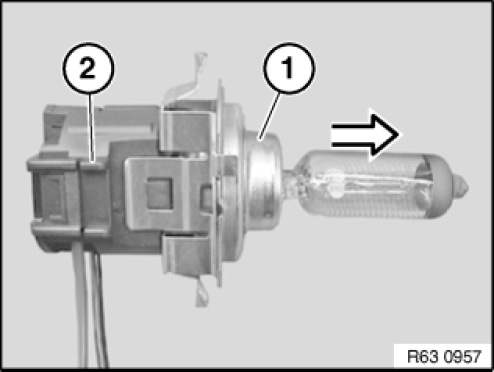

Detach bulb (1) from bulb holder (2).

Installation note:
Note bulb type.
