Removing and Installing/Replacing Left Headlight Vertical Aim Adjuster (Xenon Headlight)

67 16 011 - Removing and installing/replacing left vertical aim adjuster (xenon headlight)





Warning!
Version with xenon headlights: Danger to life due to high voltage!
Therefore disconnect all components from voltage supply before removal.
Work on the entire xenon lighting system (control unit, ignition unit with lamp) may only be carried out by specialist personnel.





Necessary preliminary tasks:
- Remove wheel arch cover front section 51 71 038 Removing and Installing/Replacing Front Left or Right Wheel Arch Cover (Front Section) at front





Note:
For purposes of clarity, following illustrations show headlight removed.

Release screws (1) and remove cover (2).

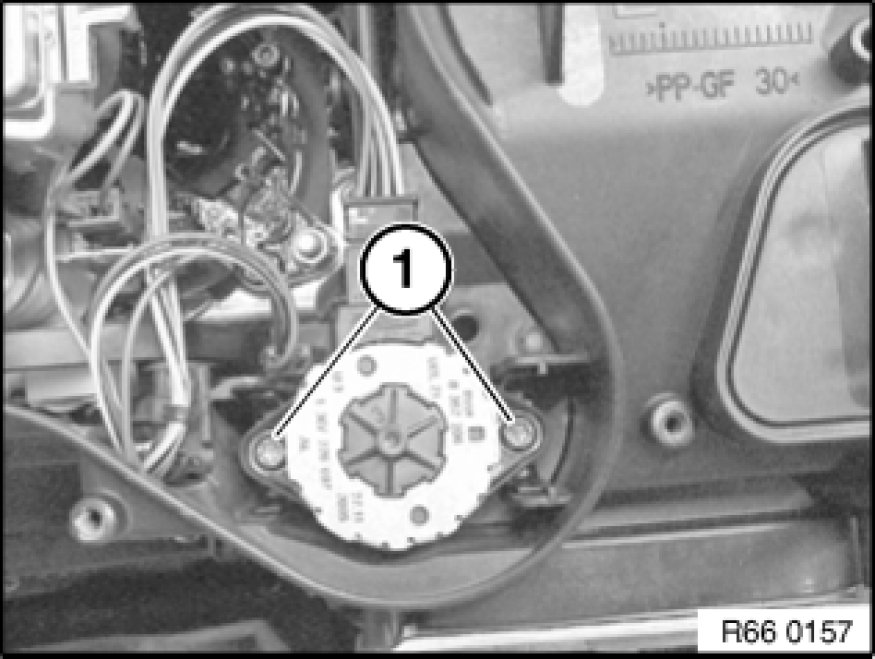

Release screws (1).

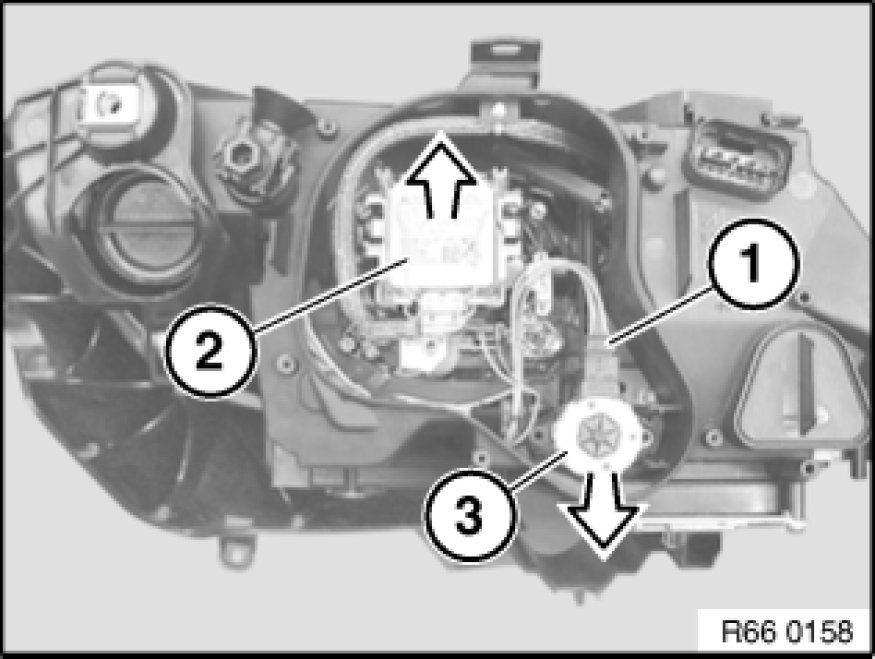

Disconnect plug connection (1).
Slide headlight insert (2) upwards in direction of arrow.
Move vertical aim adjuster (3) downwards in direction of arrow and feed out.

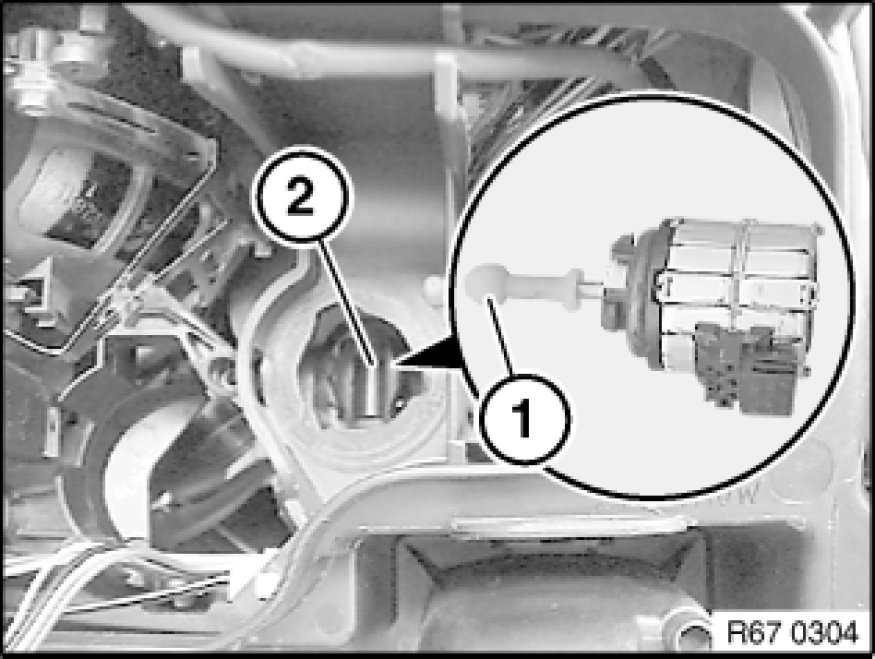

Installation Note:
Feed ball head of vertical aim adjuster (1) into mounting (2).





After installation:
- Adjust headlights Adjusting Headlights
