Replacing Switch for Reversing Light

61 31 270 - Replacing switch for reversing light





Note:
The installation location of the reversing light switch can vary, depending on the transmission model.





Necessary preliminary tasks:
- If necessary, remove rear underbody protection Removing and Installing/Replacing Rear Underbody Protection

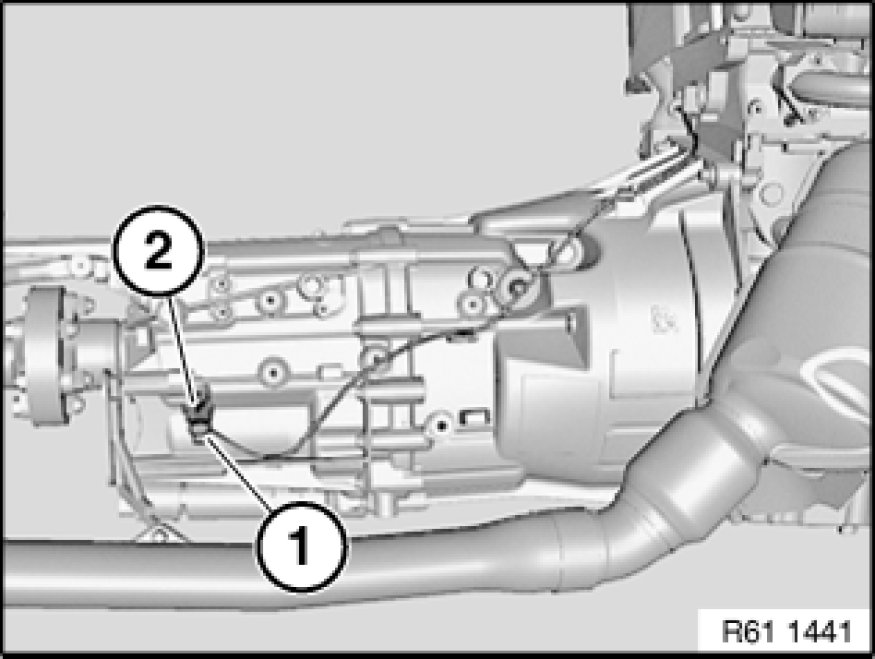

Version A:
Disconnect plug connection (1).
Release switch for reversing light (2).
Tightening torque 61 31 2AZ. Specifications

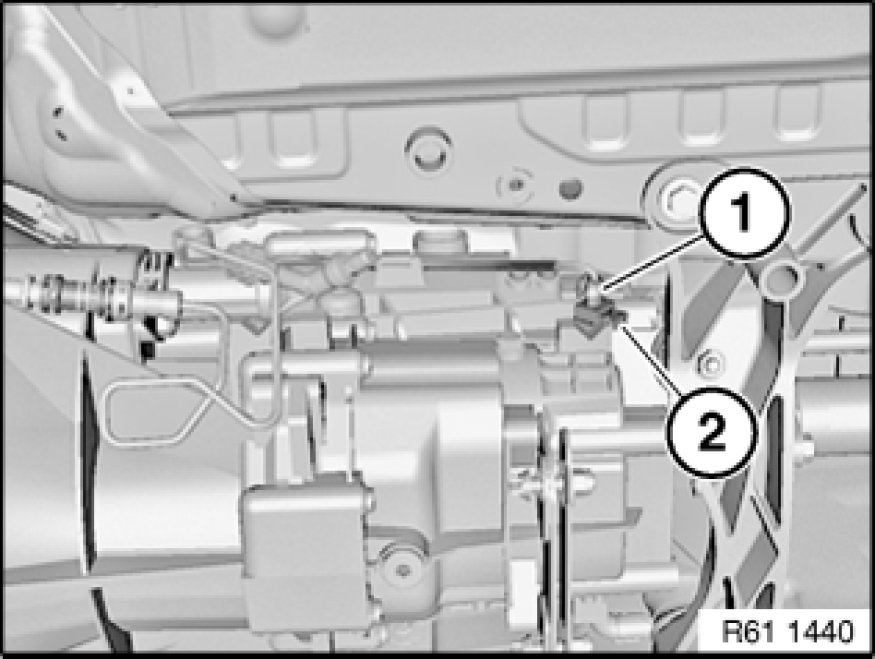

Version B:
Disconnect plug connection (1).
Release switch for reversing light (2).
Tightening torque 61 31 2AZ. Specifications
