Tire Pressure Monitor Antenna: Service and Repair

36 11 115 - Removing and installing/replacing RDC receiving aerial





Necessary preliminary tasks:
- Remove underbody panelling Removing and Installing/Replacing Rear Underbody Protection

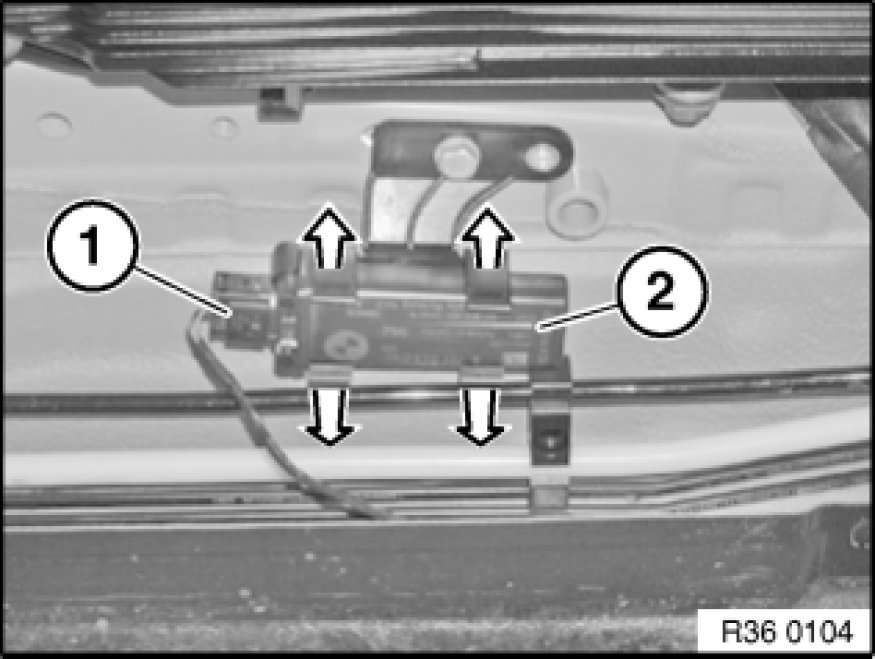

Disconnect plug connection (1).
Gently press retaining tabs apart in direction of arrow and remove receiving aerial (2).
After installation:
- Carry out resetting of RDC 36 11 503 Resetting RDC (Tire Pressure Control)
