Removing and Installing/Replacing Front Controller

61 31 195 - Removing and installing (replacing) front controller





Necessary preliminary tasks:
- Remove trim for storage compartment 51 16 212 Removing and Installing Trim for Storage Compartment
- Replacement only: Remove knob for controller Replacing Knob for Controller

Important!
Risk of damage
Install knob for controller only when controller is installed.

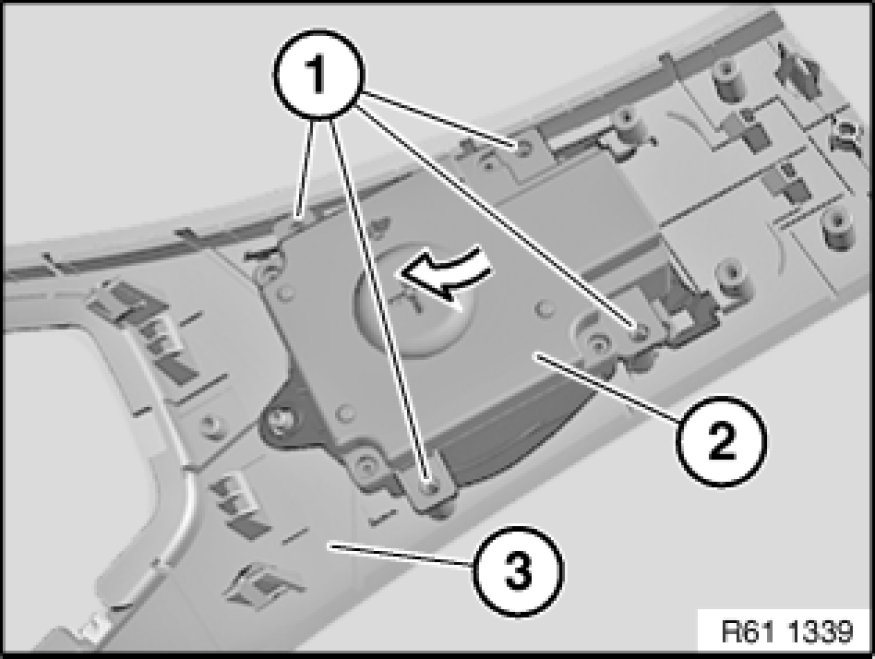

Release screws (1).
Feed controller (2) in direction of arrow out of trim (3) and remove.





Replacement:
Carry out programming/coding Programming and Relearning.
