61 31 195 Removing and Installing (Replacing) Front Controller (From 09/2008)

61 31 195 Removing And Installing (Replacing) Front Controller (From 09/2008)







IMPORTANT:
Risk of damage.
Before dismantling it is imperative to note whether the controller is installed with a version before or after 09/2008.

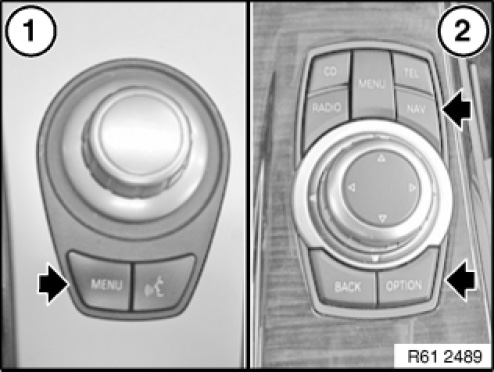

NOTE: The number of buttons and shape of controller can vary depending on vehicle type.

Before 09/2008: Controller (1) has buttons on bottom only.
After 09/2008 : Controller (2) has buttons top and bottom.

NOTE: These repair instructions describe the removal and installation (replacement) of controller (2).







IMPORTANT:
Risk of damage.
The button for the controller must not be removed.







Necessary preliminary tasks:
- Remove cover for storage compartment







IMPORTANT: Risk of damage.

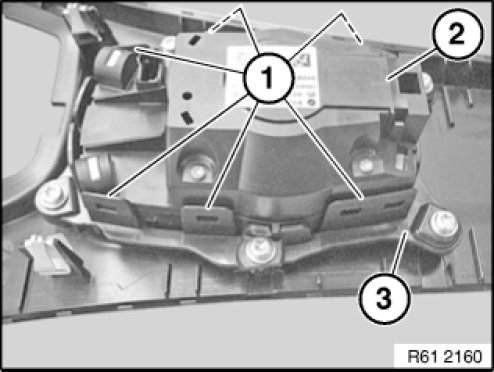

Carefully raise catches (1) on controller holder (3) and remove controller (2) towards top.

Installation note:
Make sure controller (2) is correctly engaged in controller holder (3).







Replacement:
Carry out programming/encoding.
