64 50 ... Install the Retrofit Absorber For the Air Conditioning Suction Line

64 50 ... Install The Retrofit Absorber For The Air Conditioning Suction Line







The retrofit kit may be used for vehicles with a production date from 09/2008.







IMPORTANT: The retrofit kit with part number 6 987 991 may no longer be used.







Necessary preliminary work:
Remove rear underbody protection

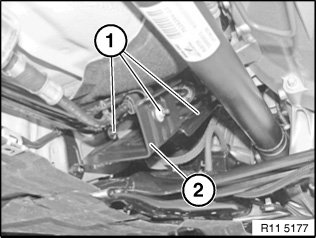

Unscrew nuts (1).
Remove the protective plate (2).

NOTE: Figure All-wheel drive vehicle

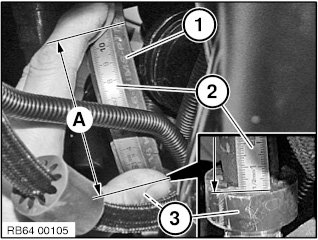

Lay the steel measuring tape (2) onto the intake pipe (1).

IMPORTANT: The steel measuring tape (2) must be flush with the bottom of the rubber ring (3).

Mark distance A =11 cm.







Attach the lower edge of the vibration absorber (1) at the marked position and screw it to the intake pipe (2).
Tightening torque: 8 Nm
