Home >> BMW >> 2011 >> 335is Convertible (E93) L6-3.0L Turbo (N54T) >> Repair and Diagnosis >> Heating and Air Conditioning >> Blower Motor Resistor >> Service and Repair

Blower Motor Resistor: Service and Repair




64 11 224 - Replacing controller for heater/air conditioner fan





Necessary preliminary tasks:
- Remove fan Service and Repair for heater/air conditioner

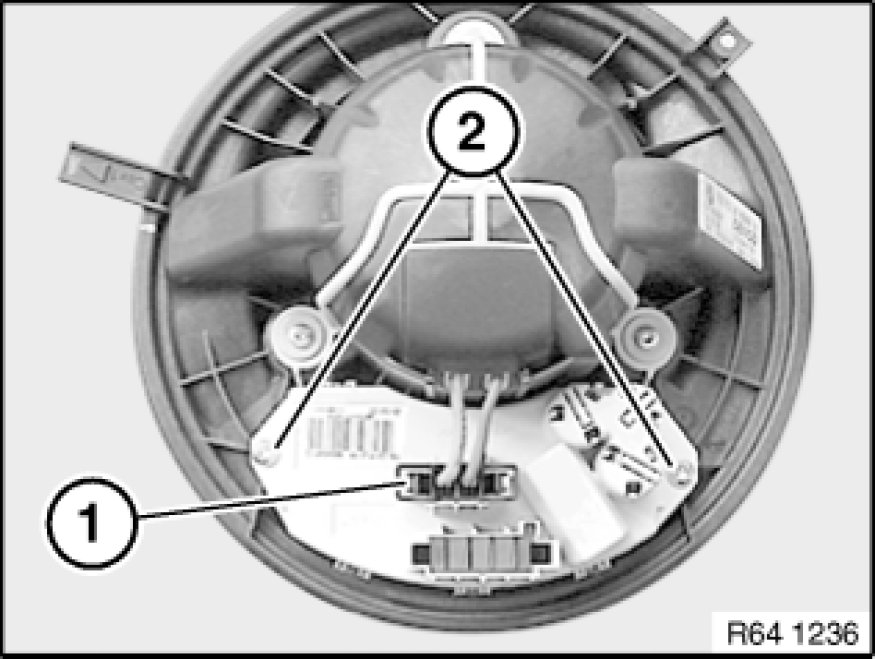

Disconnect plug connection (1).
Release screws (2) and remove controller.
