64 12 089 Removing and Installing/Replacing Muffler/Silencer

64 12 089 - Removing and installing or replacing muffler/silencer





Warning!
Scalding hazard!
Work on independent heating may only be carried out when it has cooled down.





Necessary preliminary tasks:
- Remove front bumper trim 51 11 156 Removing and Installing Front Bumper Trim

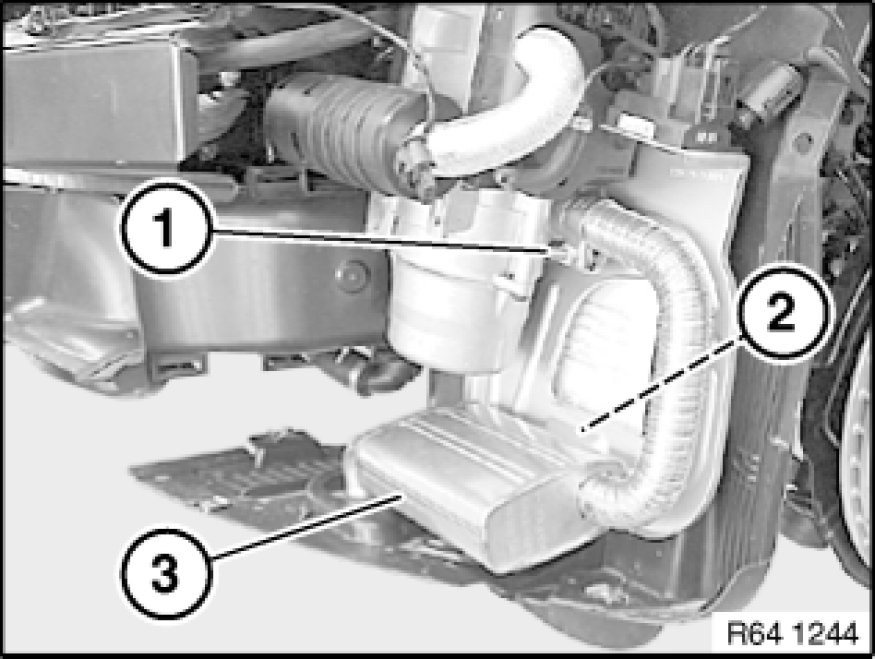

Release screws (1, 2) and remove muffler/silencer (3).
Tightening torque 64 12 1AZ Independent Heater.
