64 11 856 Removing and Installing/Replacing Servodrive for Central Kinematics (A/C Control)

64 11 856 - Removing and installing / replacing servodrive for central kinematics (A/C control)





Important!
Servomotors must be re-addressed in the event of replacement!
Addressing can only be carried out with the BMW diagnosis system.
Service functions:
- Body
- Heating and A/C function
- Flap motors
- Re-address flap motors





Necessary preliminary tasks:
- Remove right glovebox with housing 51 16 366 Removing and Installing Right Glovebox With Housing

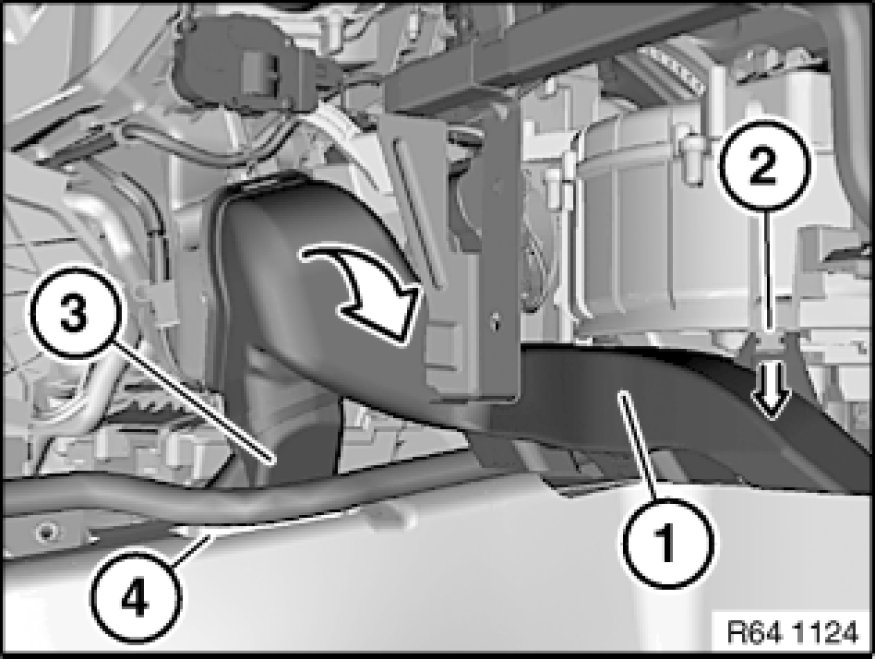

Detach right footwell heating duct (1) in area (2) in direction of arrow.
Detach right footwell heating duct (1) with adapter (3) from heater/air conditioner and remove in direction of arrow from right rear compartment heating duct (4).

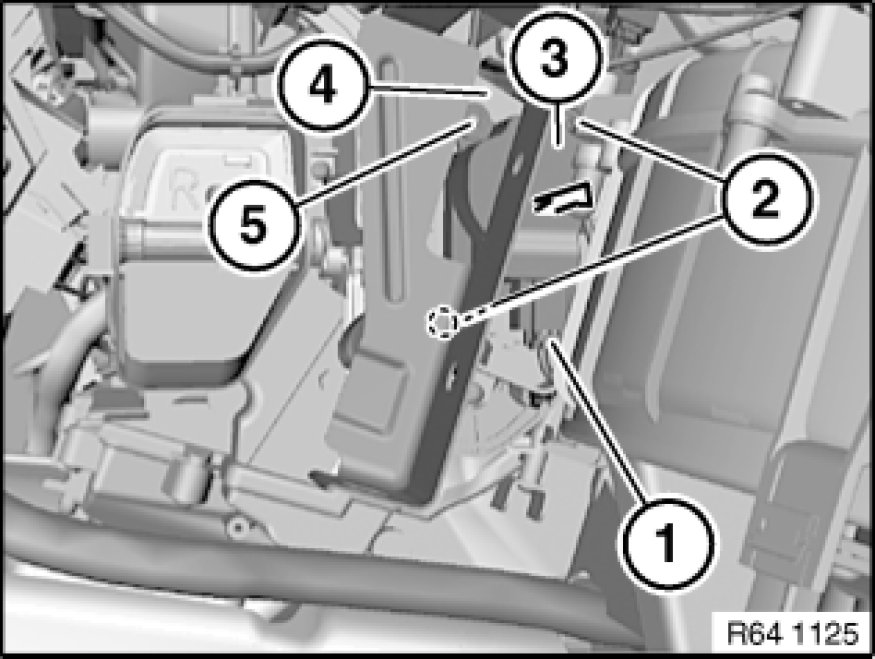

Unfasten plug connection (1) and disconnect.
Release screws (2).
Detach servodrive for central kinematics (3) in direction of arrow from heater/air conditioner (4).

Installation Note:
Place servodrive for central kinematics (3) over guide pin (5).
