64 11 850 Replacing Servodrive For Rear Compartment Flap

64 11 850 Replacing Servodrive For Rear Compartment Flap







IMPORTANT:
Servomotors must be re-addressed in the event of replacement.
Addressing can only be carried out with the BMW diagnosis system.

Service functions:
- Body
- Heating and A/C function
- Flap motors
- Re-address flap motors







Necessary preliminary tasks:
- Remove trim for instrument panel, bottom right

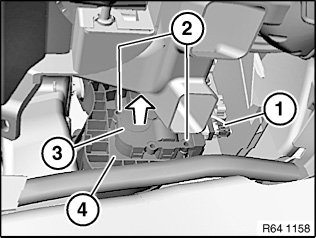

Unfasten plug connection (1) and disconnect.
Release screws (2).
Detach servodrive for rear compartment flap (3) in direction of arrow from heater/air conditioner (4).

Installation:
Place servodrive for rear compartment flap (3) exactly onto heater/air conditioner (4).
