64 11 839 Replacing Servodrive for Footwell Flap (Automatic A/C)

64 11 839 - Replacing servodrive for footwell flap (automatic A/C)





Important!
Servomotors must be re-addressed in the event of replacement!
Addressing can only be carried out with the BMW diagnosis system.
Service functions:
- Body
- Heating and A/C function
- Flap motors
- Re-address flap motors





Necessary preliminary tasks:
- Remove right glovebox with housing 51 16 366 Removing and Installing Right Glovebox With Housing





Detach right footwell heating duct (1) in area (2) in direction of arrow.
Detach right footwell heating duct (1) with adapter (3) from heater/air conditioner and remove in direction of arrow from right rear compartment heating duct (4).

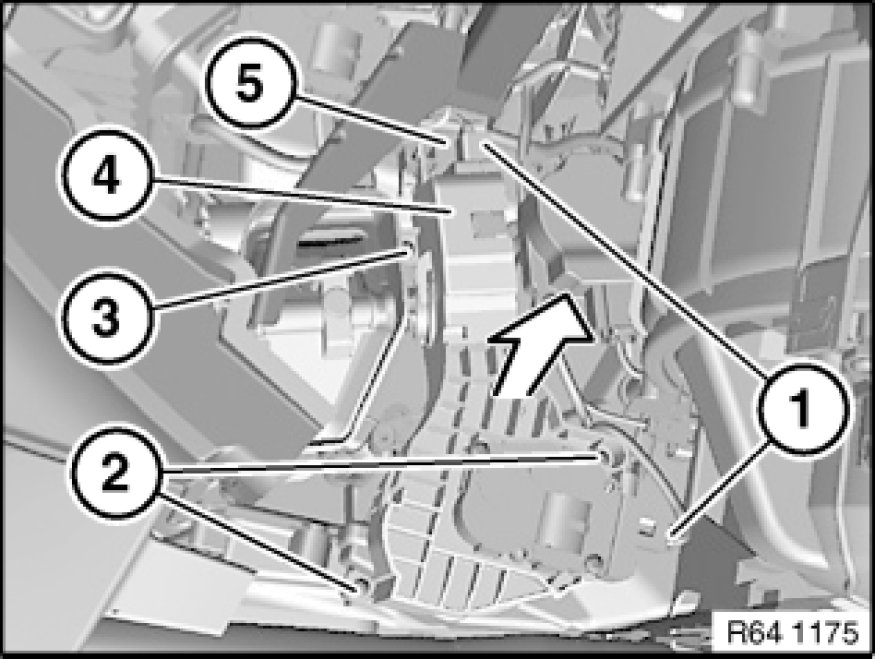

Disconnect plug connection (1).
Release screws (2) and (3).
Detach bracket (4) complete with servodrives from heater/air conditioner (5).

Installation Note:
Make sure bracket (4) is correctly seated on heater/air conditioner (5).

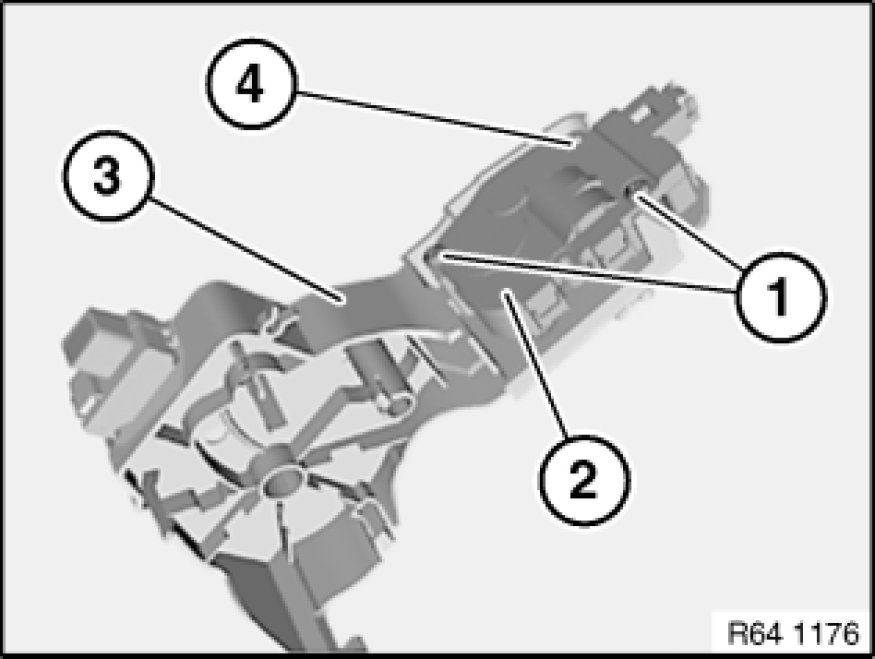

Release screws (1).
Remove servodrive for footwell flap (2) from bracket (3).

Installation Note:
Place servodrive for footwell flap (2) over guide pin (4).
