Removing and Installing/Replacing Ignition Coil Cover

11 00 Removing and installing/replacing ignition coil cover (N54, N54T)





Necessary preliminary work:
^ Remove microfilter housing
^ E60/E61 only: Remove trailing link

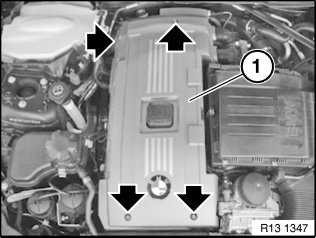

Release screws.

Tightening torque 11 12 7AZ.

Remove ignition coil cover (1) towards top.

Note:
For purposes of improved clarity, illustration and descriptions shows wiring harness and trailing link removed.
