Replacing Right Engine Mount

22 11 001 - Replacing right engine mount (N54)





Necessary preliminary tasks:
- Secure engine in installation position Securing Engine In Installation Position
- Remove underbody protection
- Release tie rod 32 21 231 Replacing (Removing and Installing) Left or Right Tie Rod on steering gear
- Remove right V-strut 51 61 011 - Removing and installing/replacing V-strut, front axle carrier, left or right (E93 only)

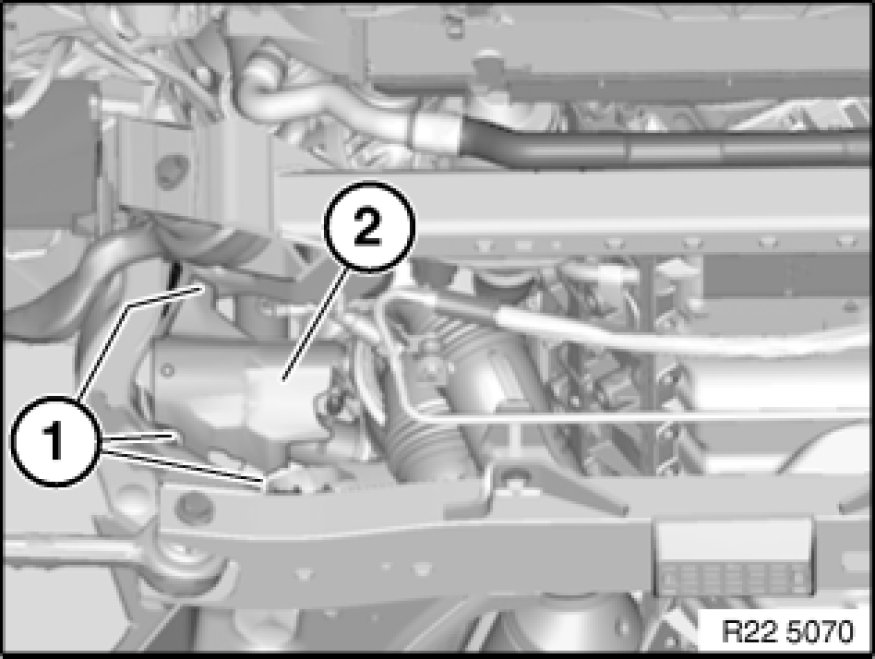

Release bolts (1).
Remove heat shield (2).

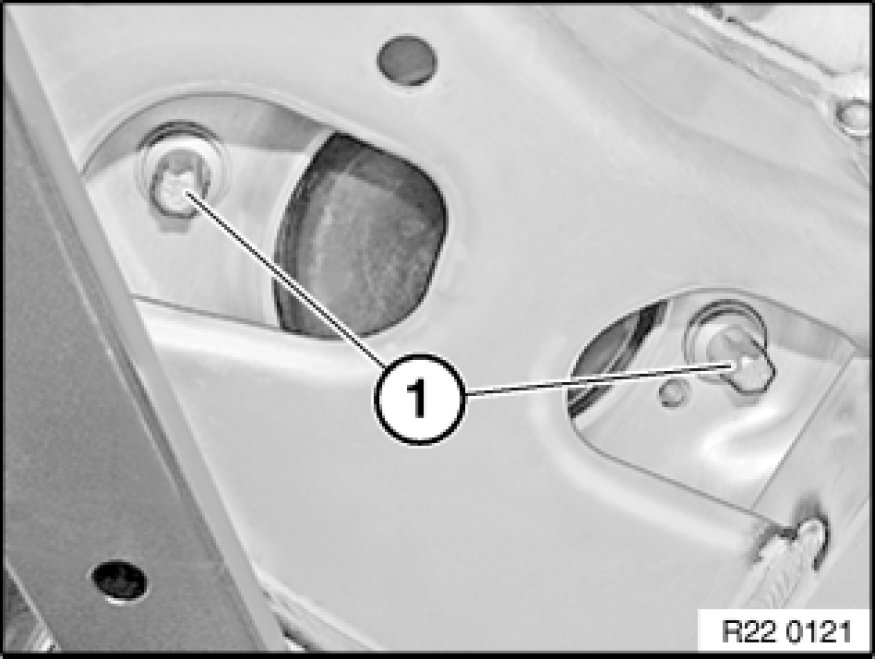

Release bolts (1) and remove engine mount towards front.
Tightening torque 22 11 1AZ Specifications.






Installation:

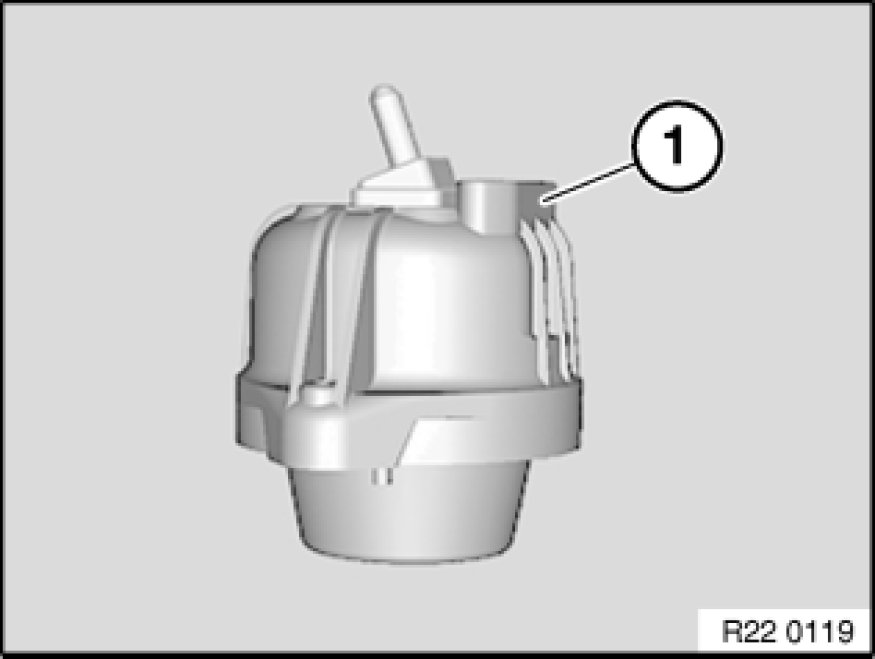

Make sure rubber (1) is correctly located.





Installation:

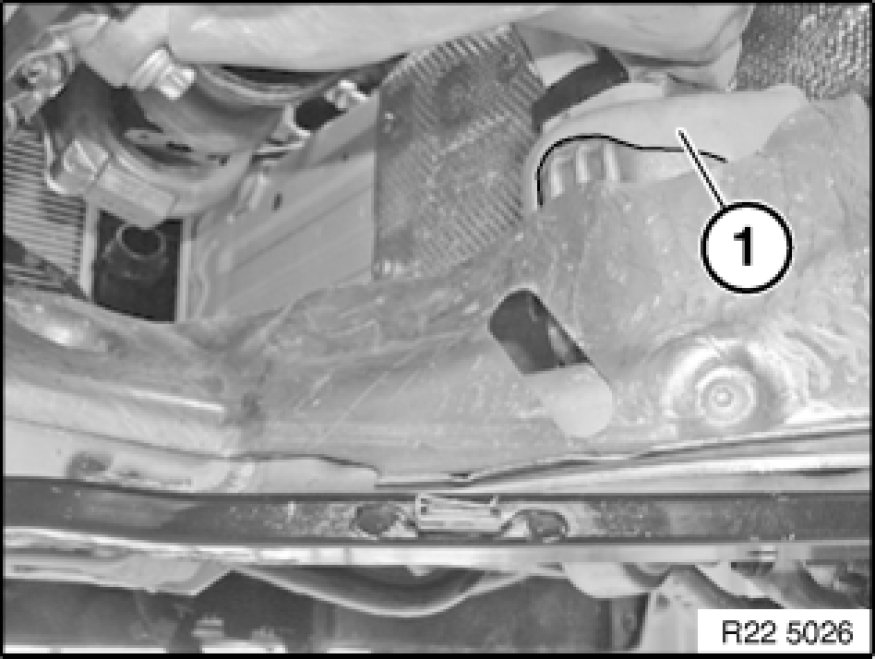

Rubber section (1) of engine mount must point to middle of vehicle.
Engine mount designations:
Right engine mount
- Even component number
Left engine mount
- Odd component number
