Removing and Installing/Replacing Both Radiator Brackets

17 11 063 Removing and installing/replacing both radiator brackets (N54, N54T, N52, N52K, N51, N53)







Necessary preliminary tasks:
- Remove capacitor
- Remove cooling loop for hydraulic steering

NOTE: Texts refer to and illustrations show the left side. The procedure is identical for the right intake duct.

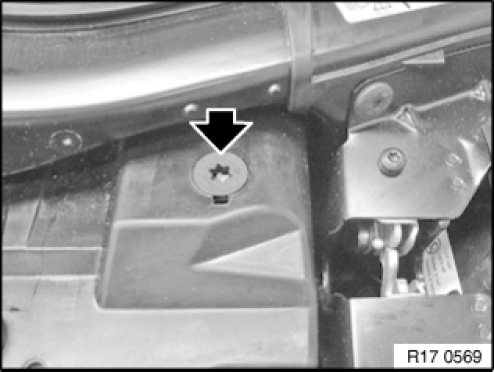

Release screw.

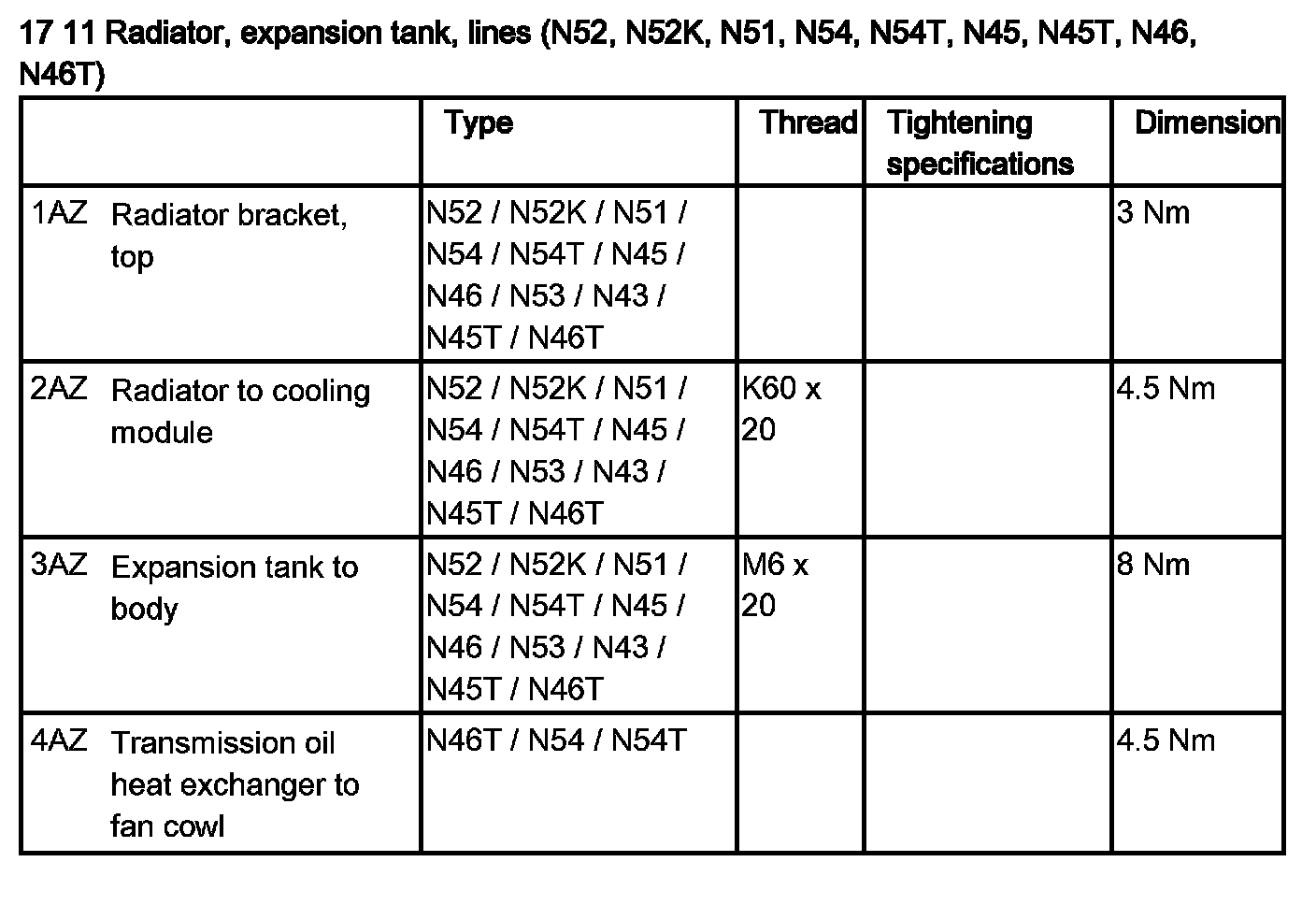

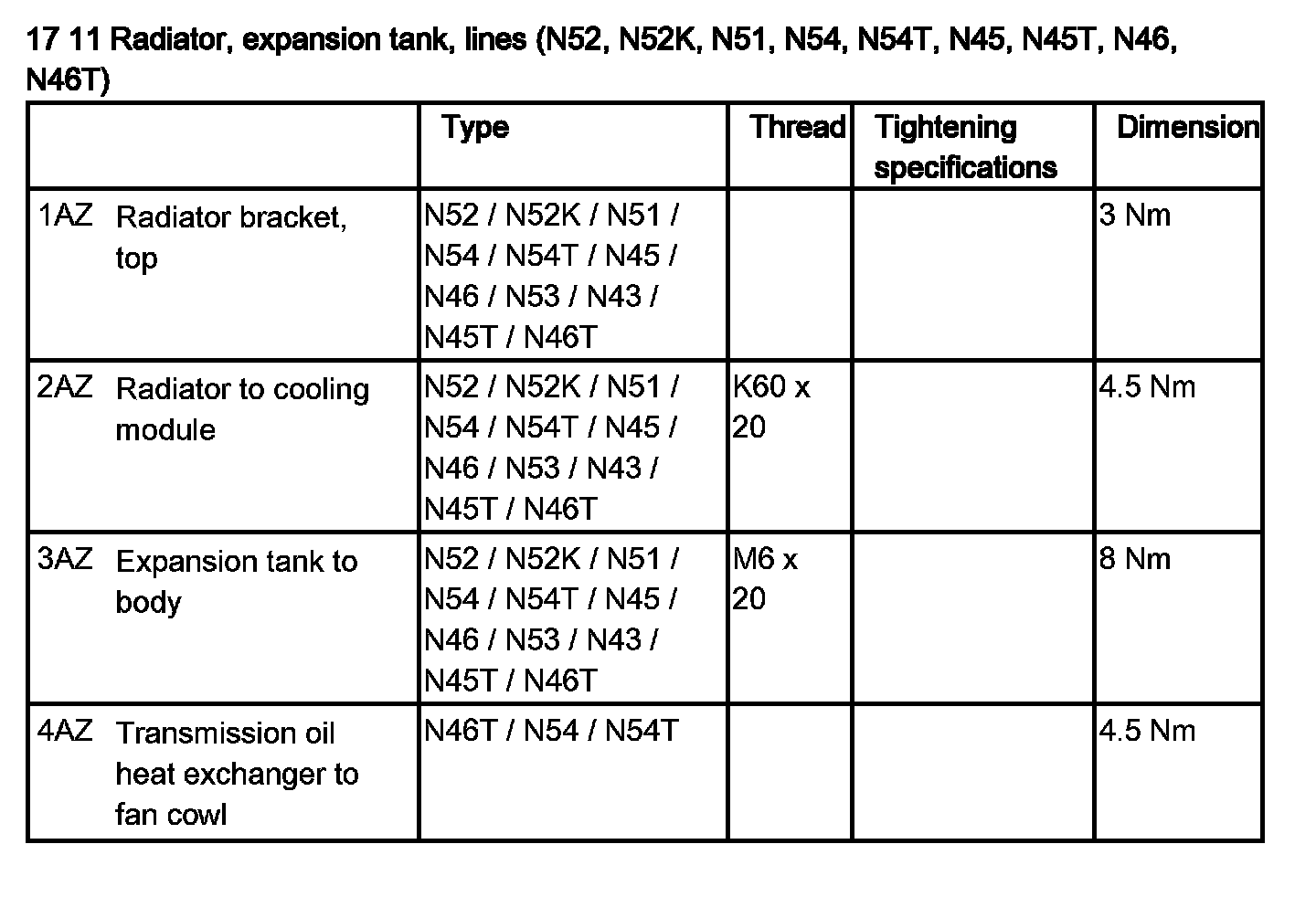

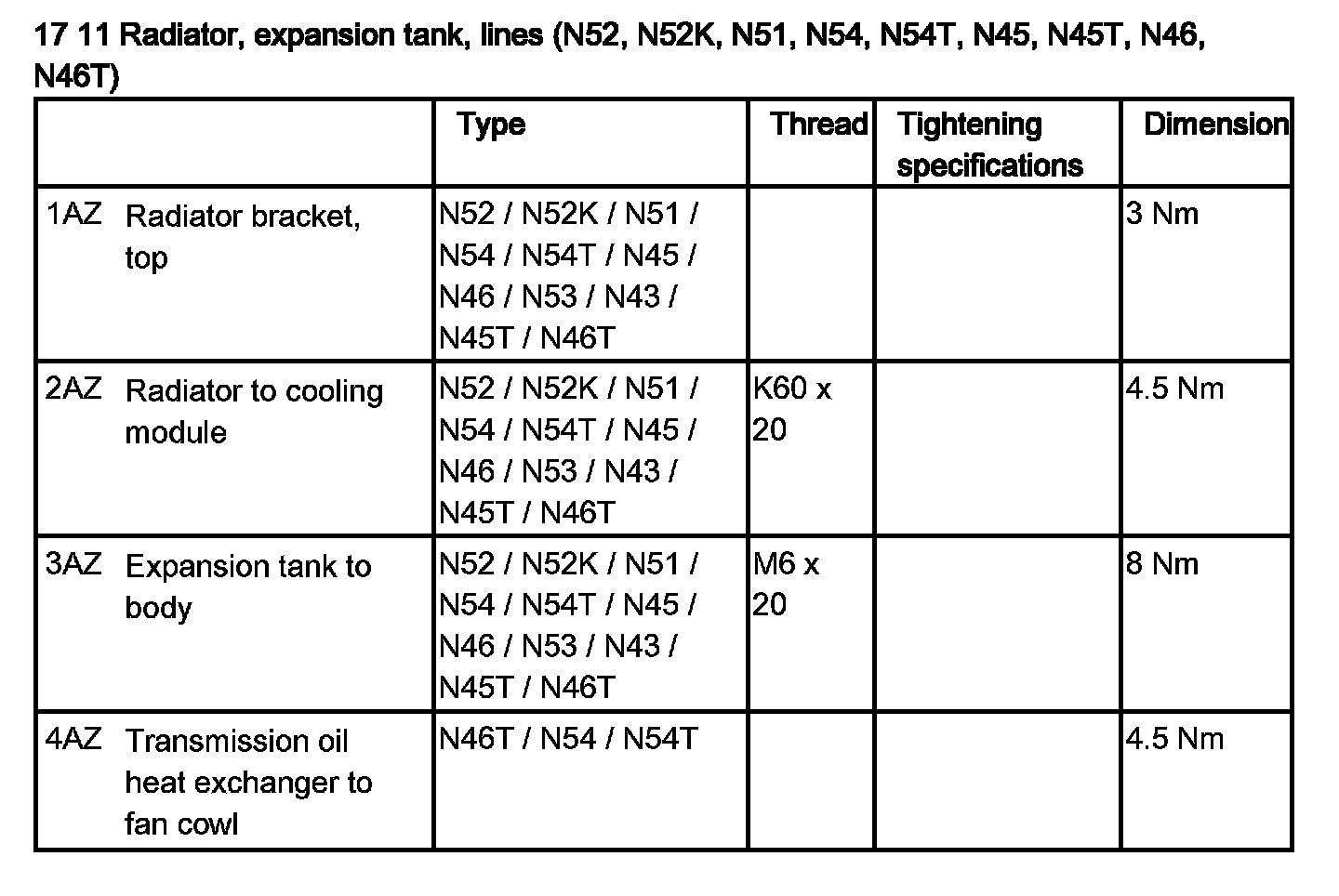

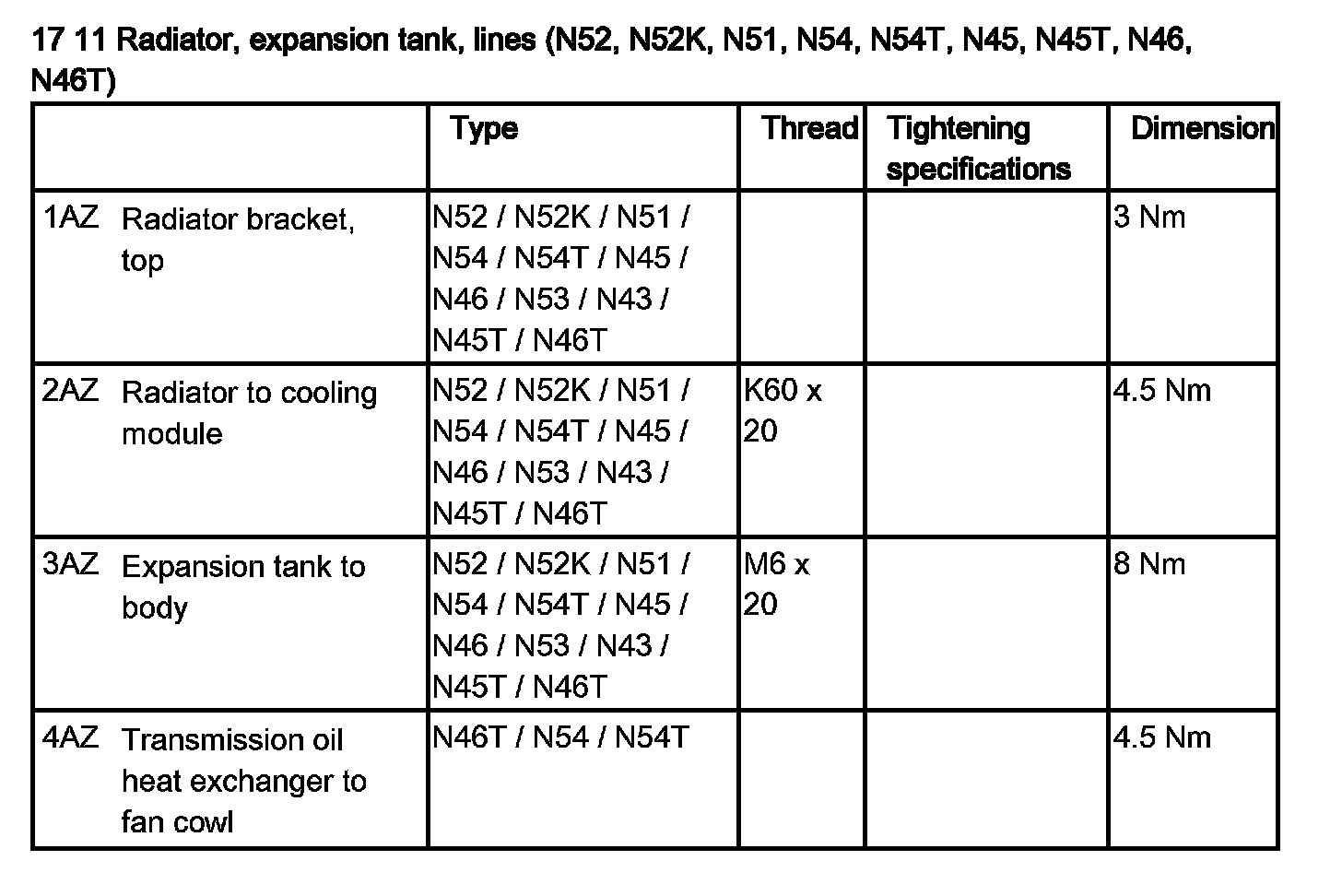

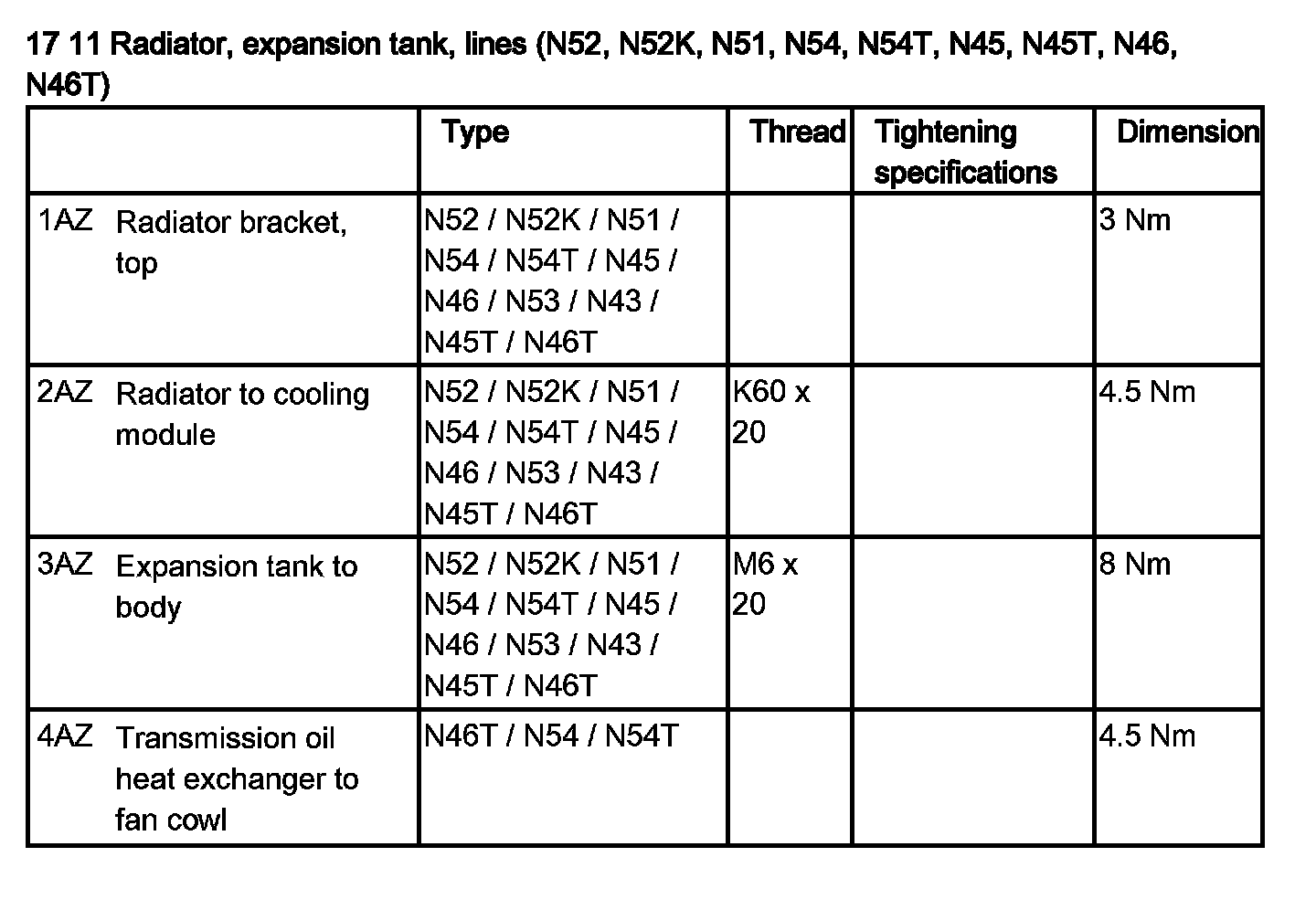

Tightening torque 17 11 1AZ.

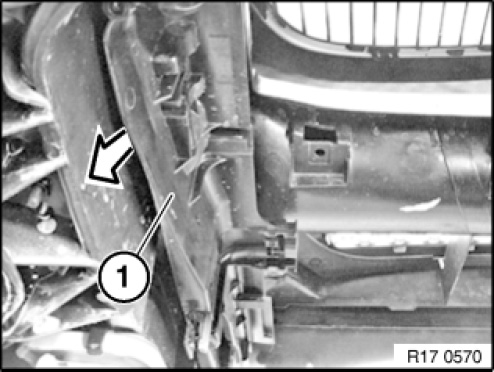

Remove holder (1).
