Steering
>>
System Diagram
>>

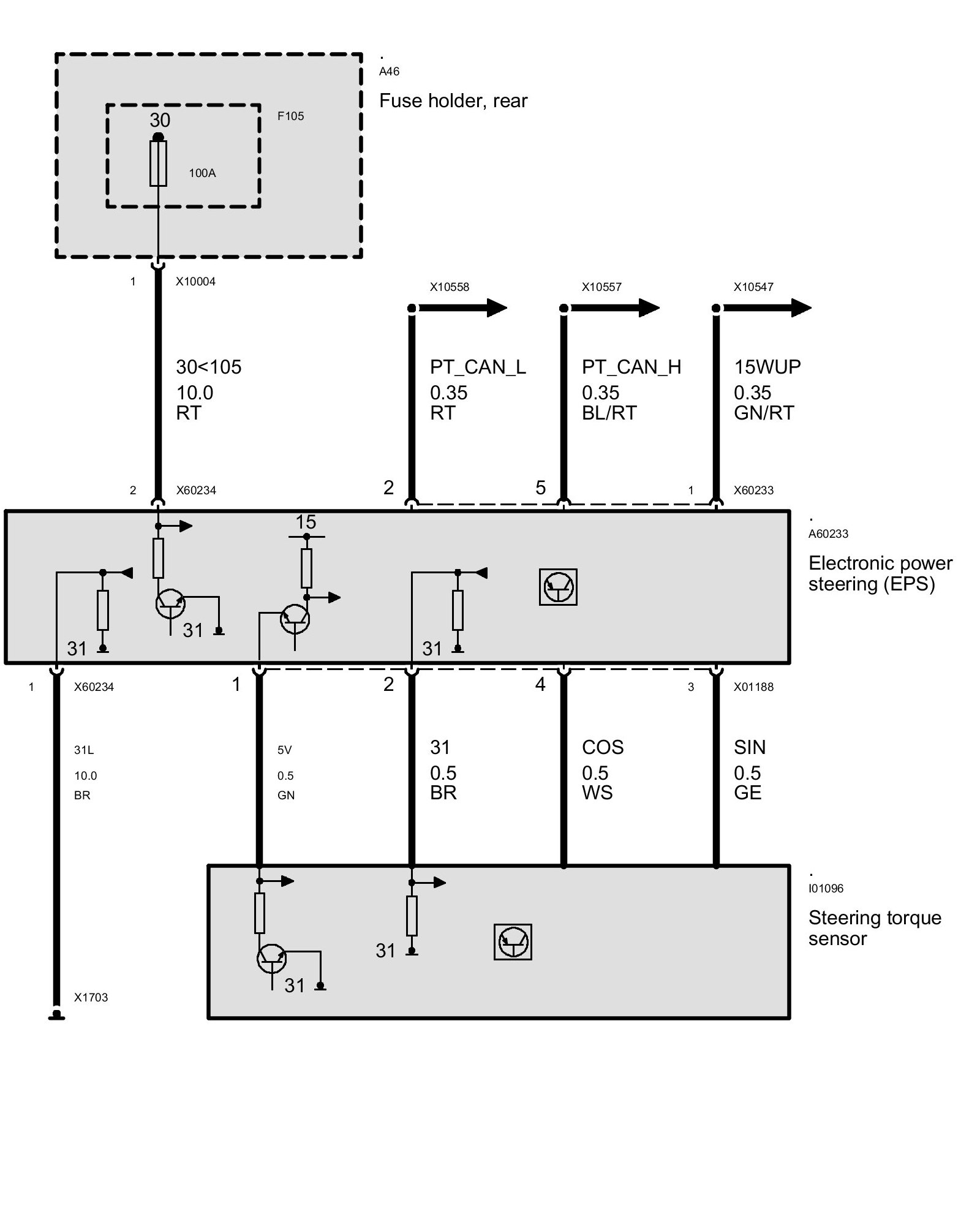

Control Unit, Electric Power Steering (EPS)
Control Unit, Electric Power Steering (EPS)
Control Unit, Electric
Power Steering
(EPS)
Up to 09/06
As of 09/06
