Home
>>
BMW
>>
2011
>>
335is Convertible (E93) L6-3.0L Turbo (N54T)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Power Locks
>>
Power Supply, CA Comfort Access System
Power Supply, CA Comfort Access System
Power Supply, CA Convenient Access System

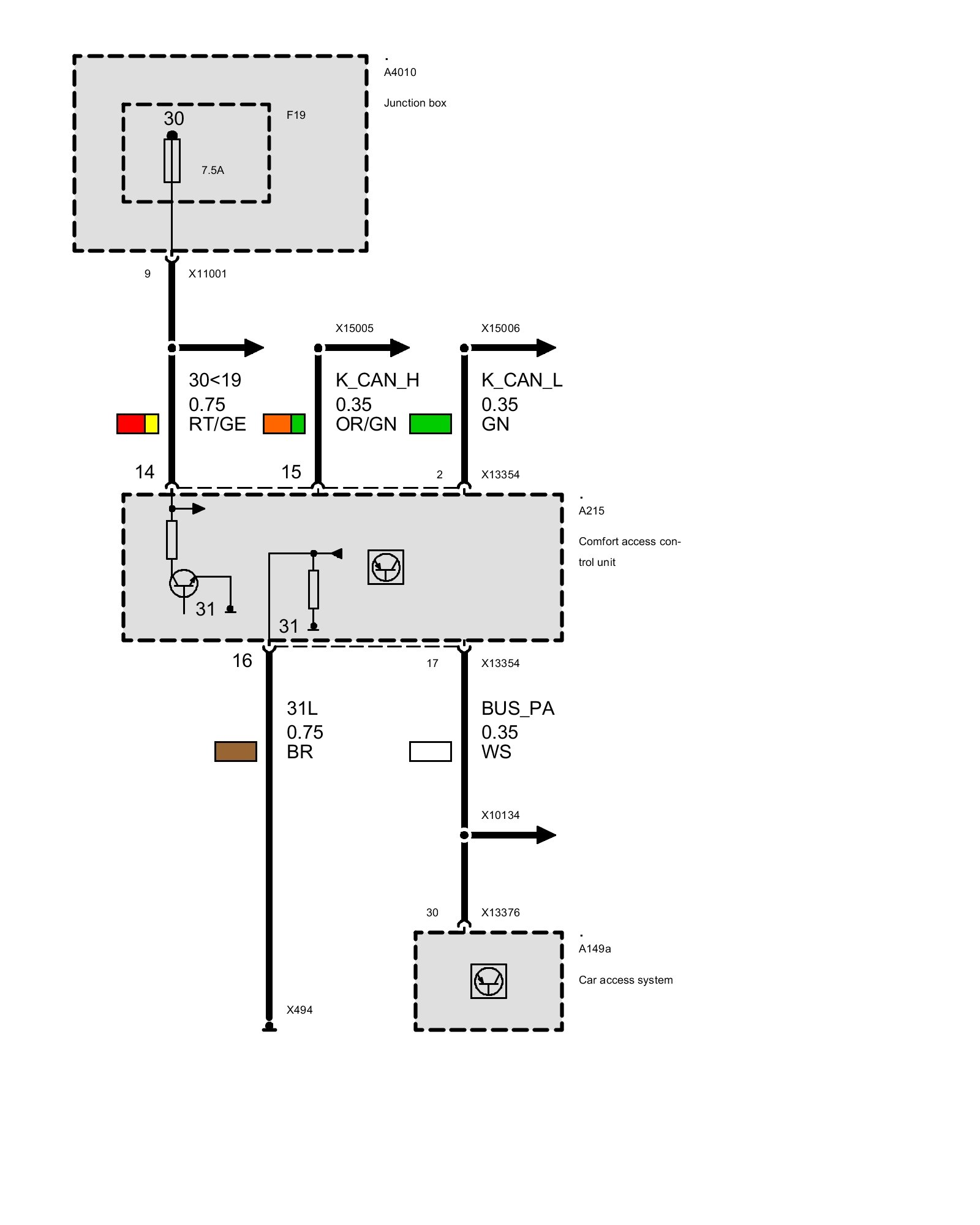

Up to 03/07

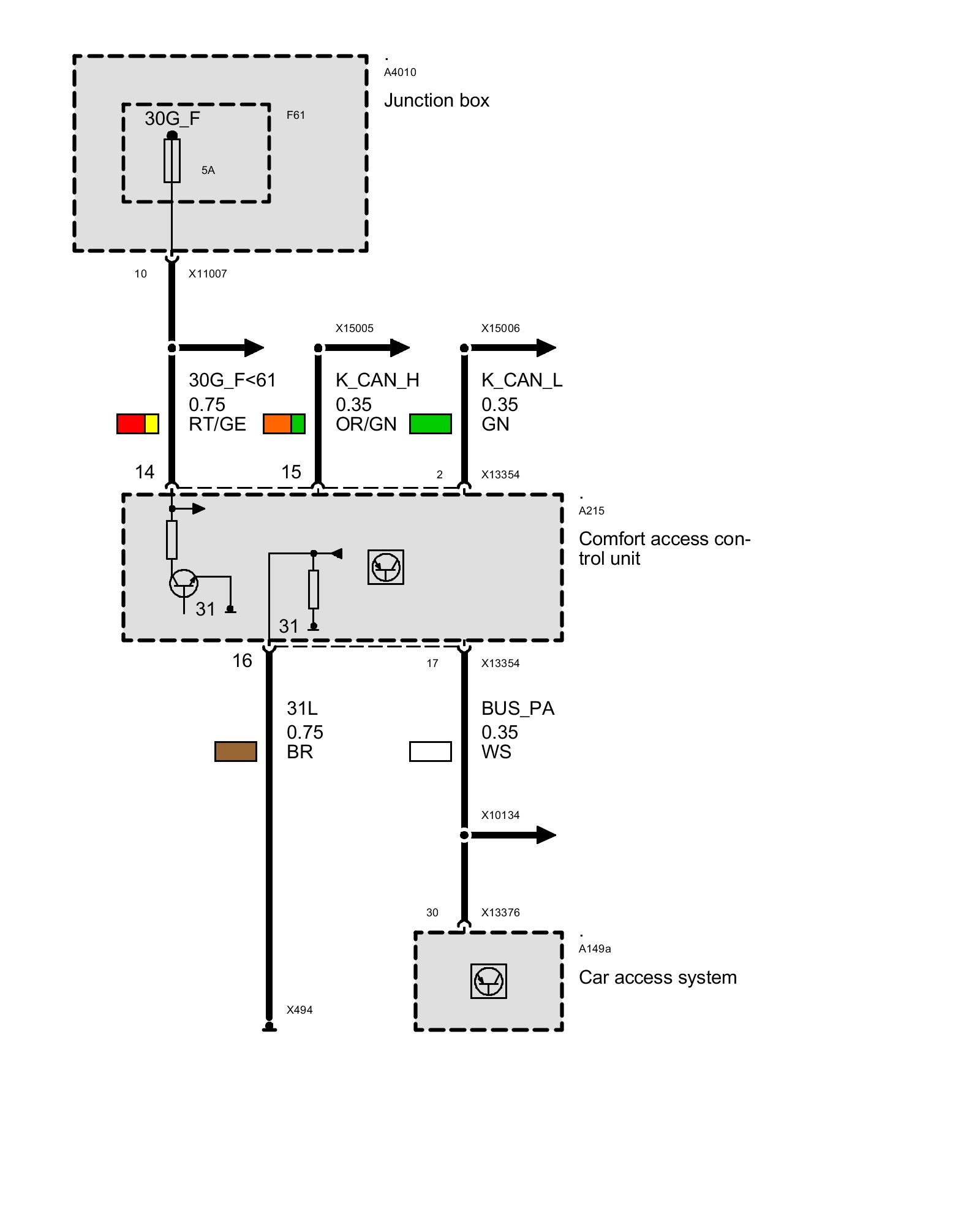

As of 03/07

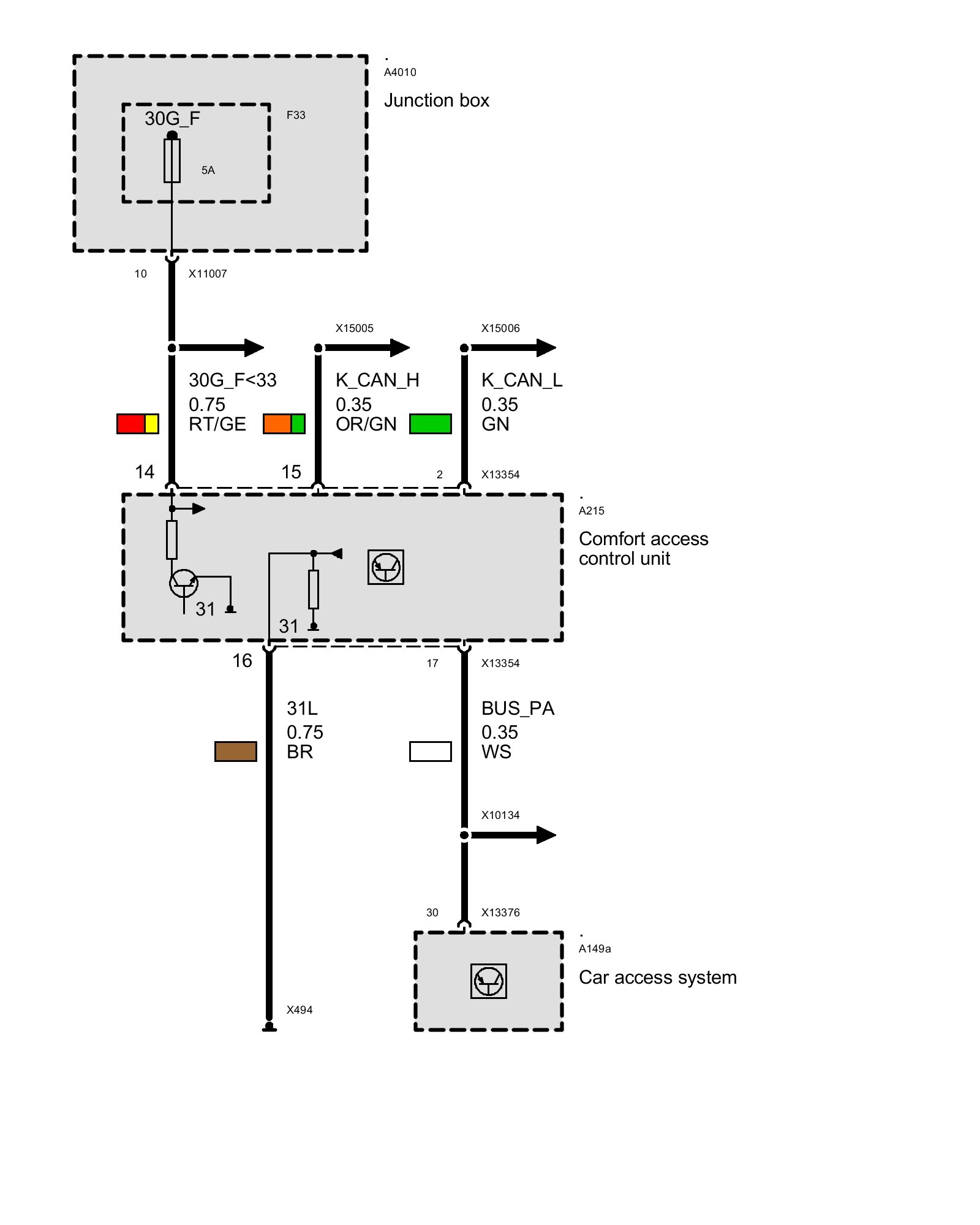

As of 09/07
