FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
BMW
>>
2011
>>
335is Convertible (E93) L6-3.0L Turbo (N54T)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Lighting and Horns
>>
Backup Lamp

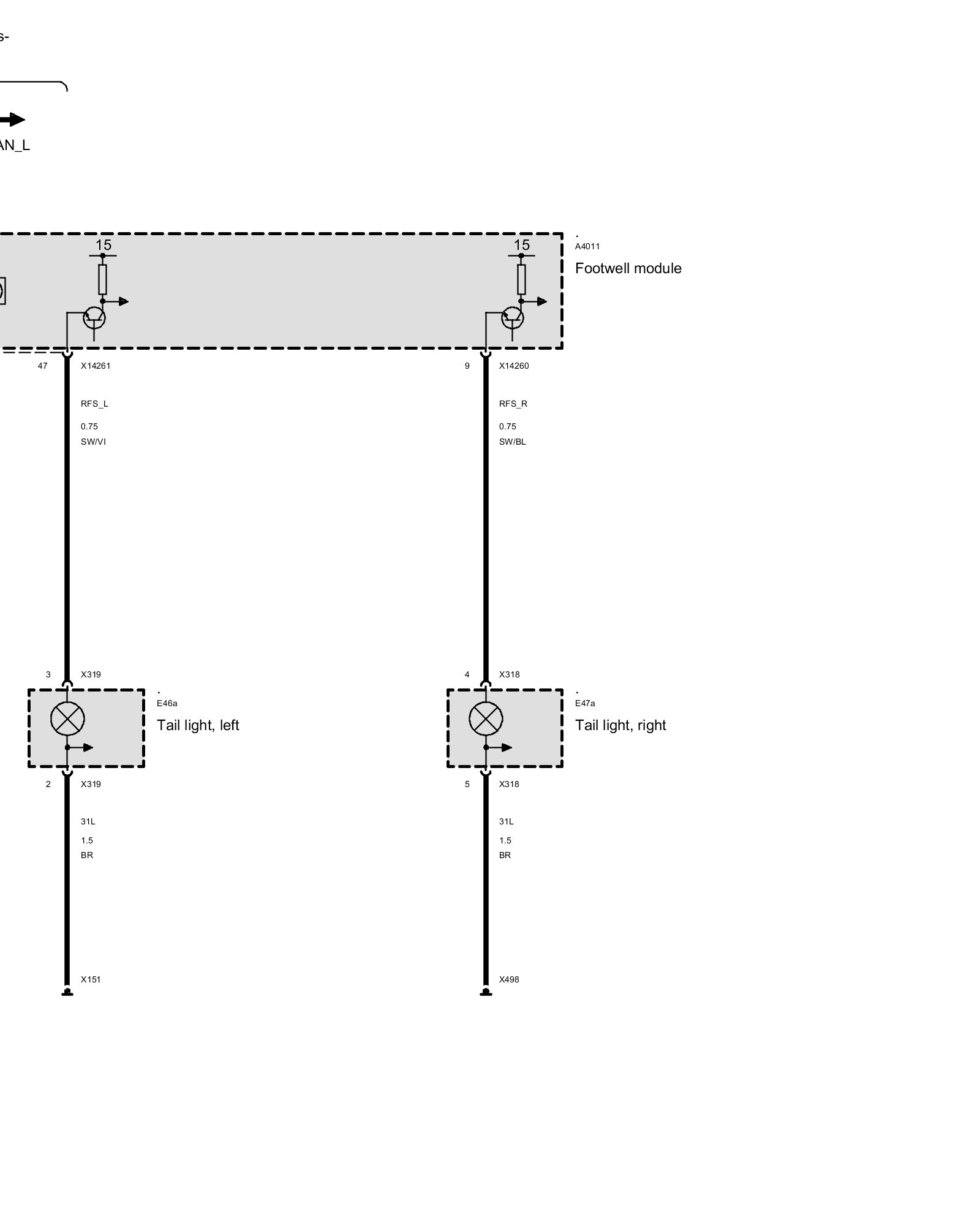

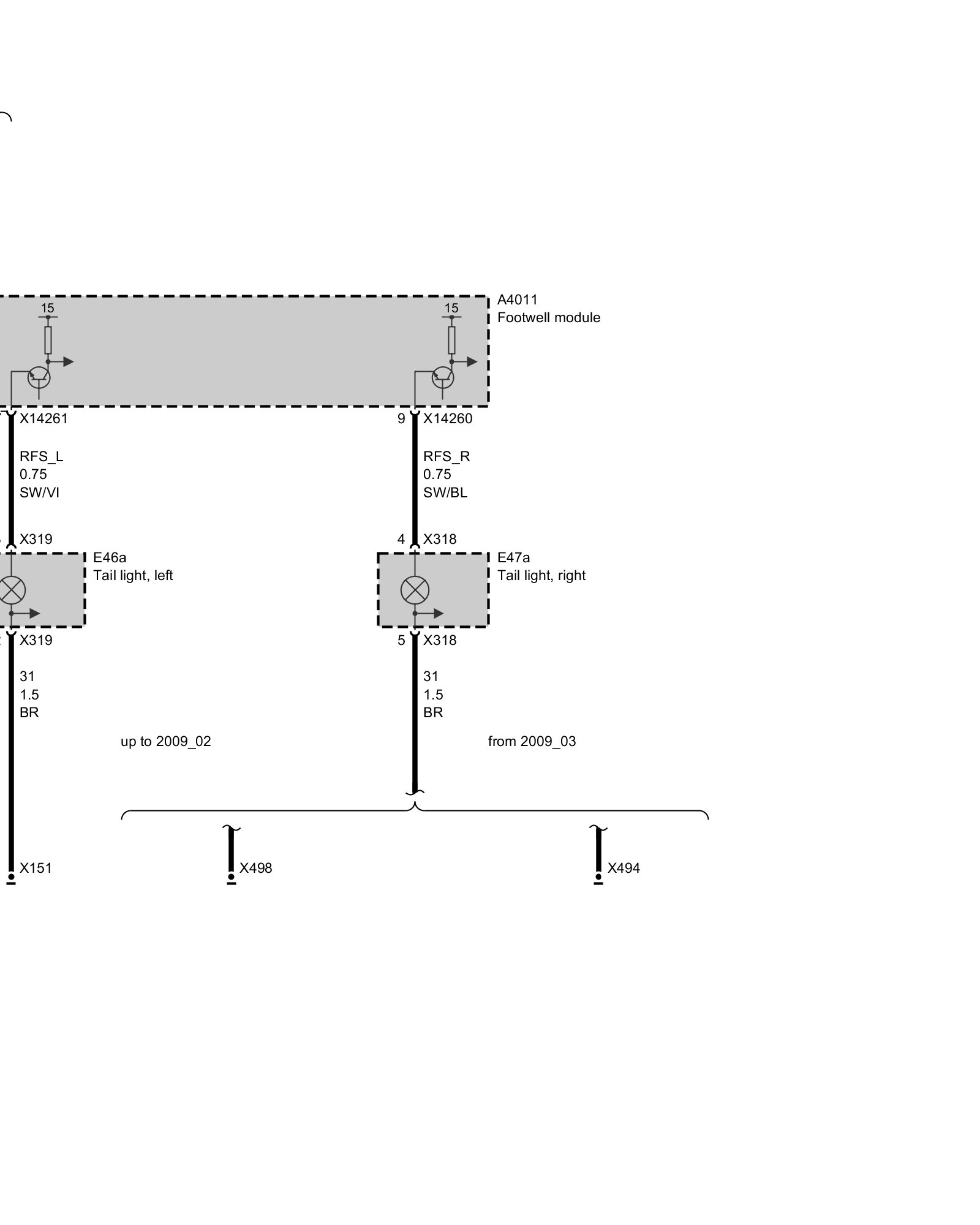

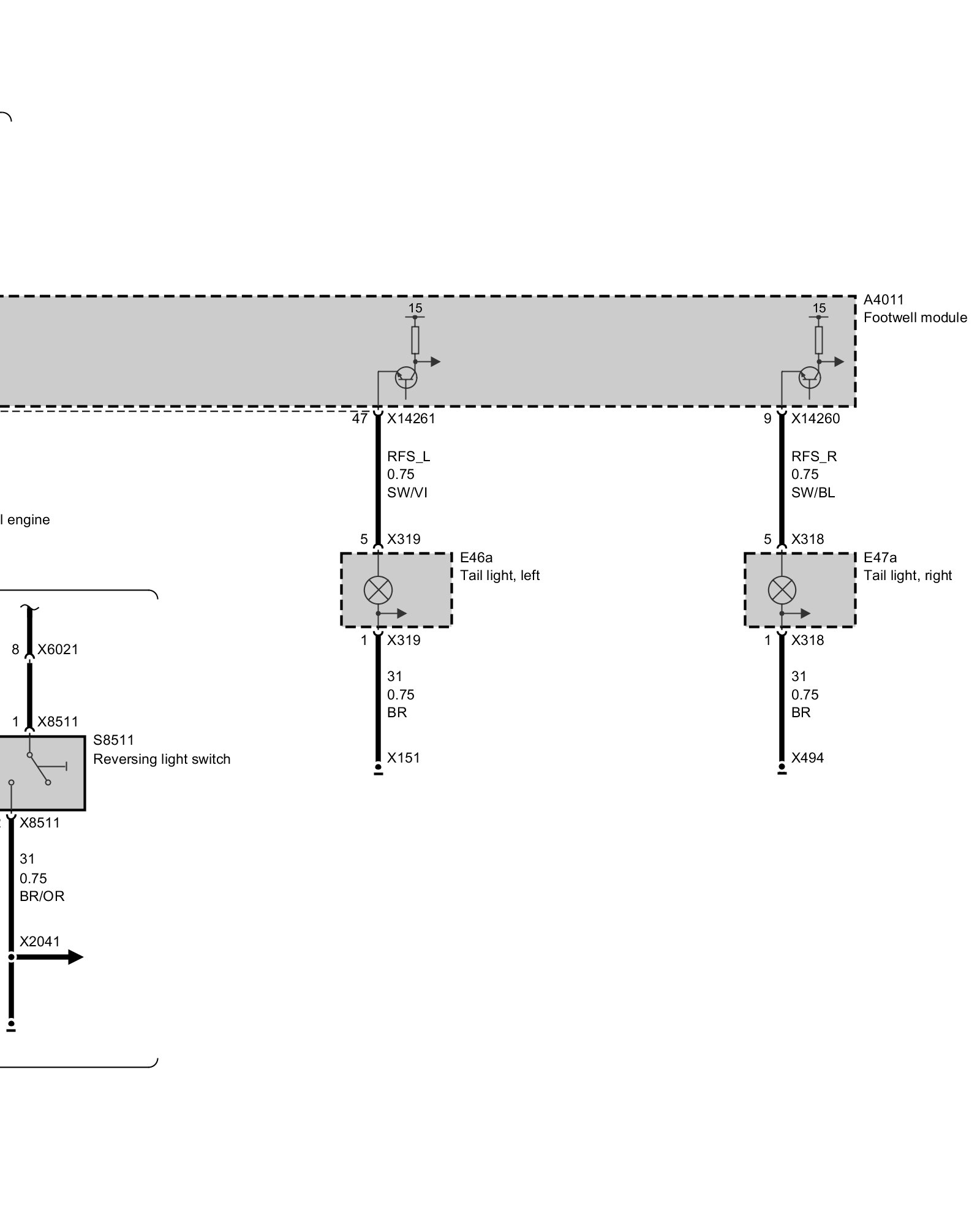

Backup Lamp

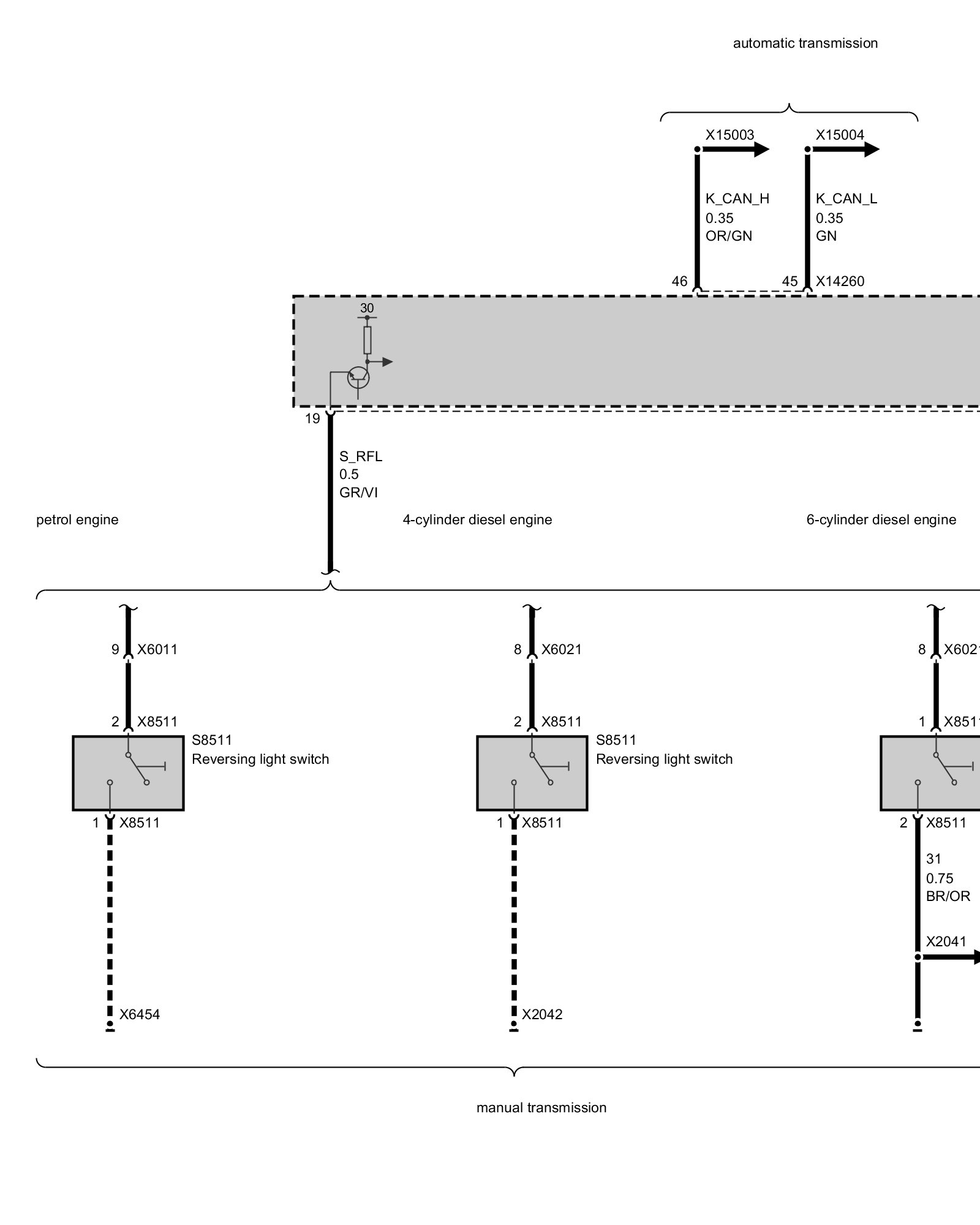

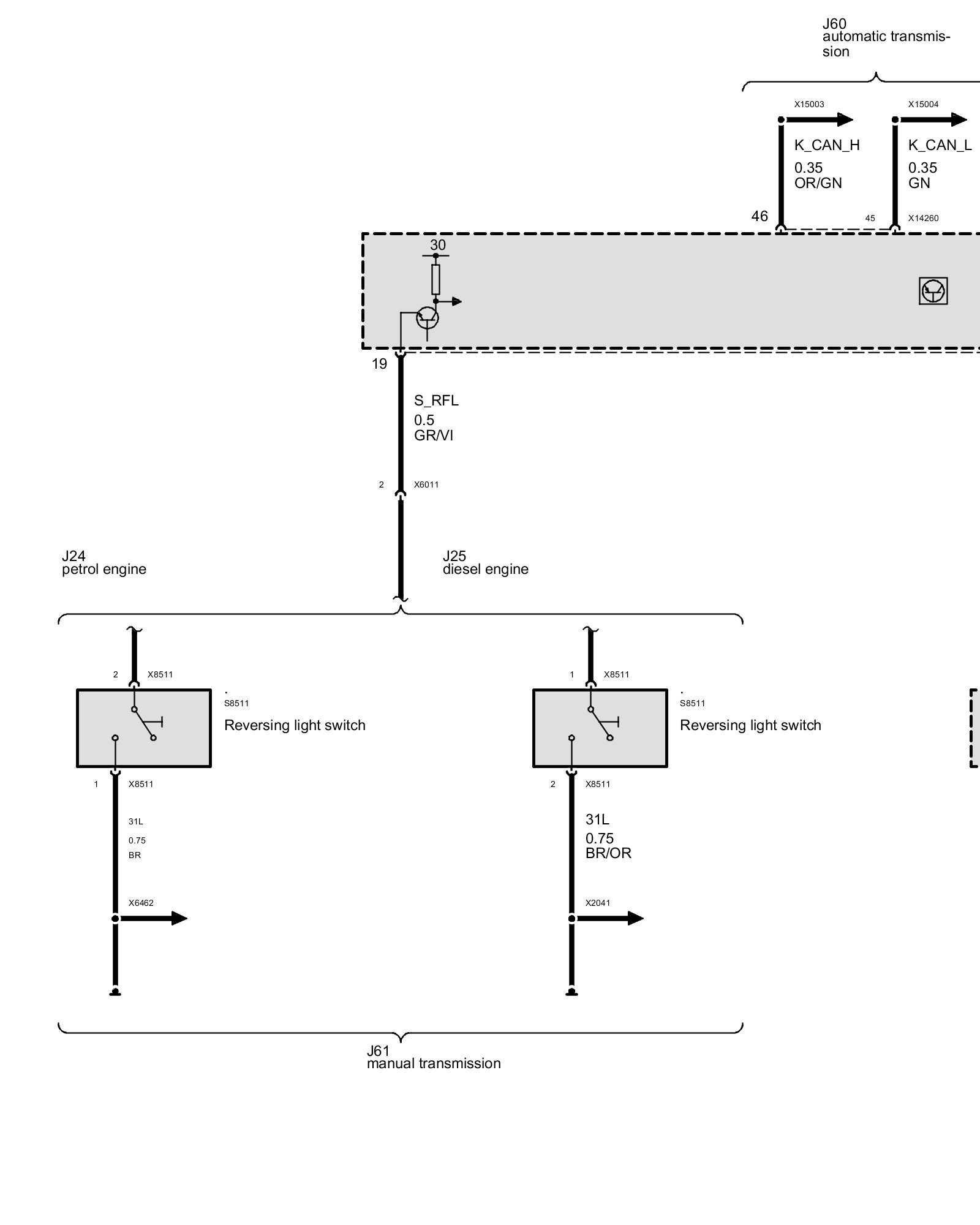

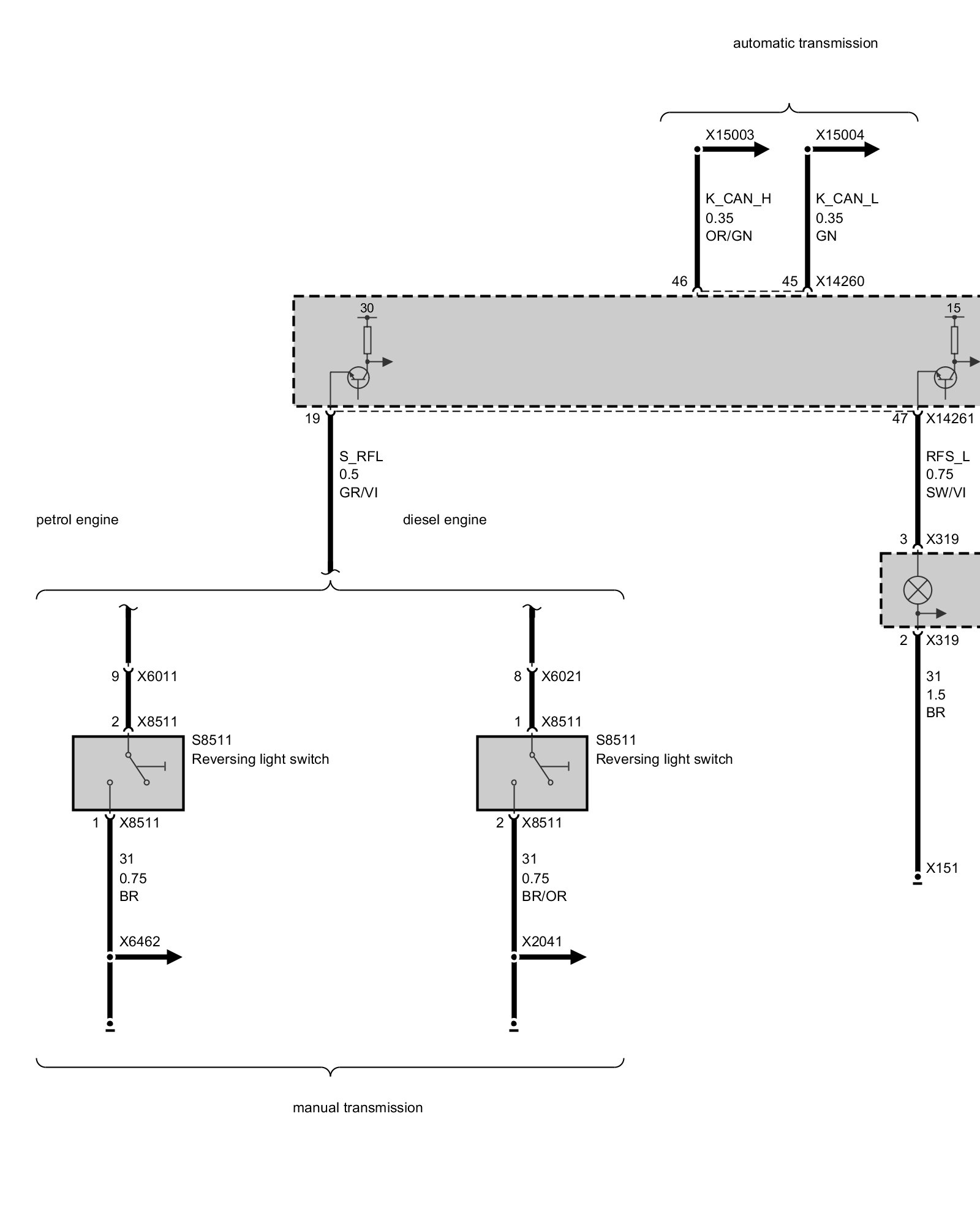

Reversing Lights
As of 09/06 Up to 03/07
As of 03/07 Up to 09/08
As of 09/08
