Remote Control



Remote Control

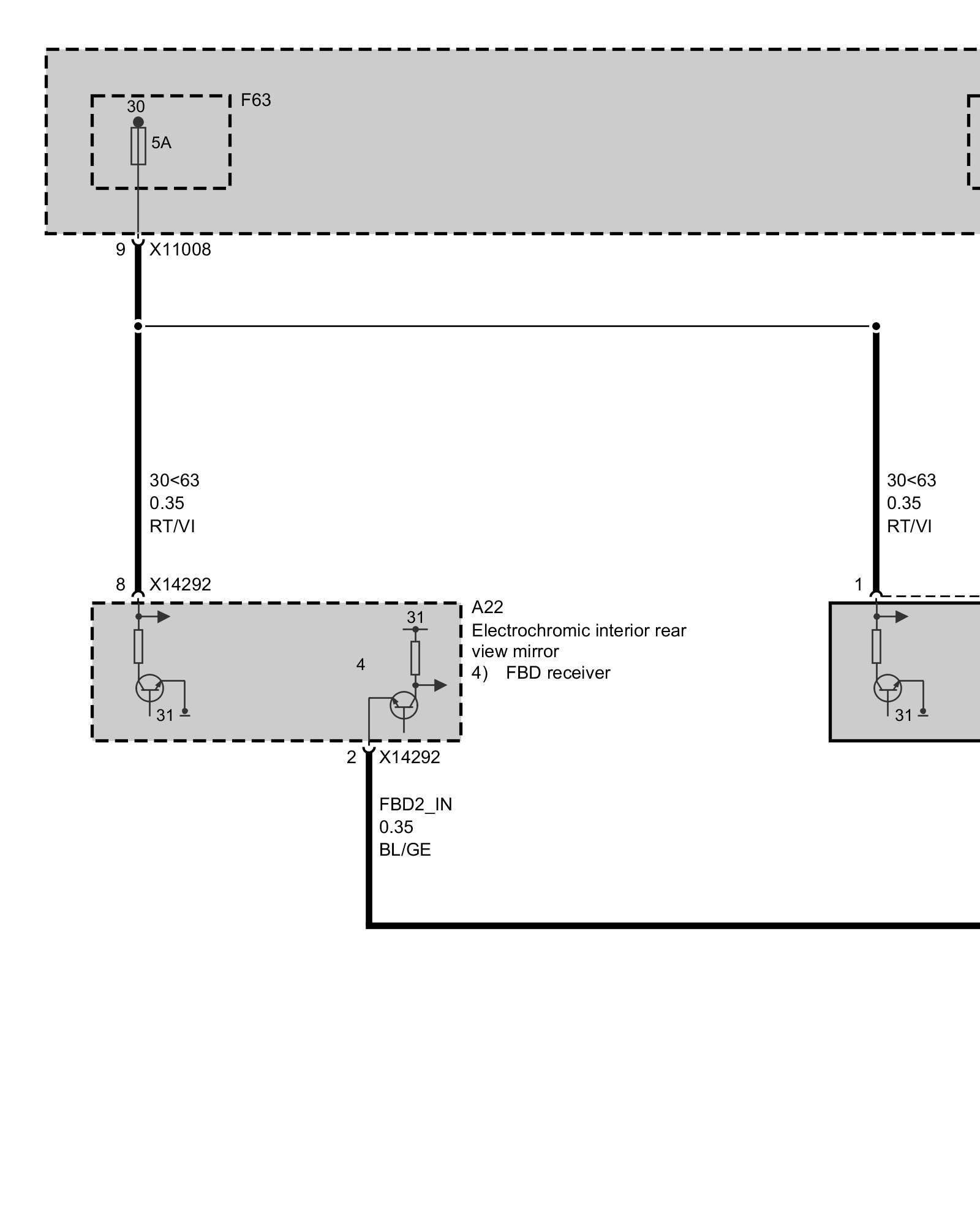

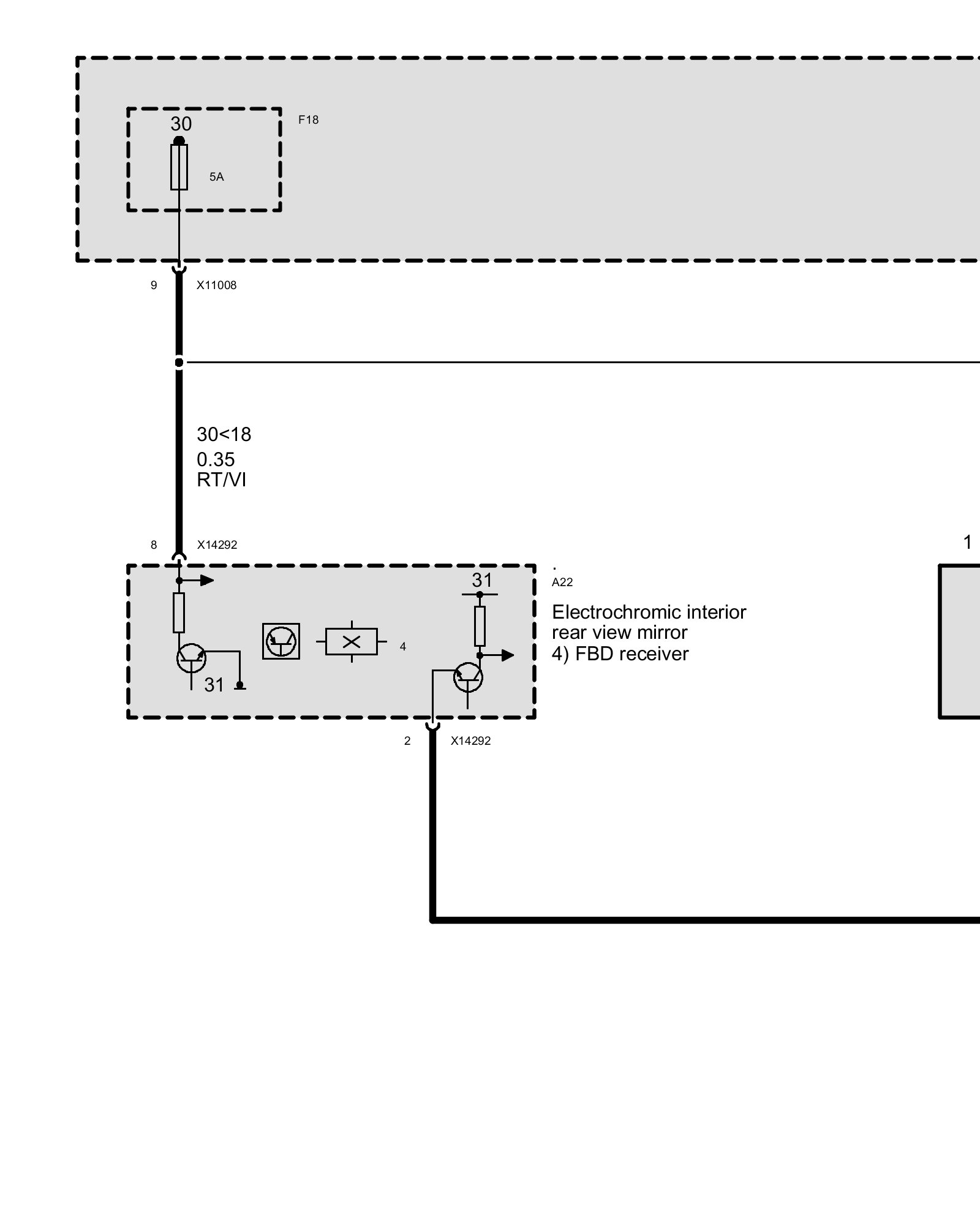

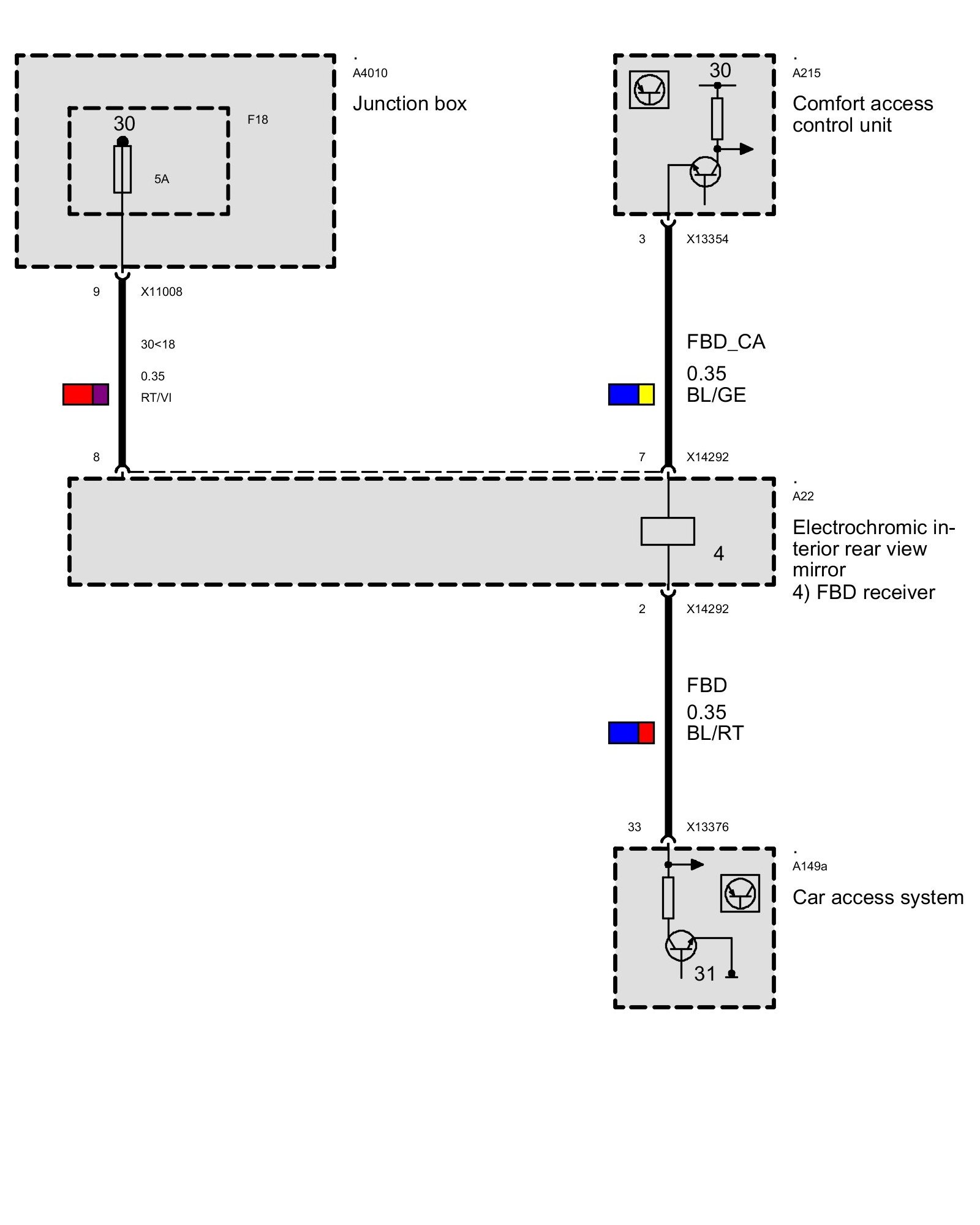

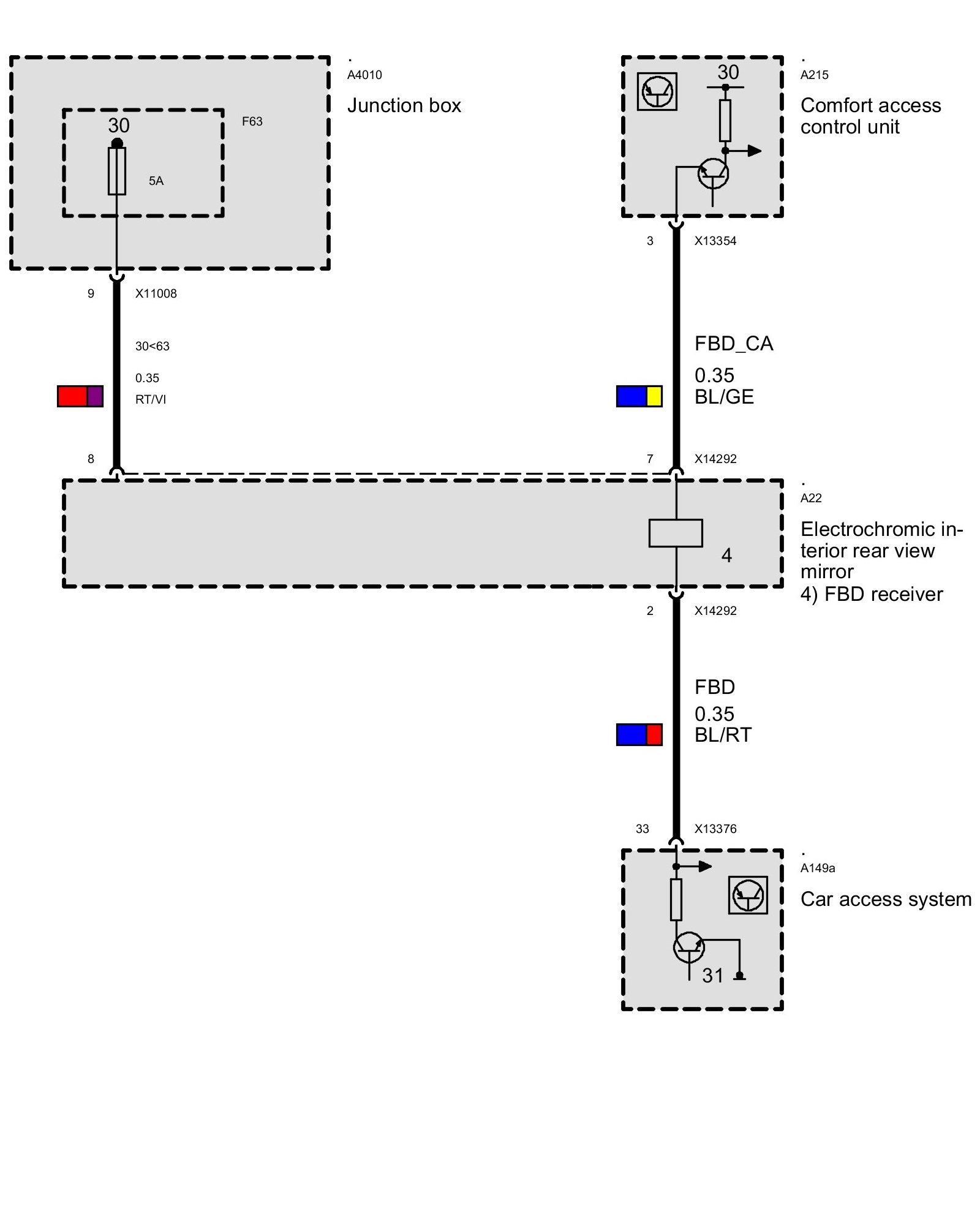

Up to 03/07

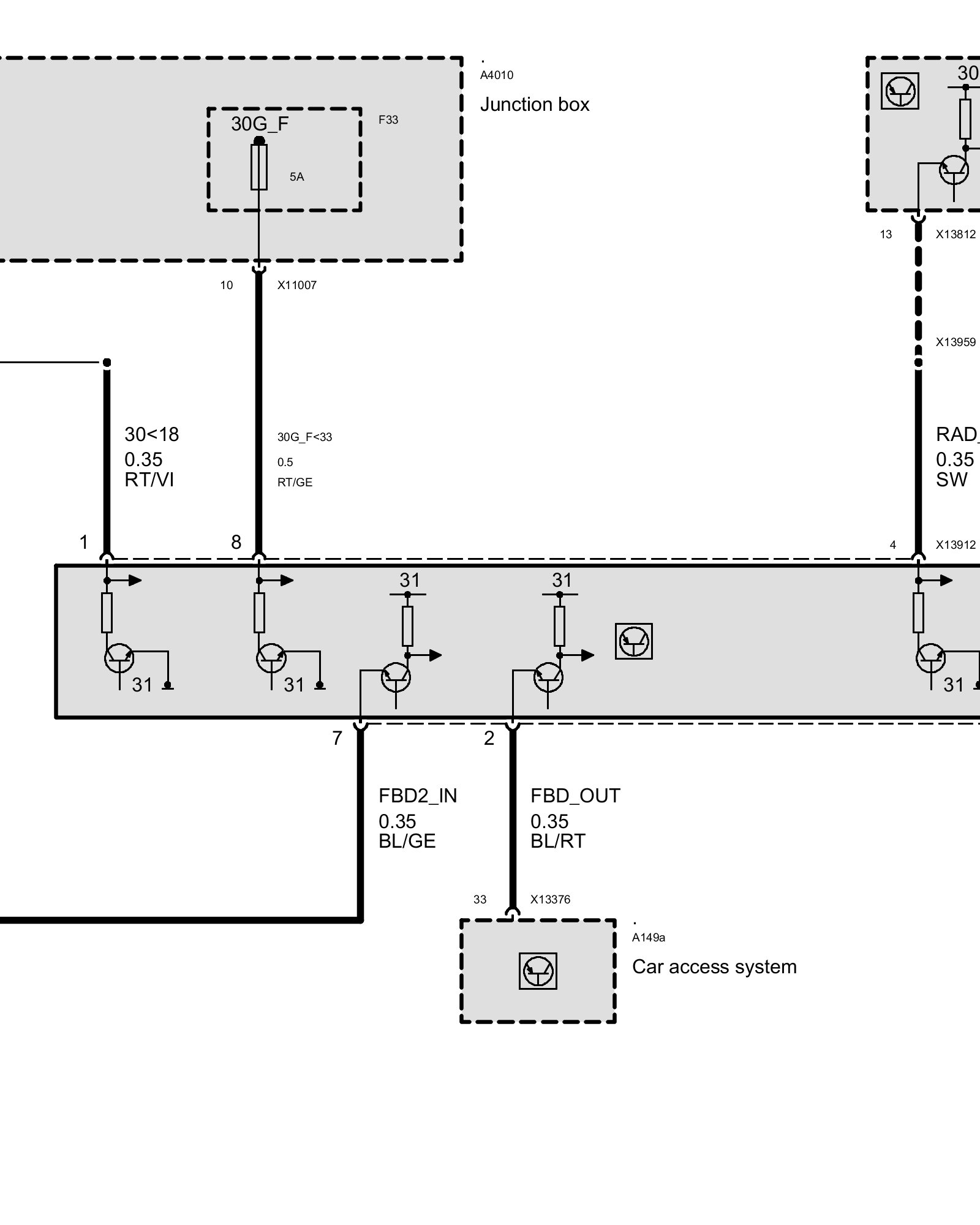

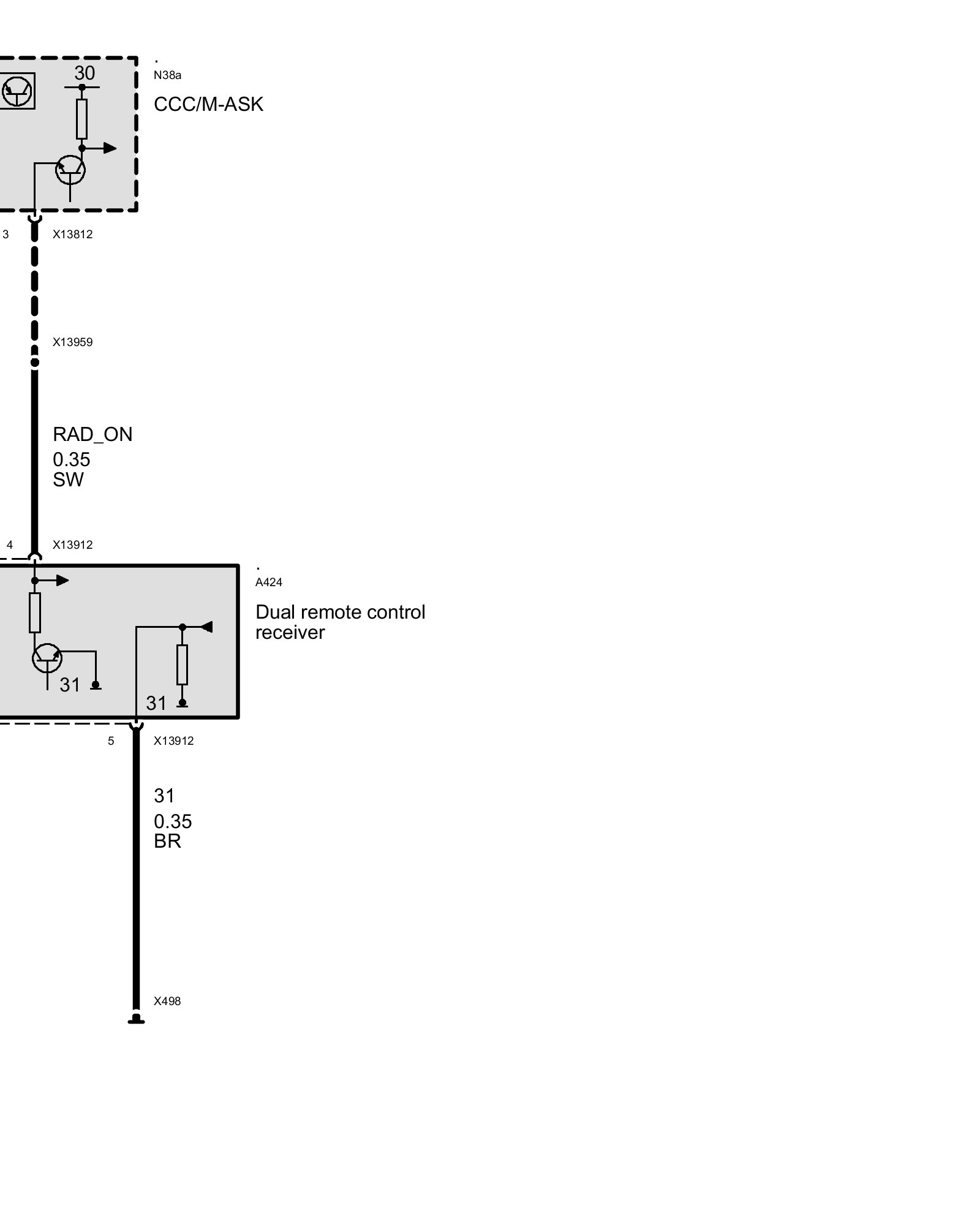

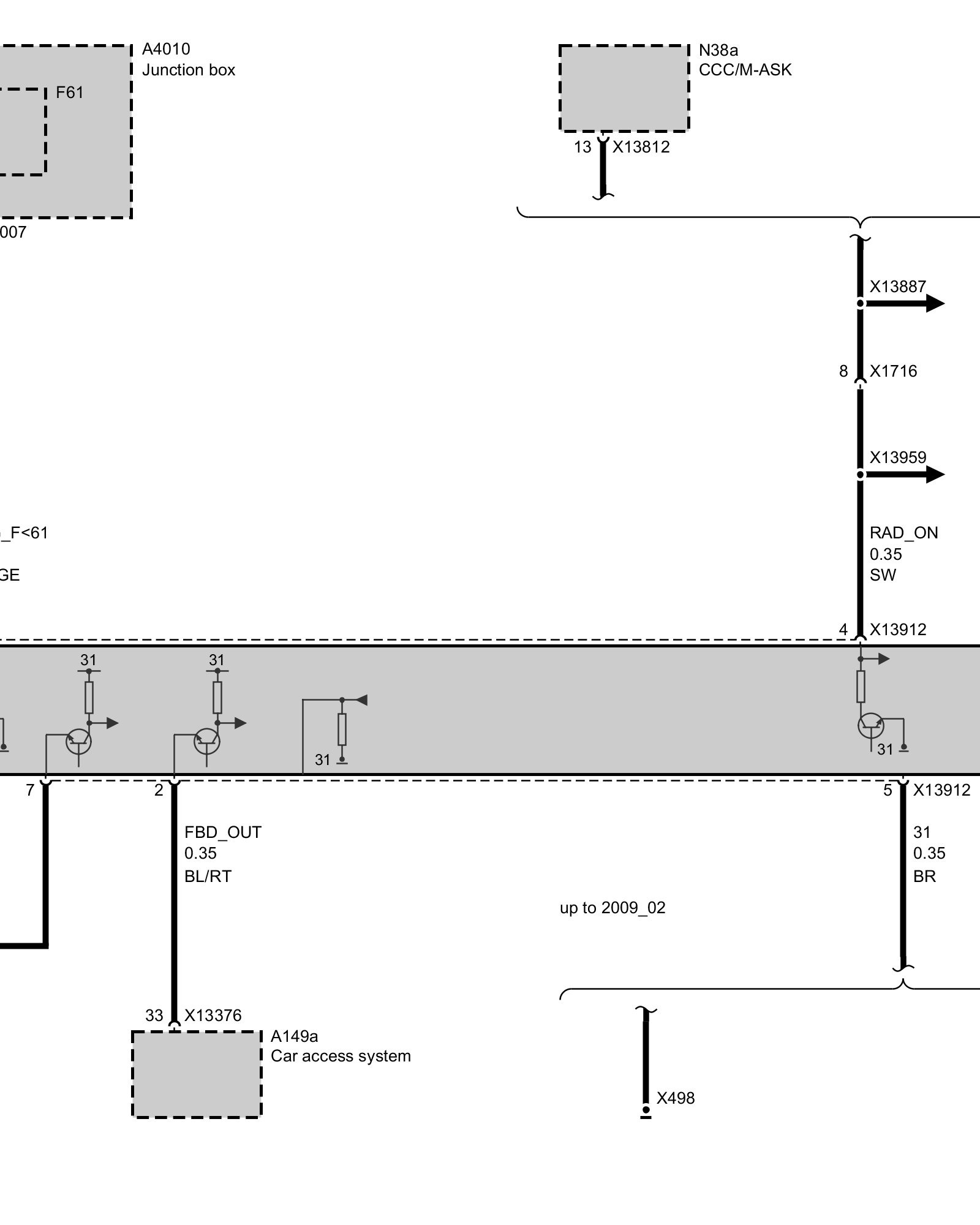

As of 03/07 Up to 09/07

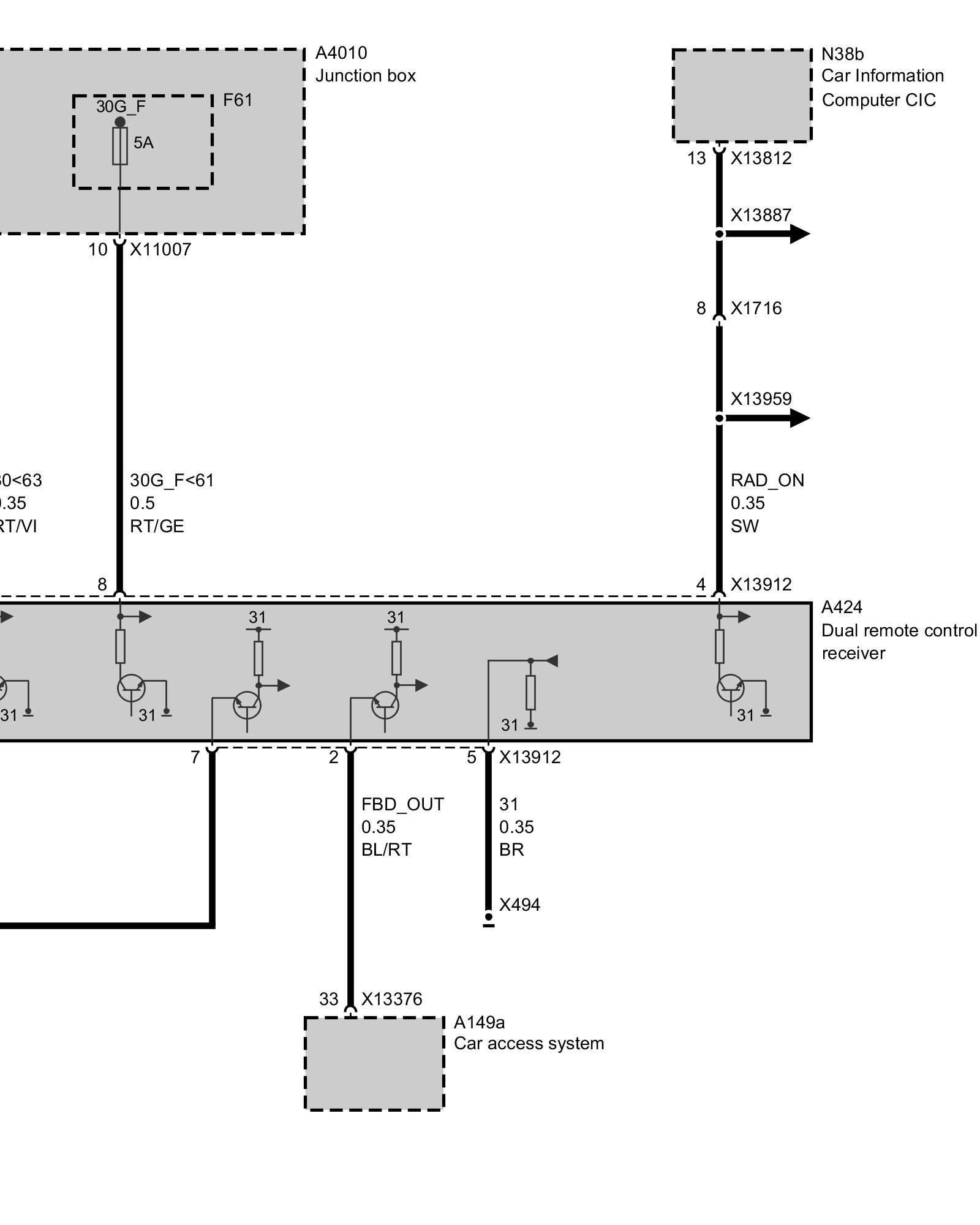

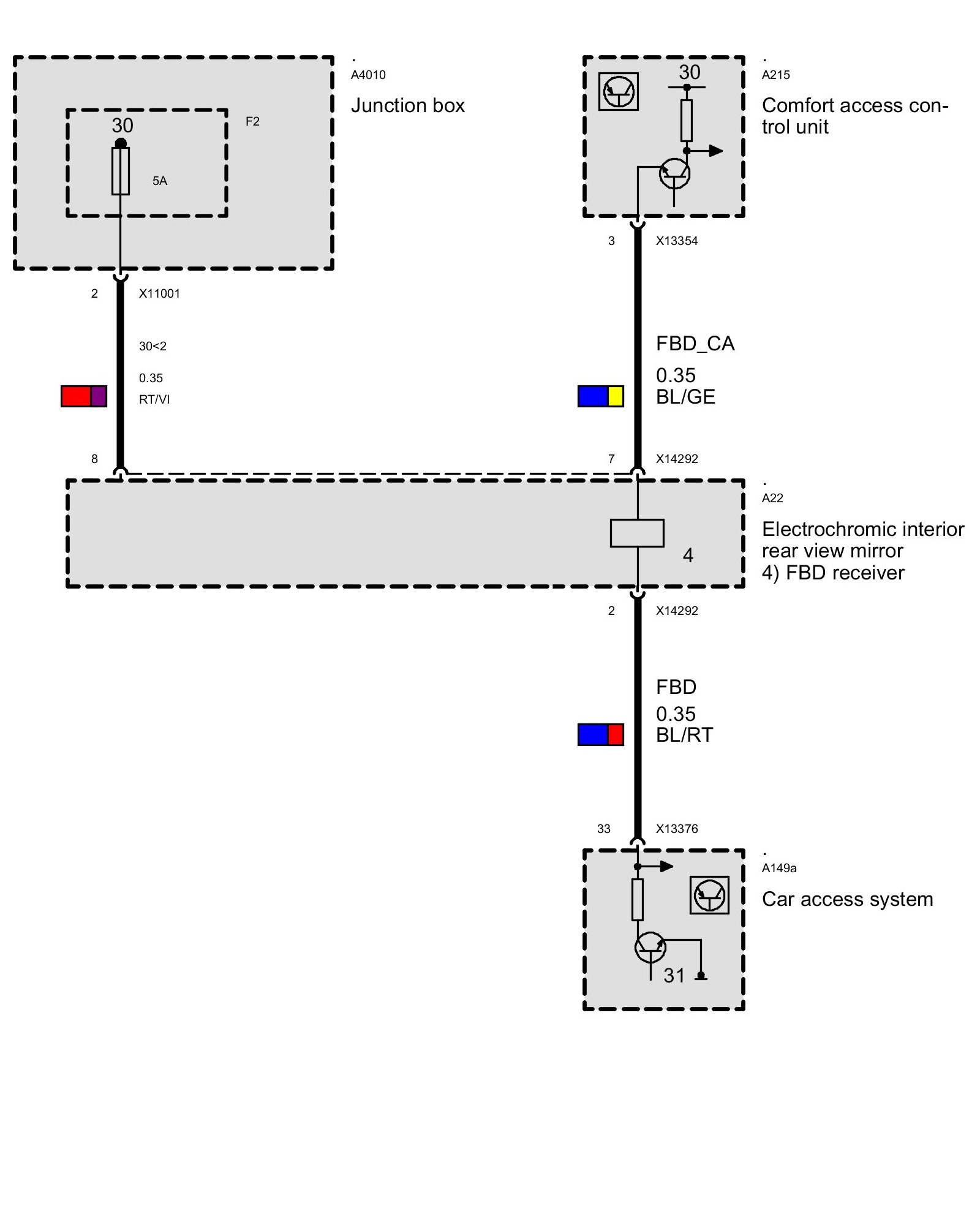

As of 09/07

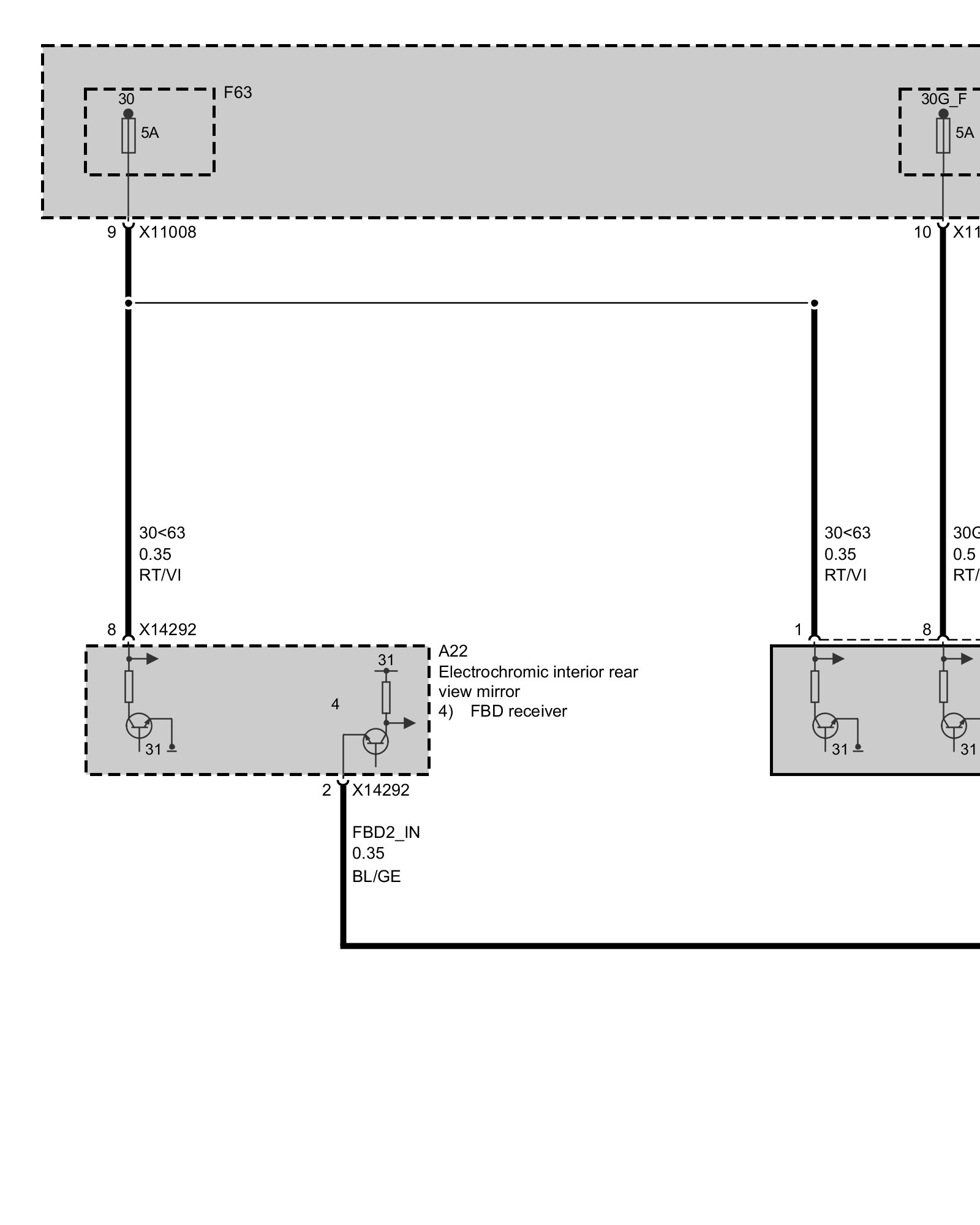

As of 03/07 Up to 09/07











As of 09/07 Up to 09/09

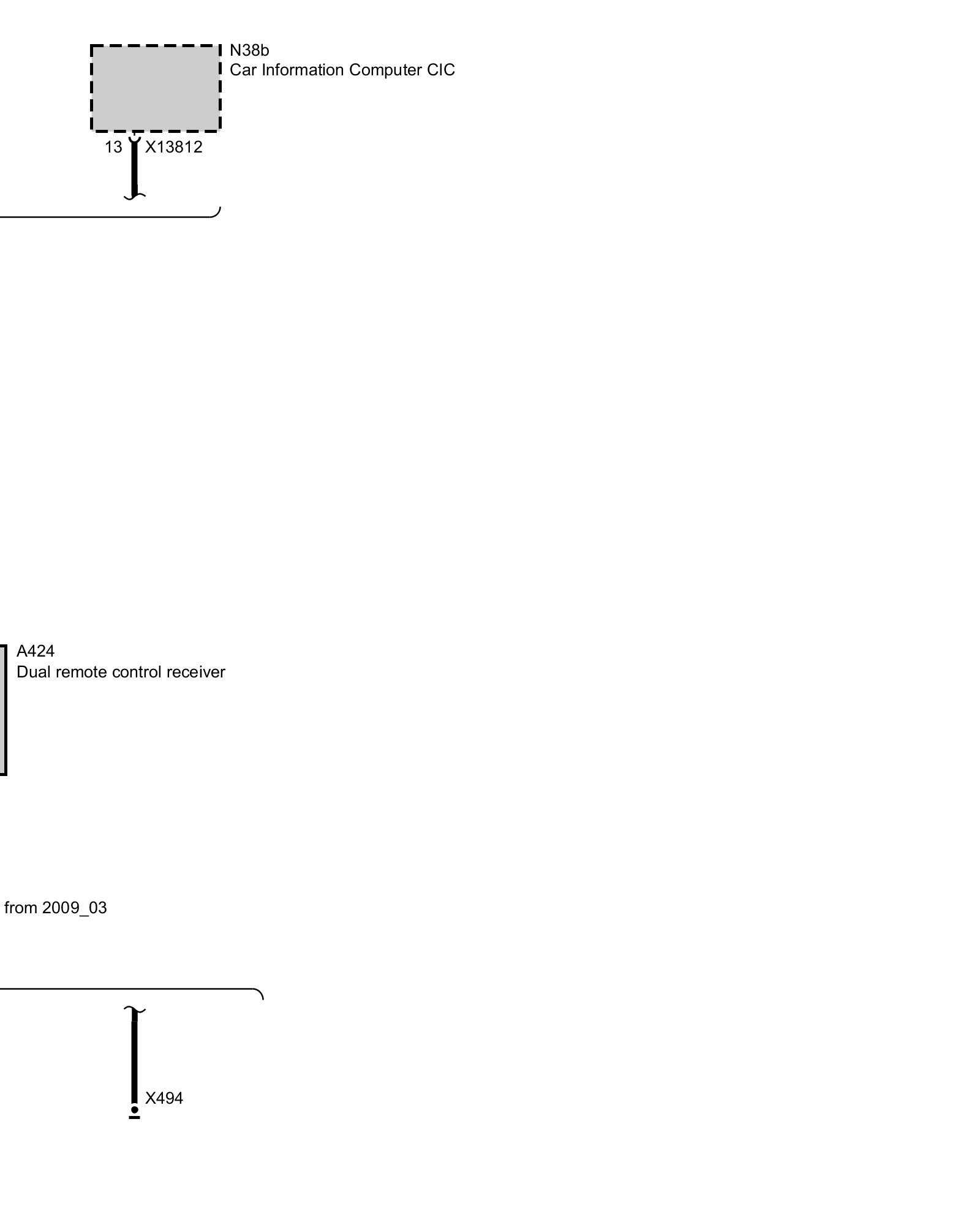

As of 09/09
