Home >> BMW >> 2011 >> 335is Convertible (E93) L6-3.0L Turbo (N54T) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Instrument Panel, Gauges and Warning Indicators >> Driver/Vehicle Information Display >> Car Information Computer CIC

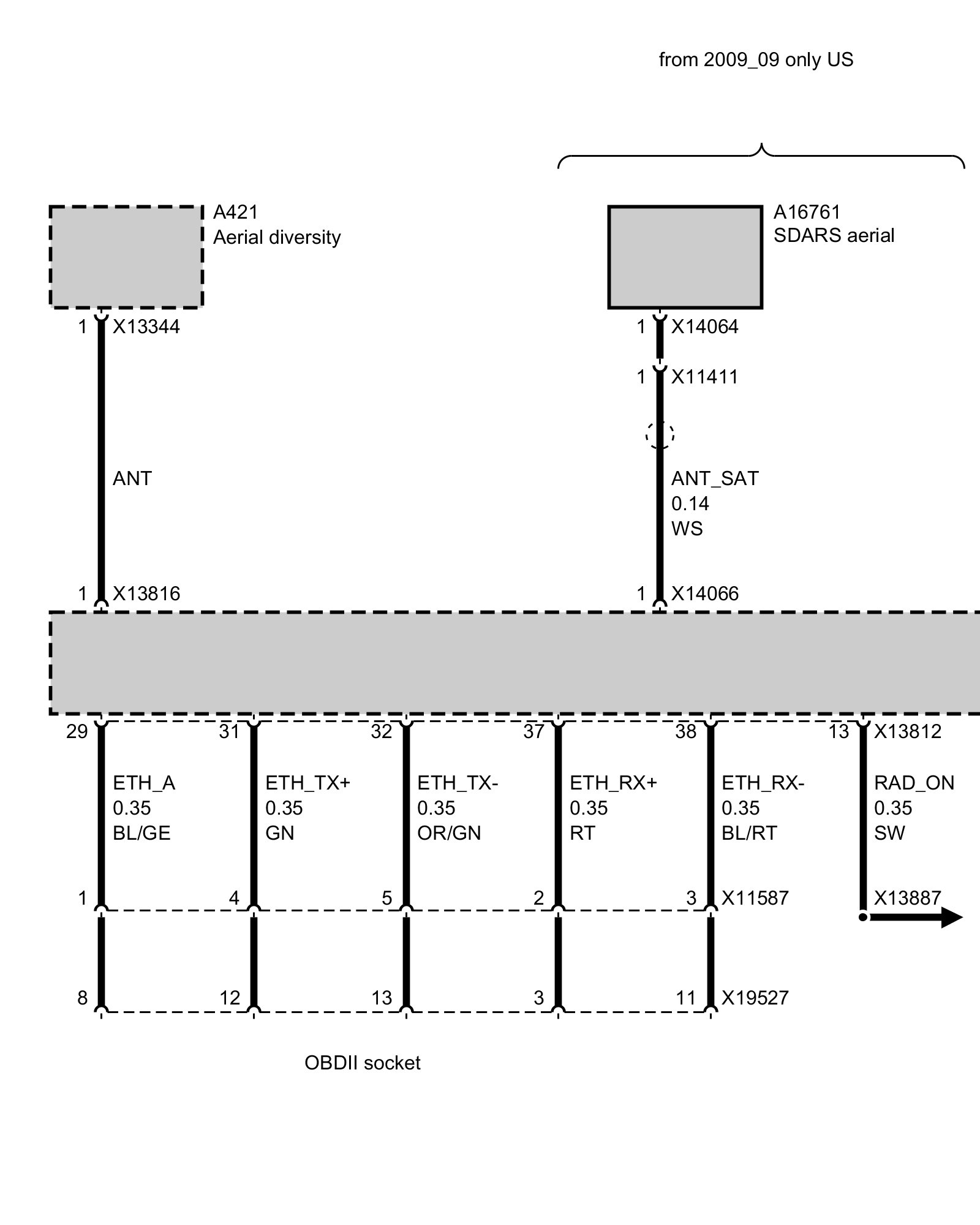

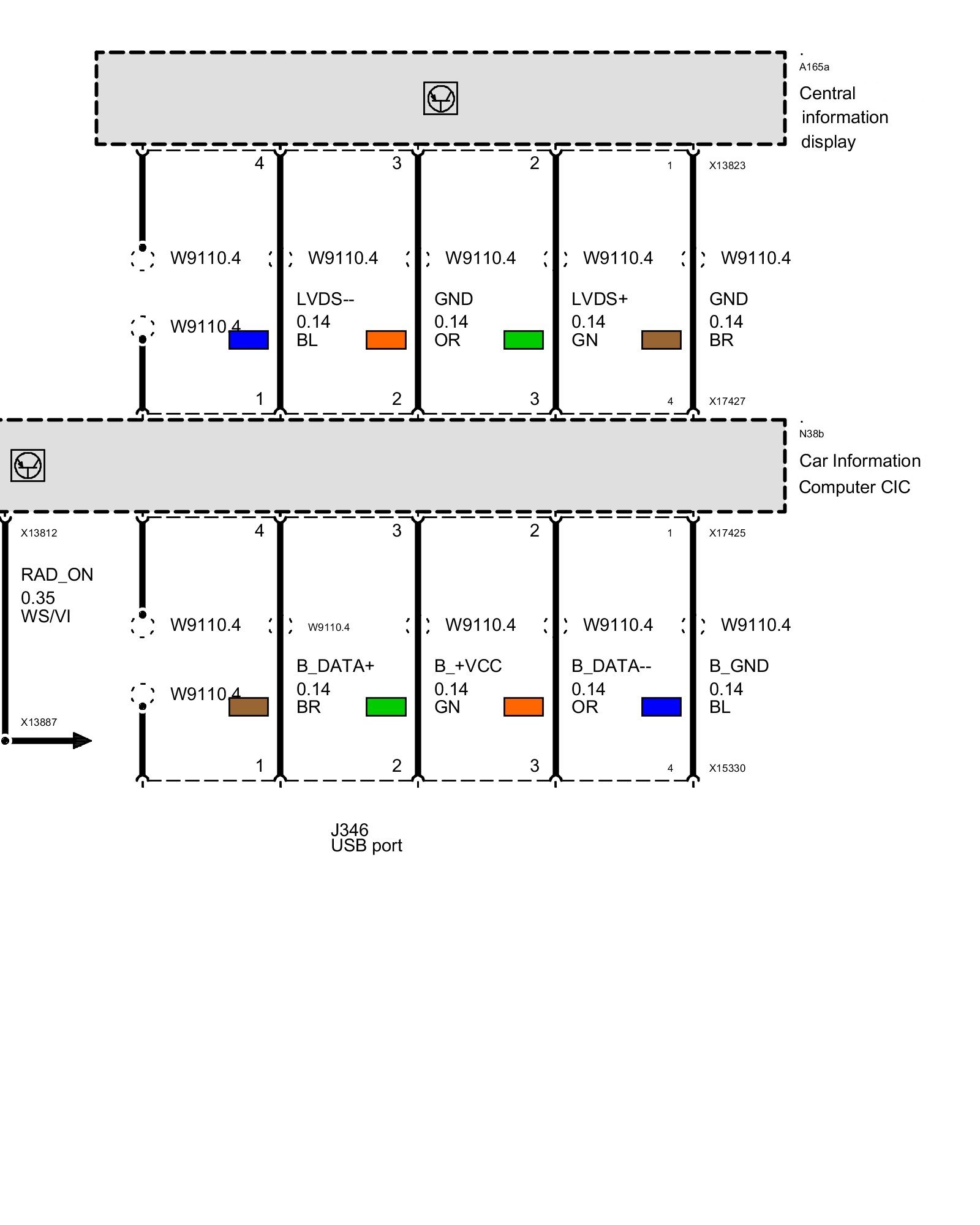

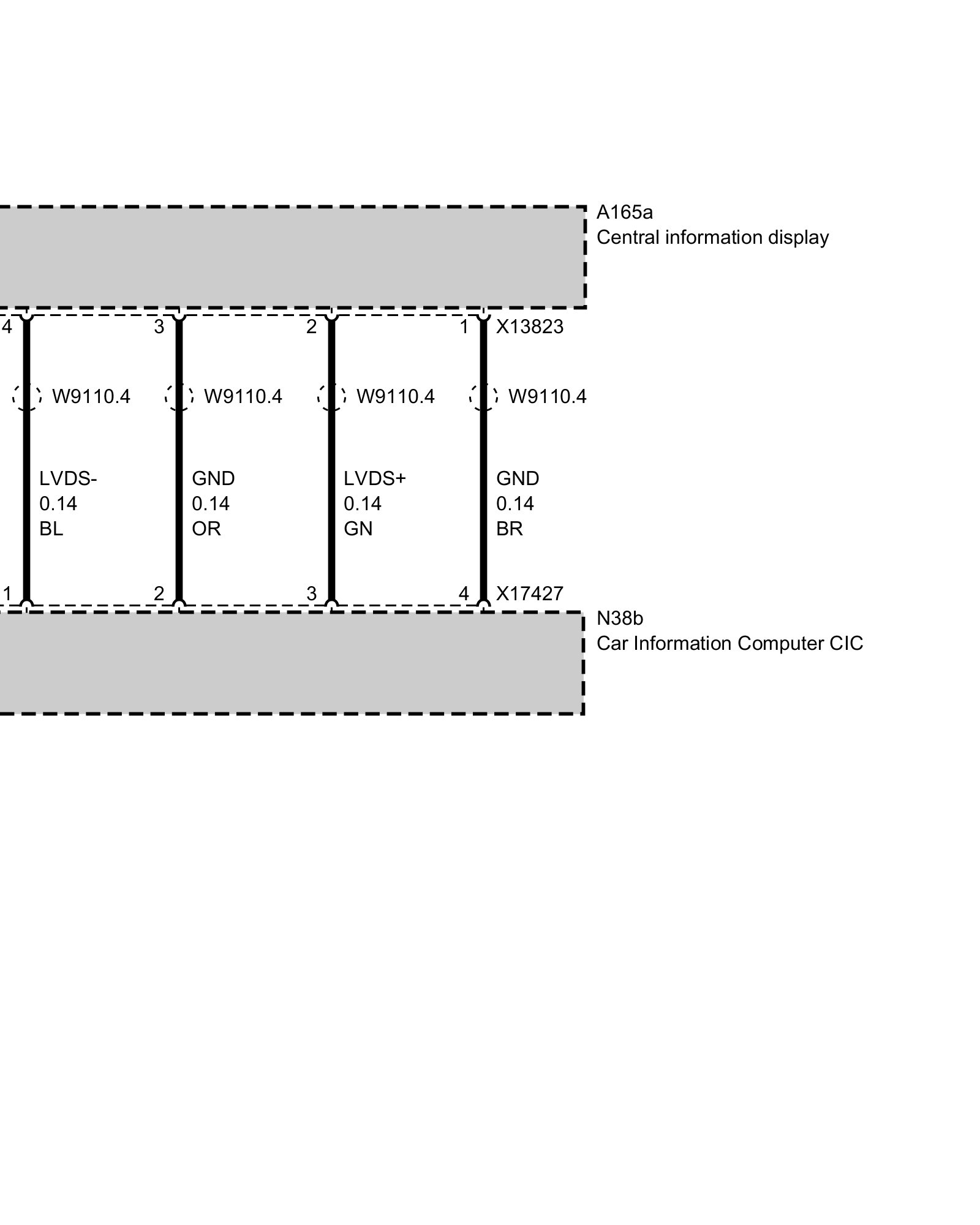

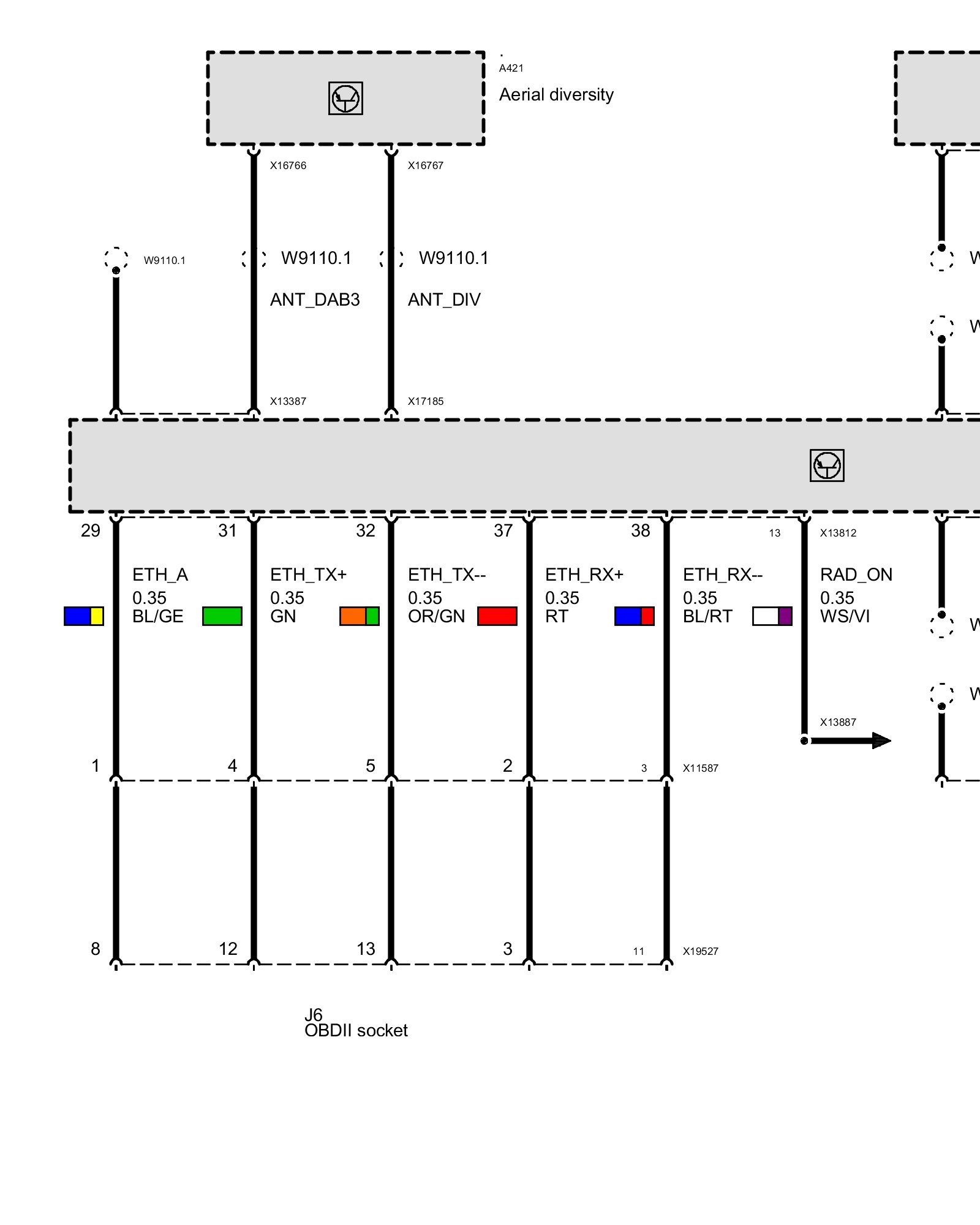

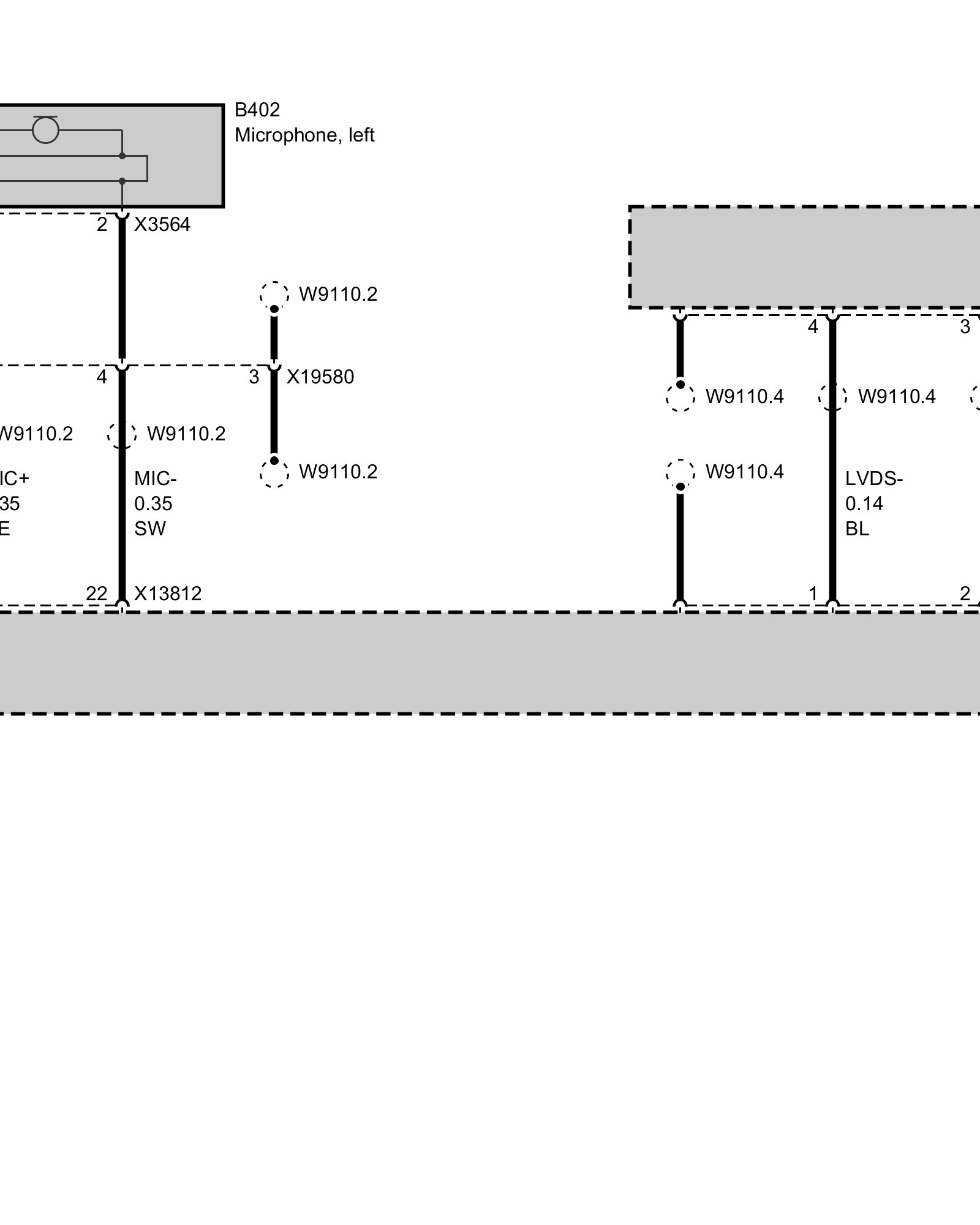

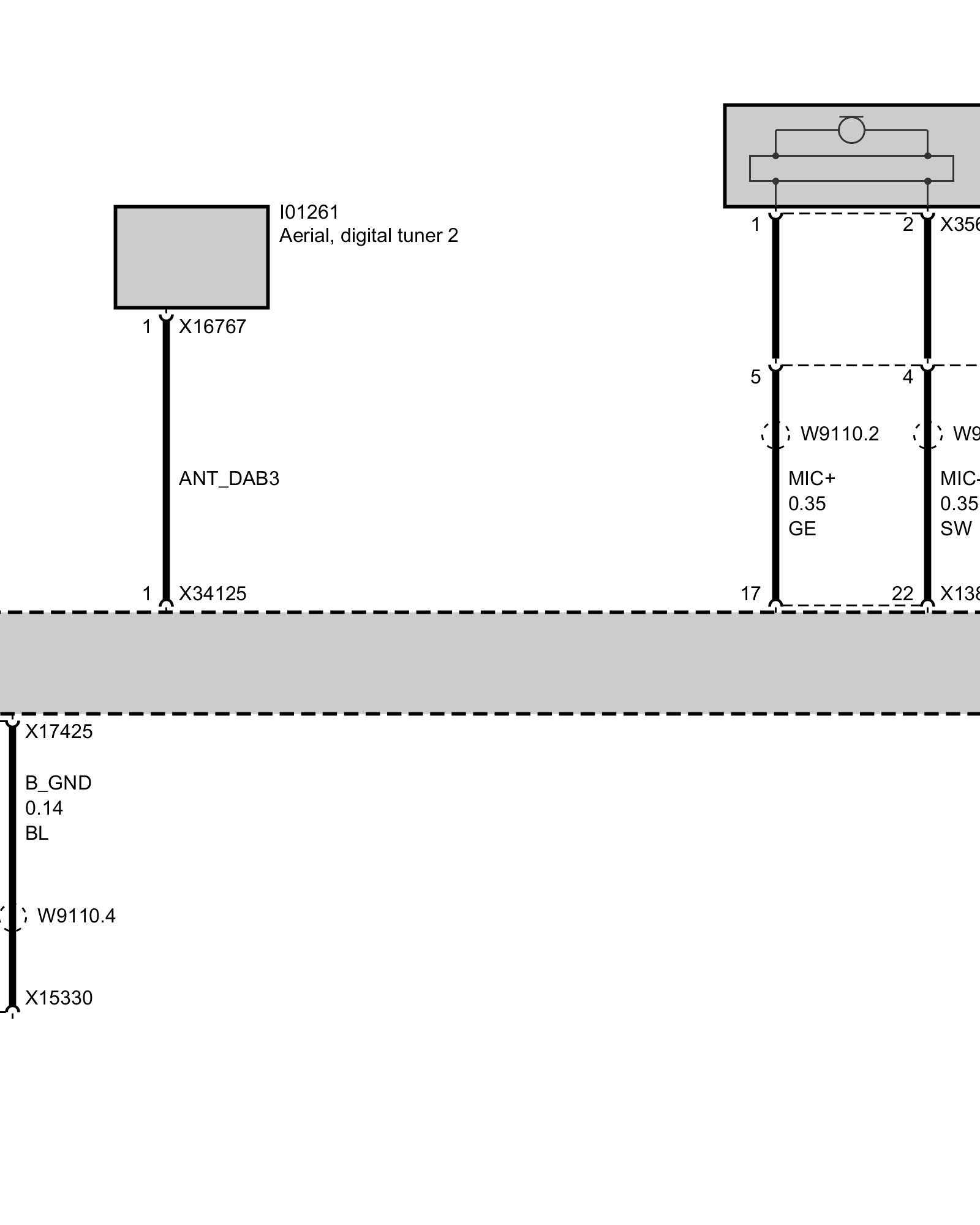

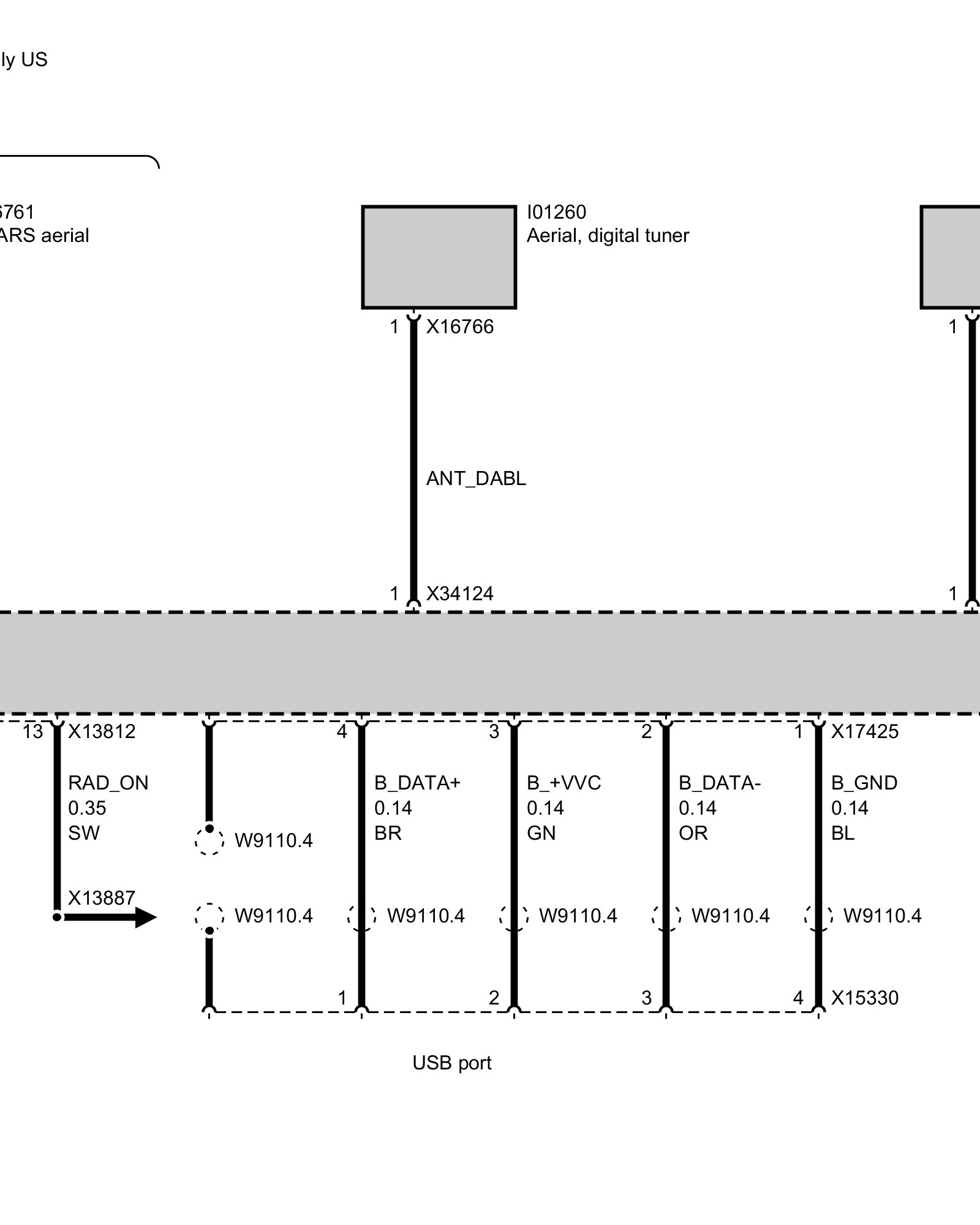

Car Information Computer CIC



Car Information Computer CIC


Up to 09/09








As of 09/09
