Antilock Brakes / Traction Control Systems
>>
Sensor System (Without DSC (Bosch) Dynamic Stability Control)
Sensor System (Without DSC (Bosch) Dynamic Stability Control)

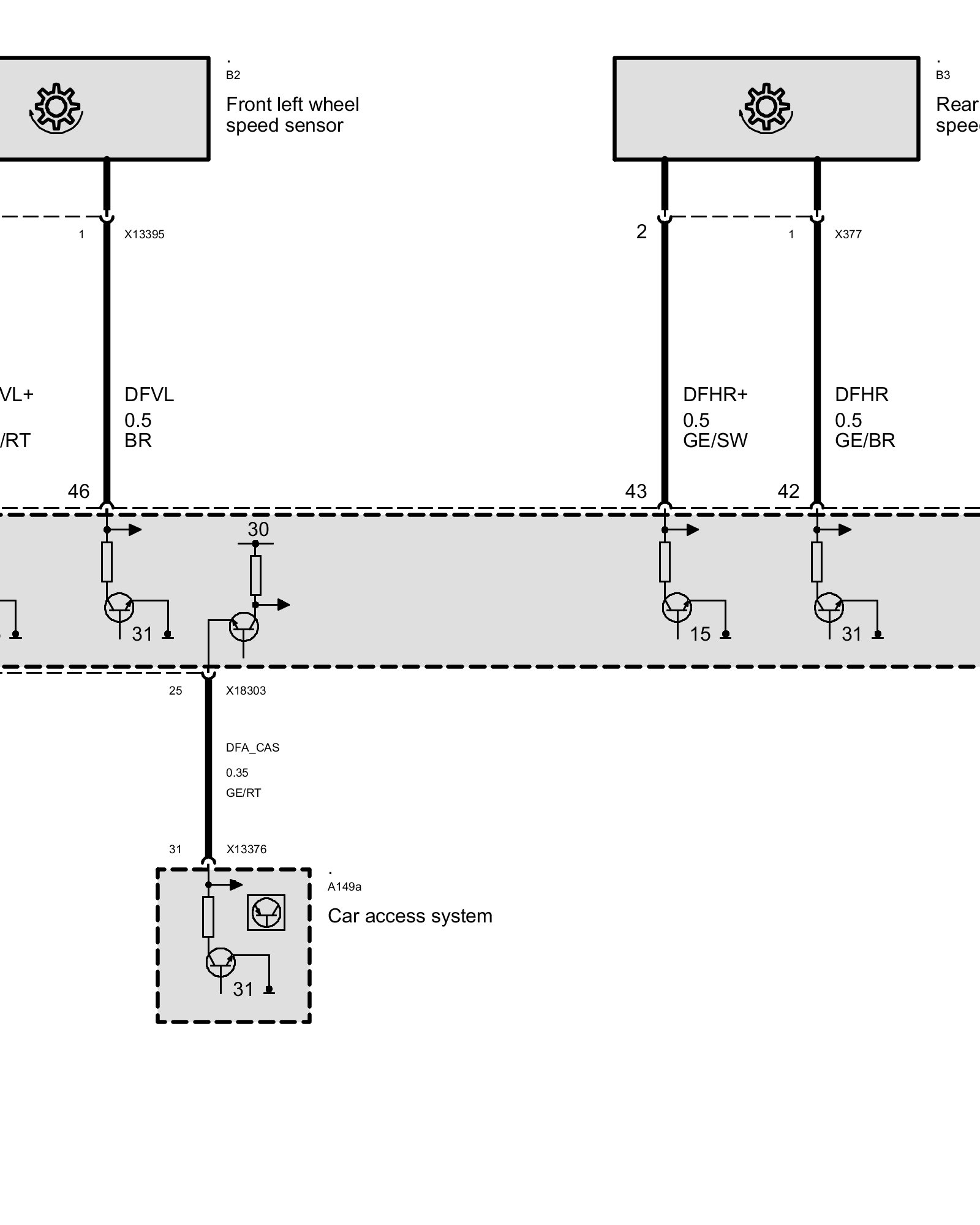

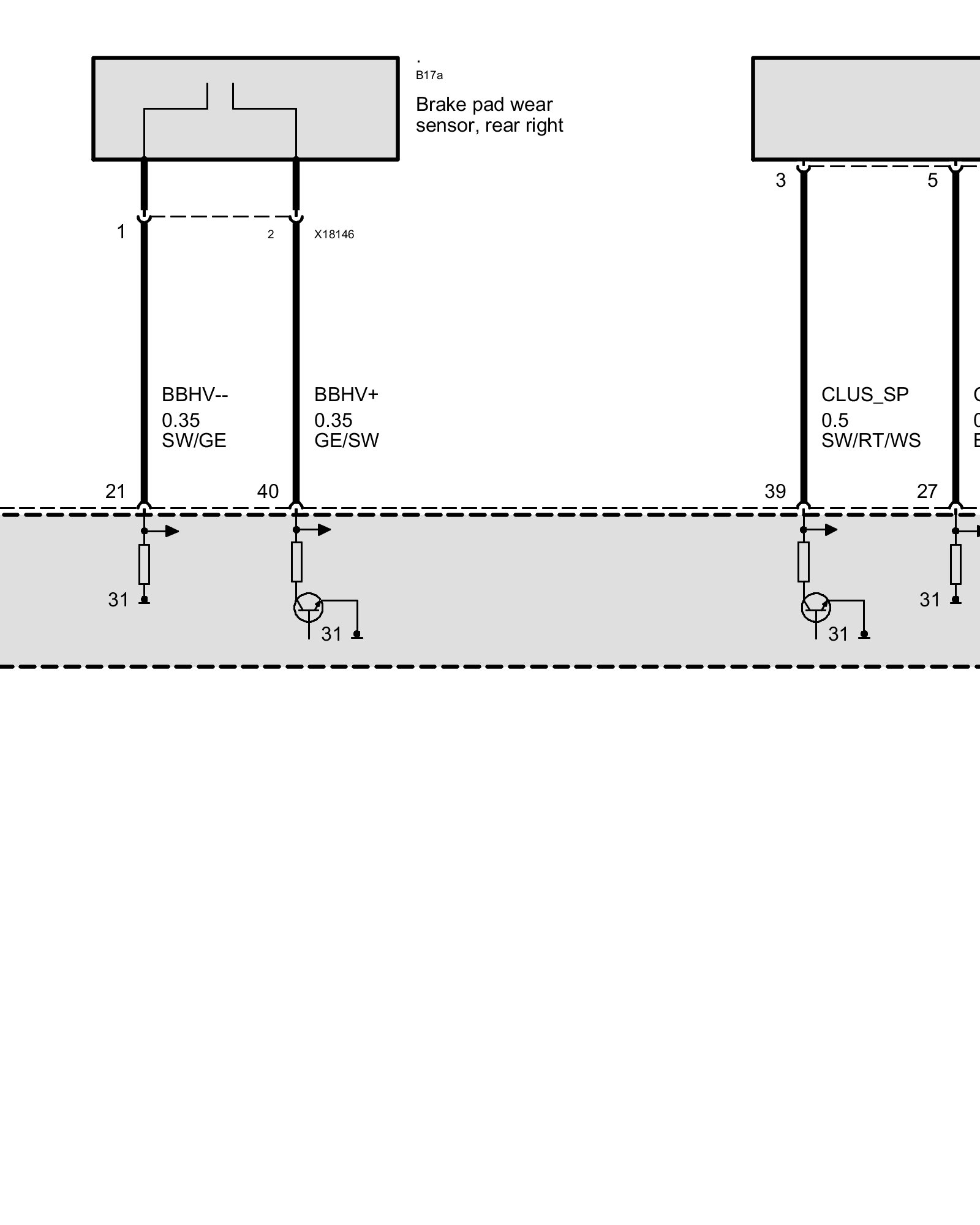

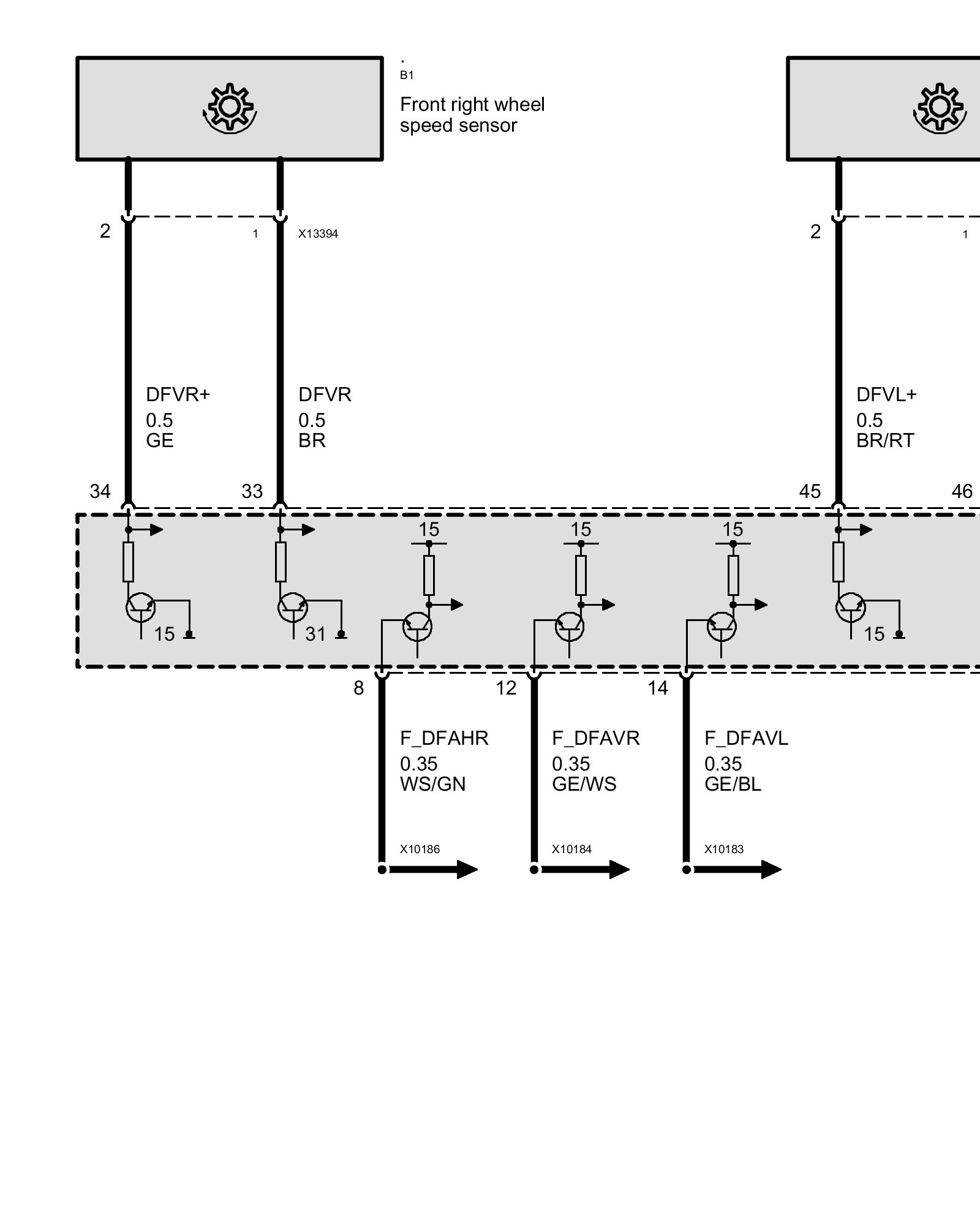

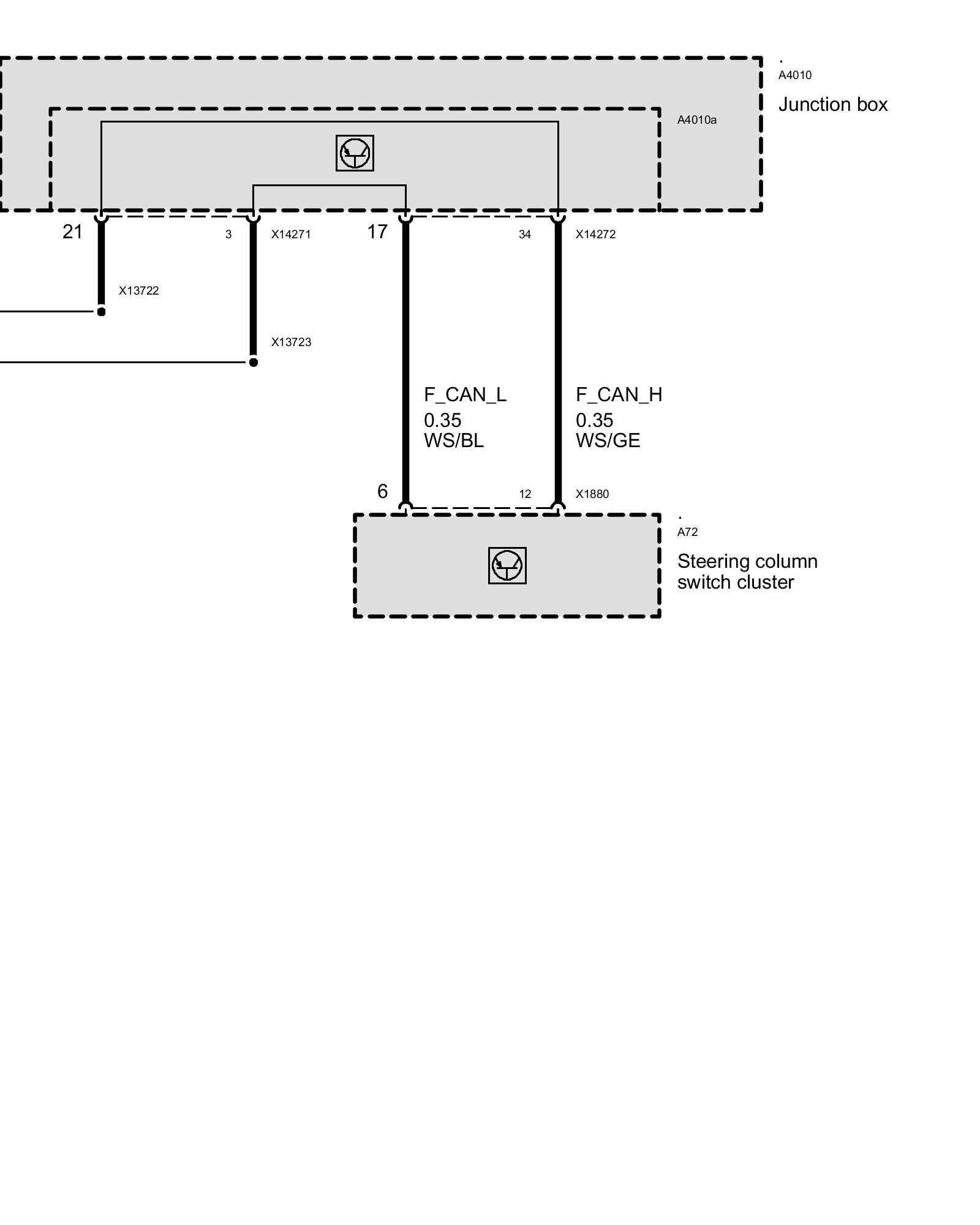

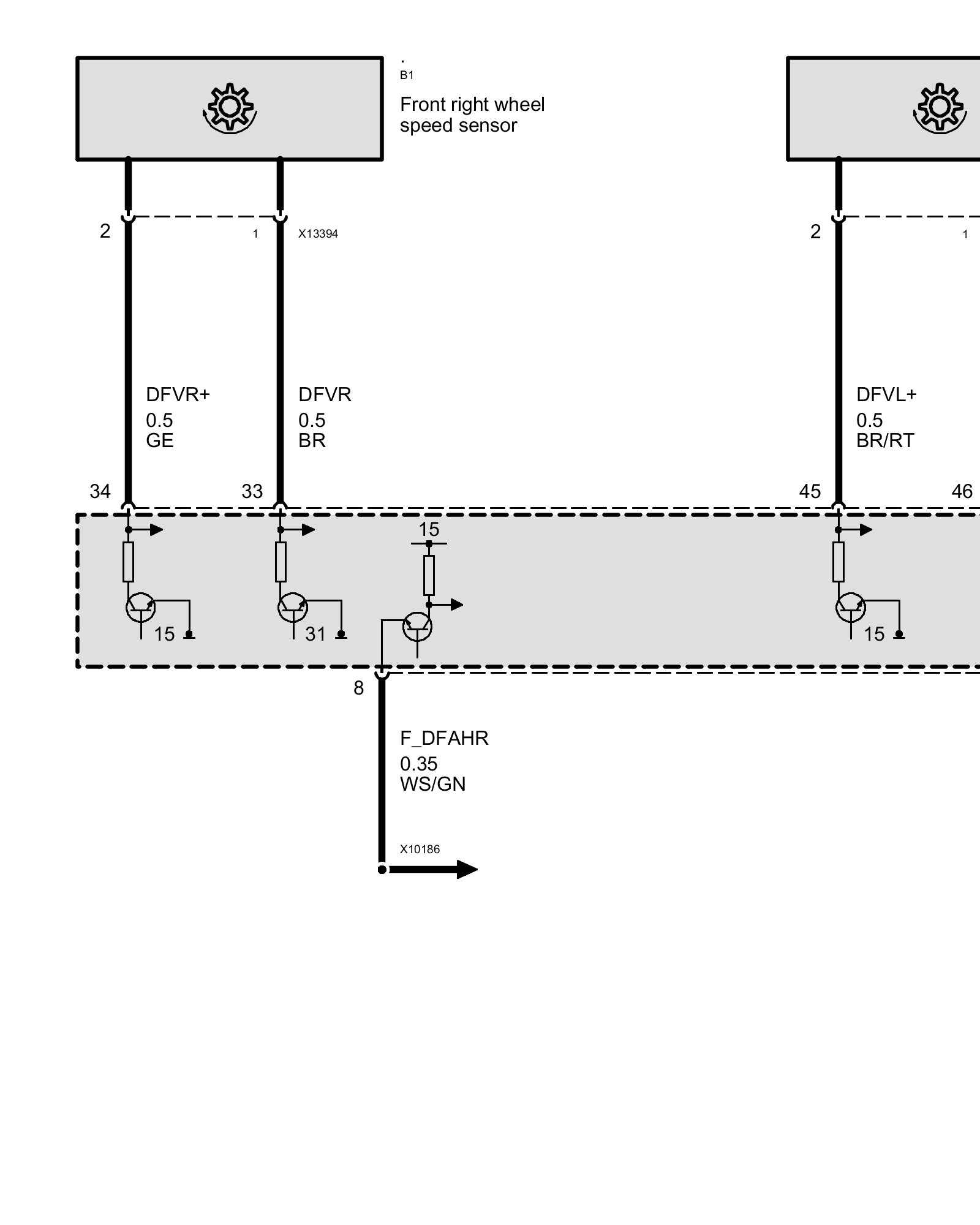

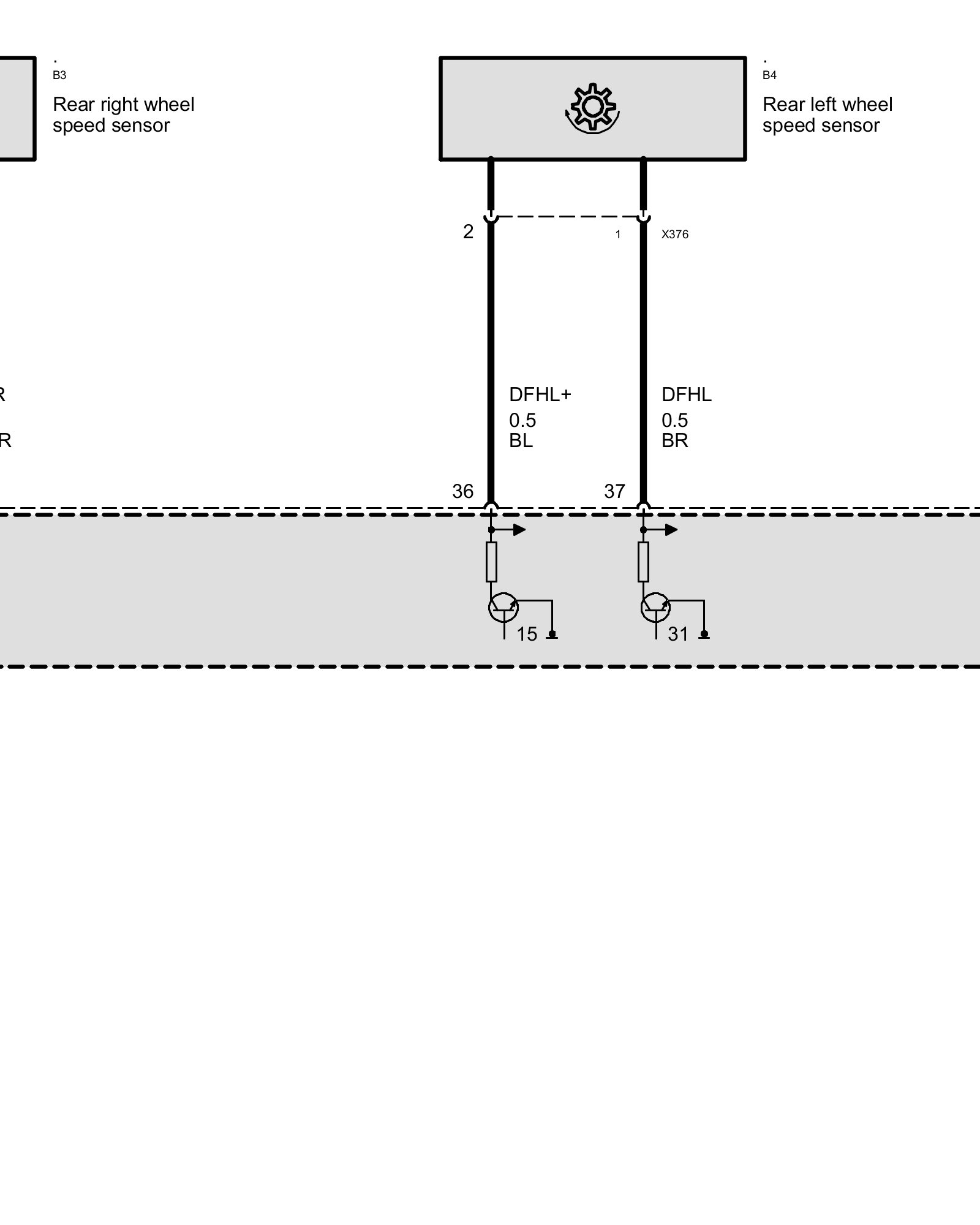

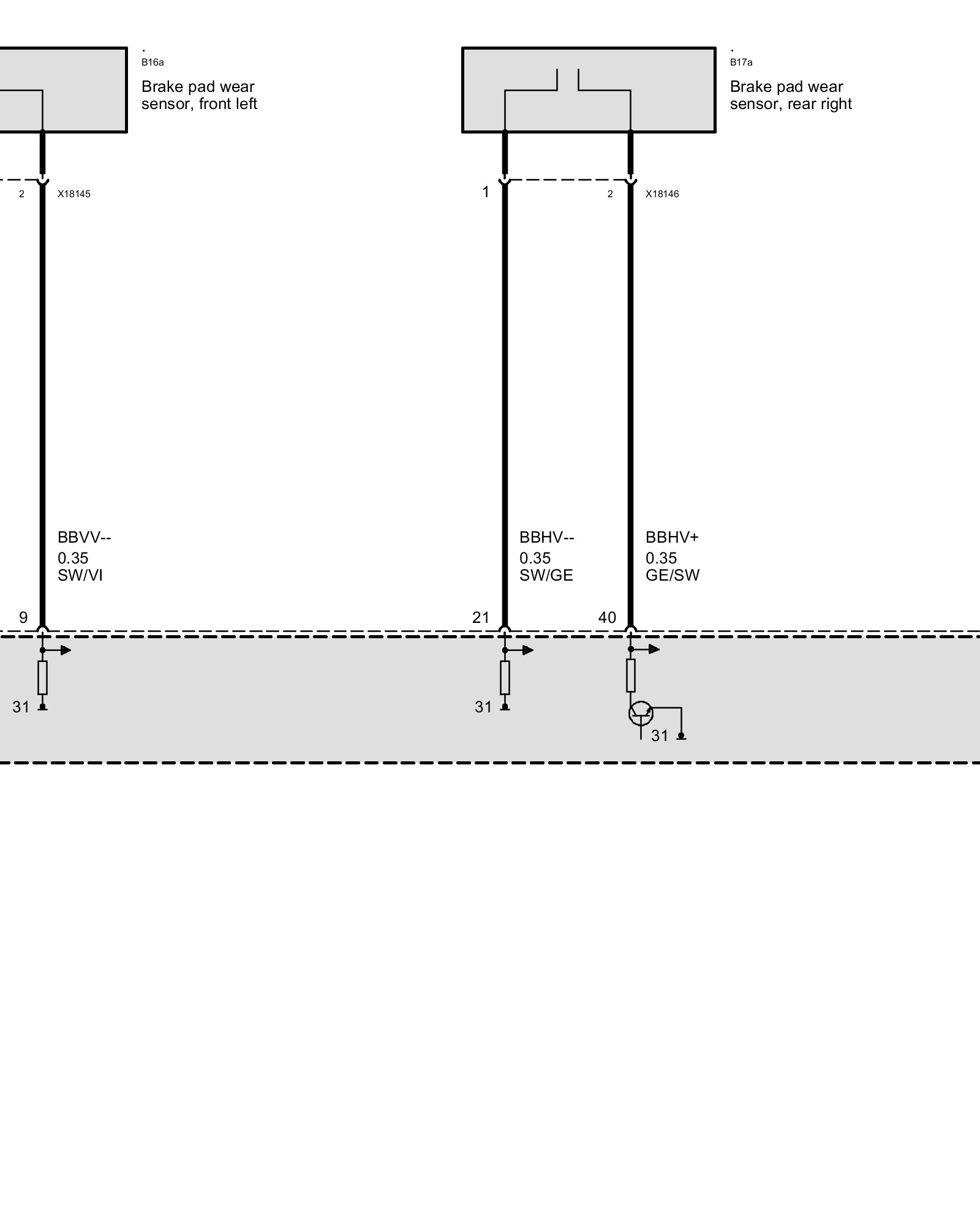

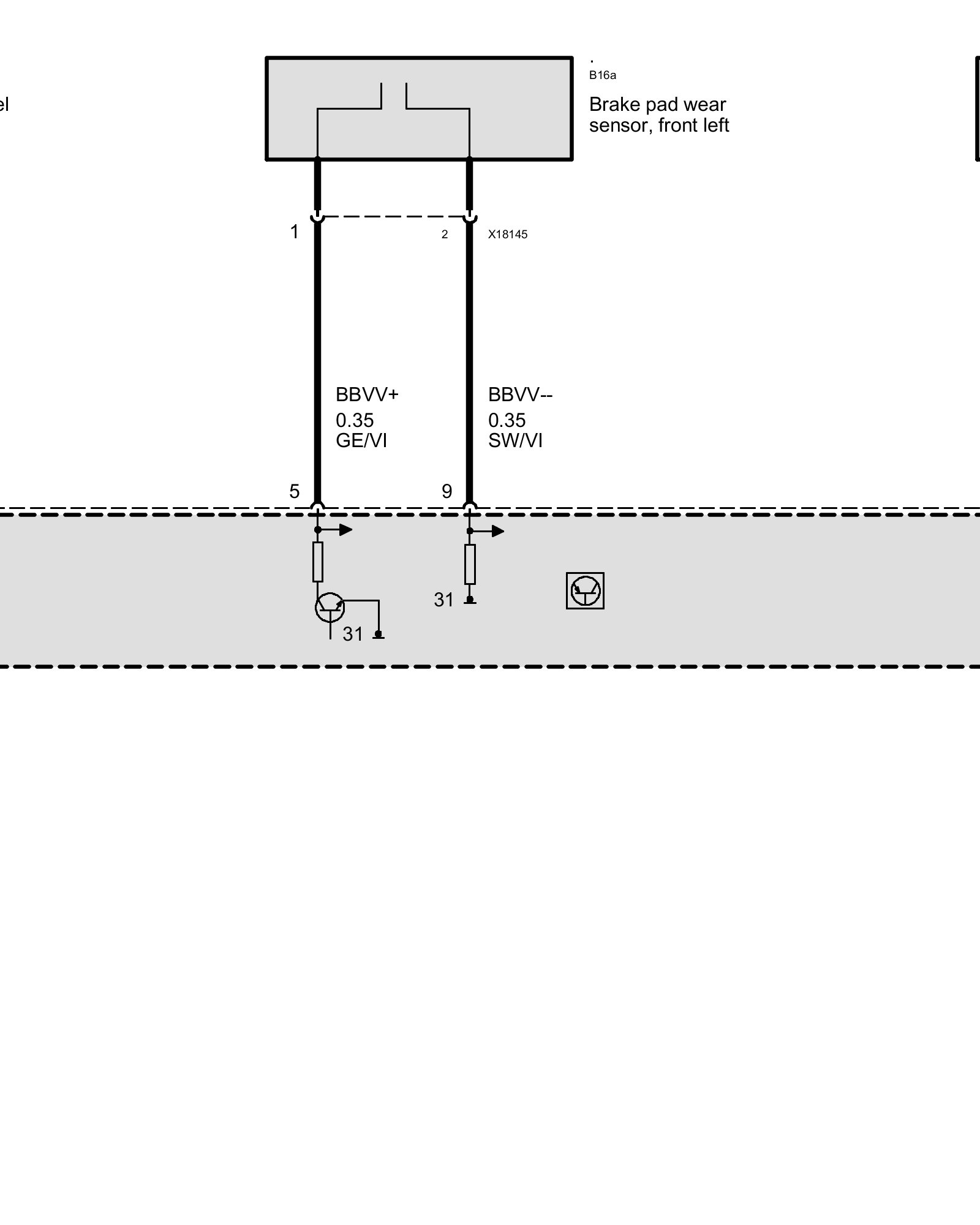

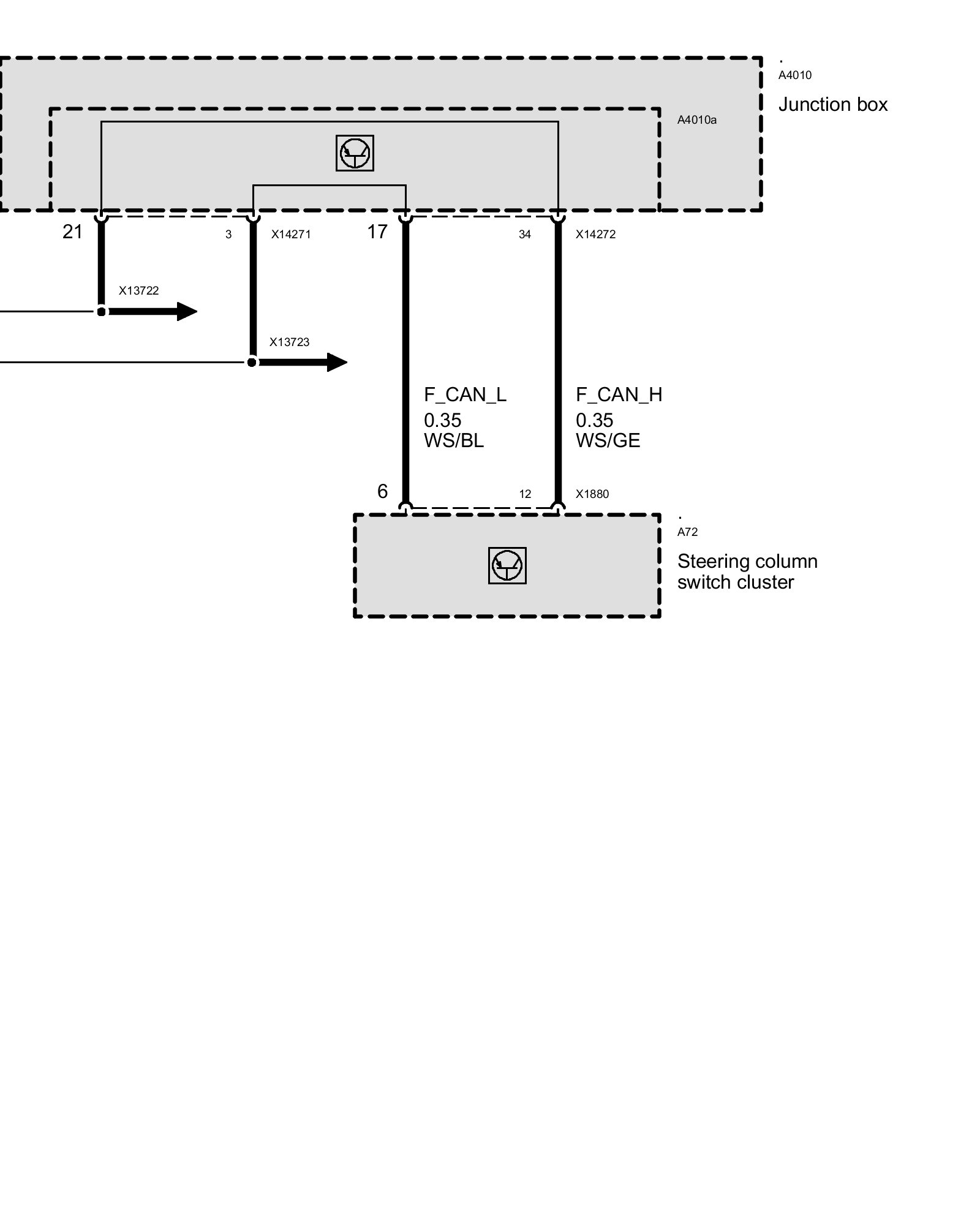

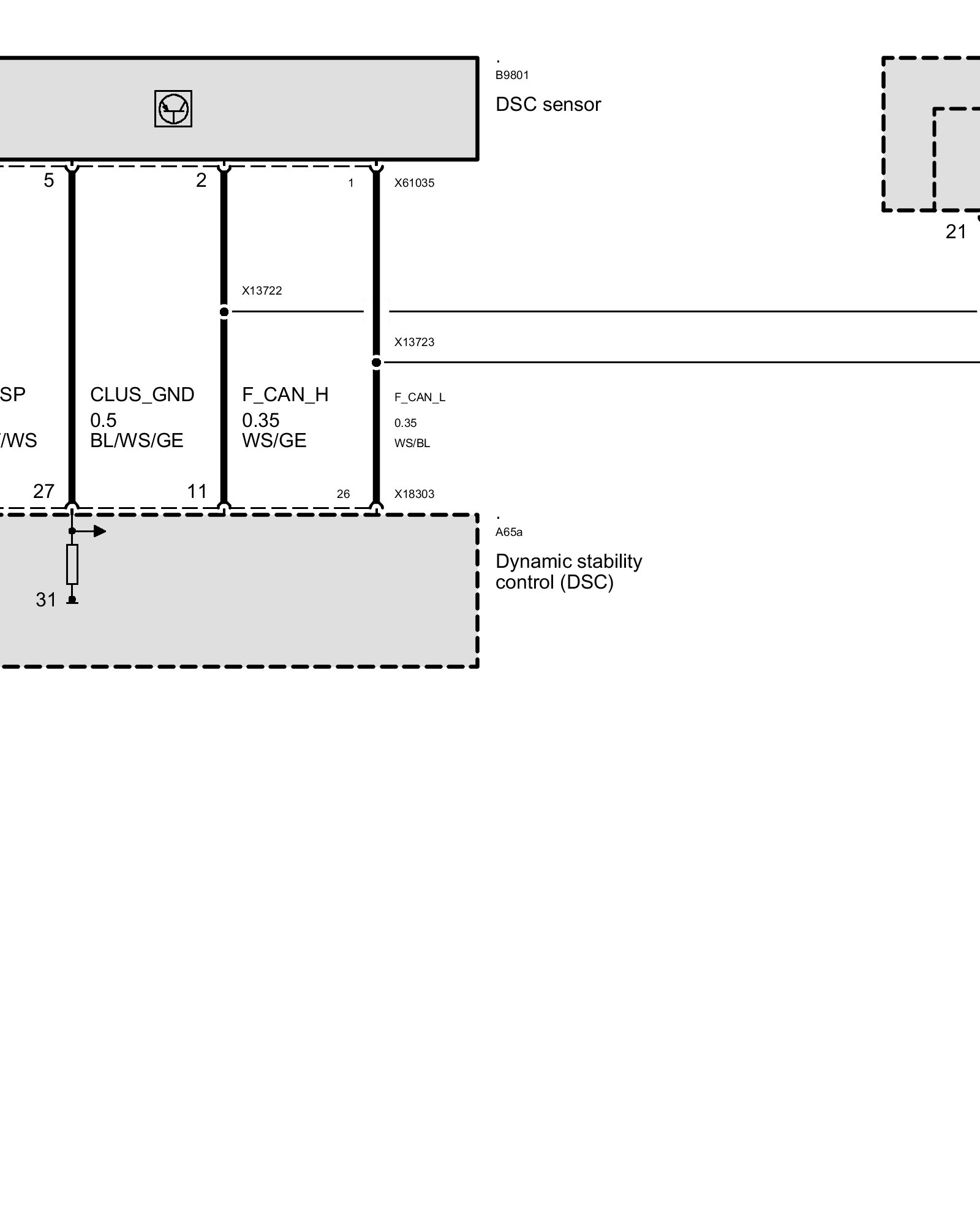

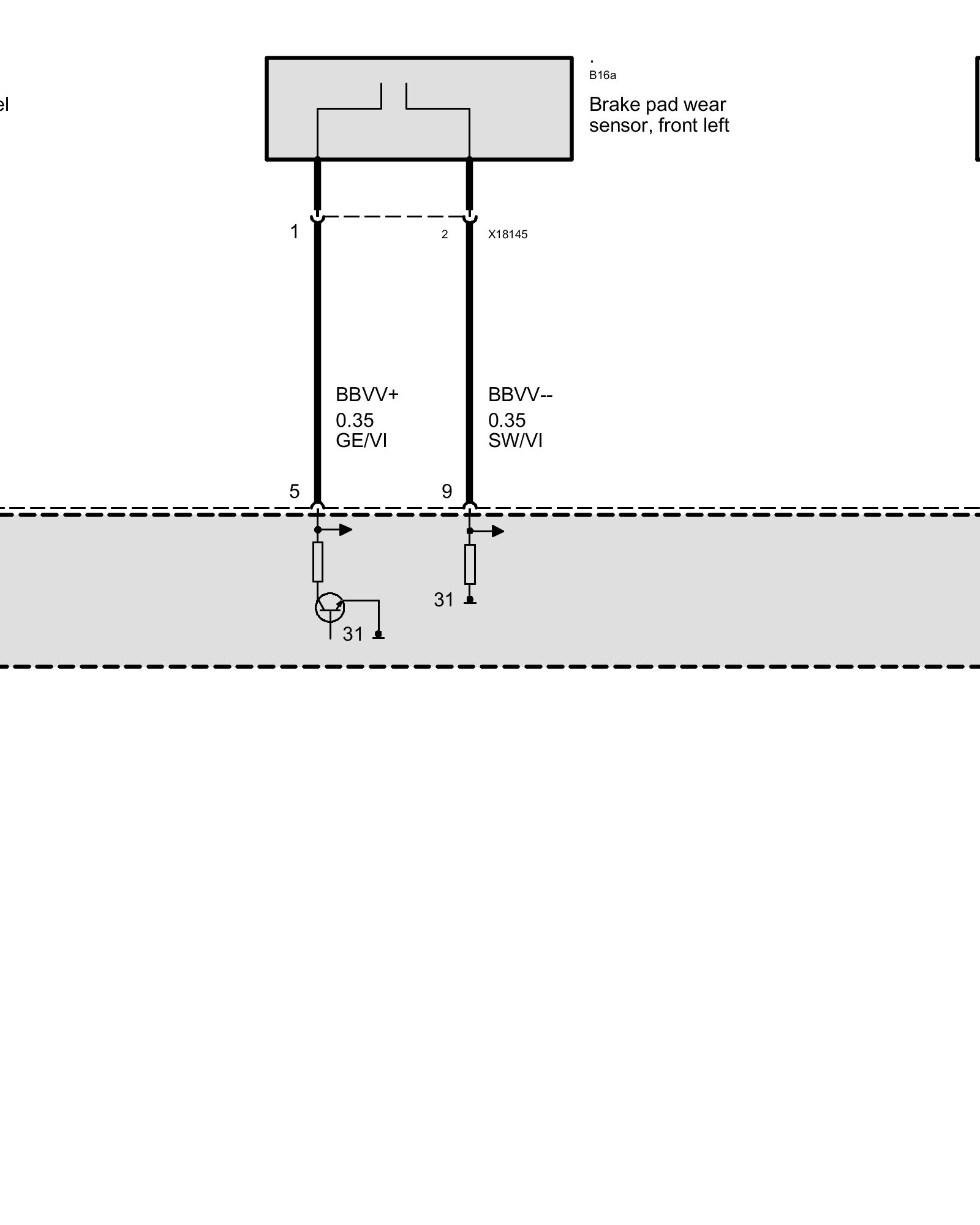

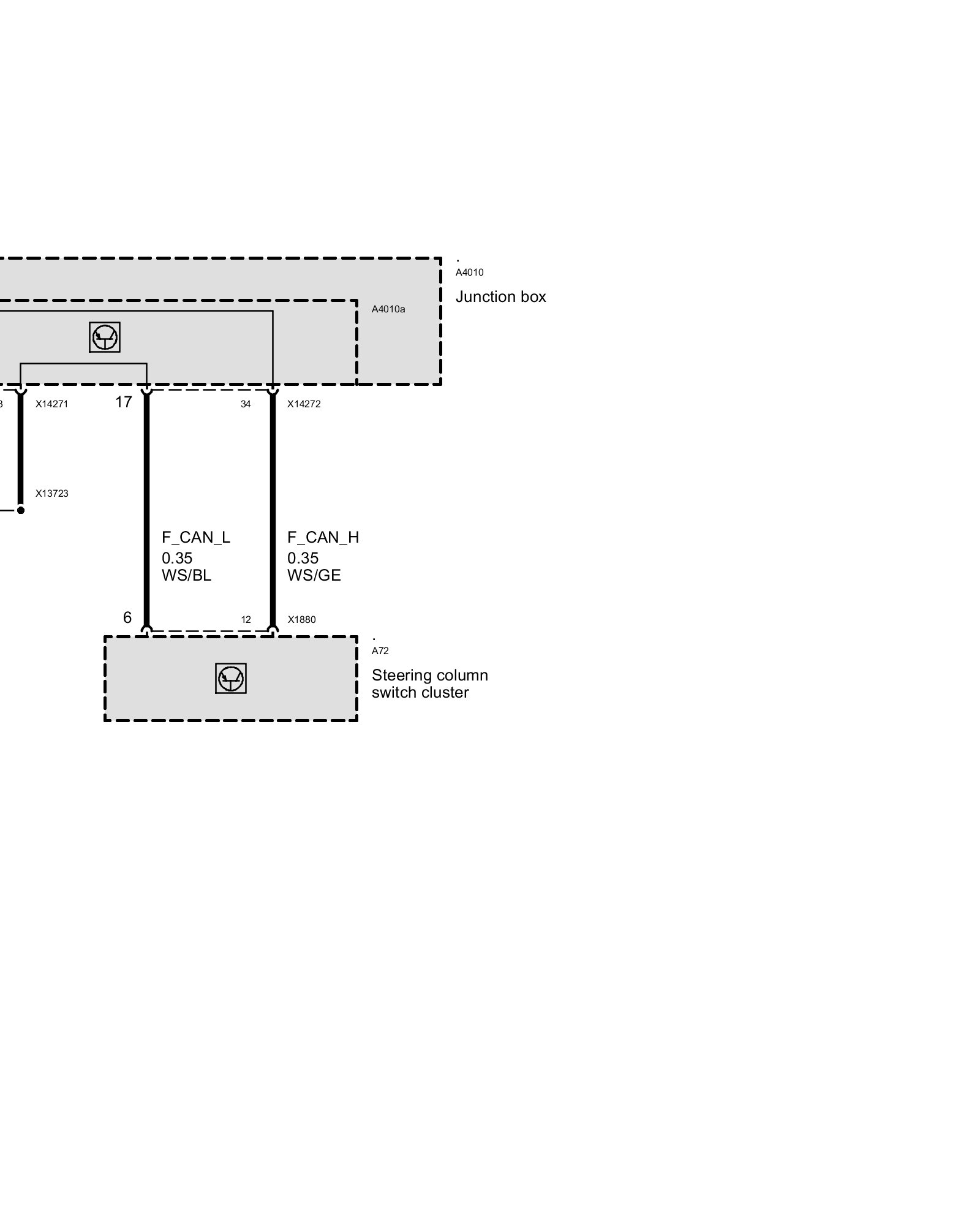

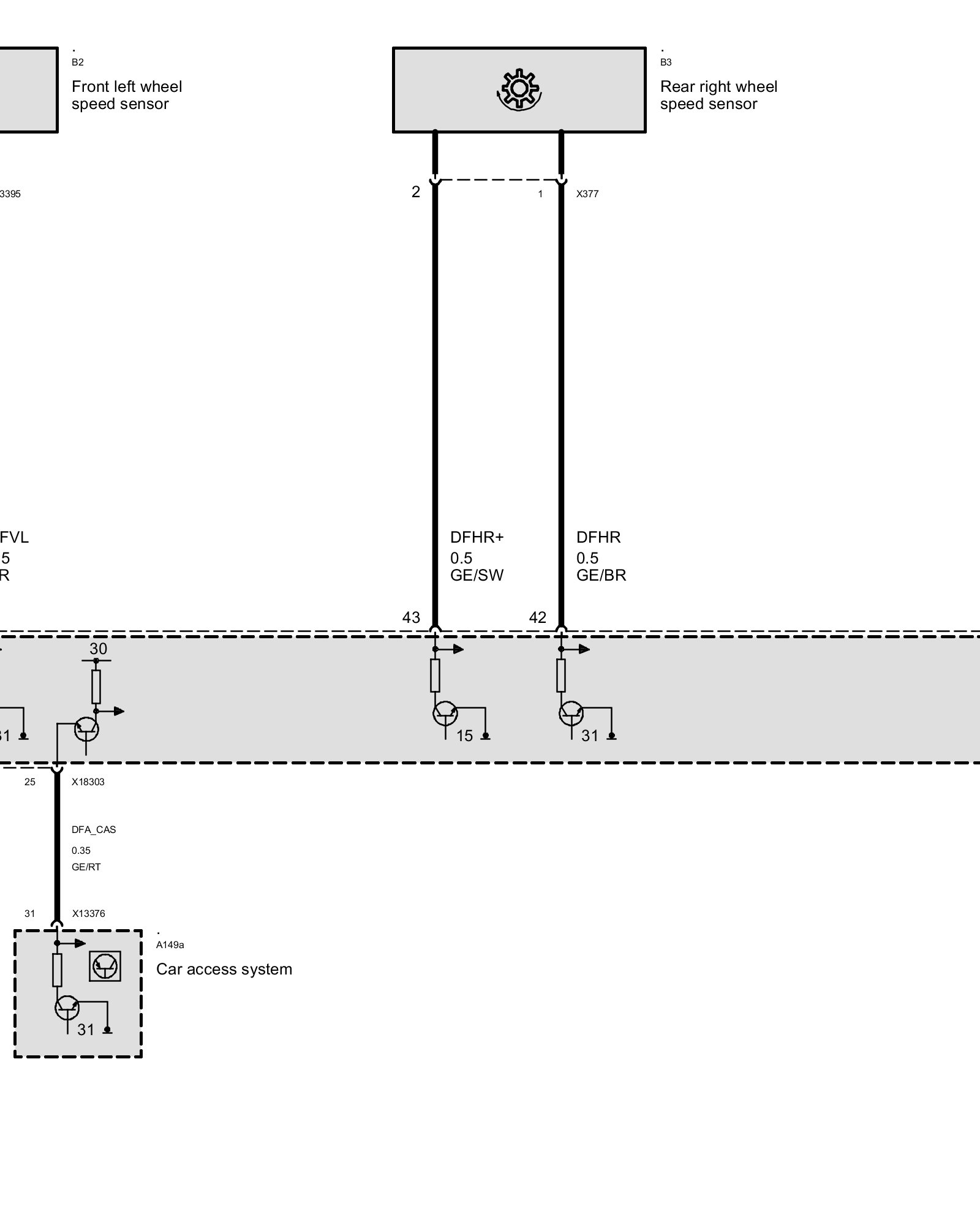

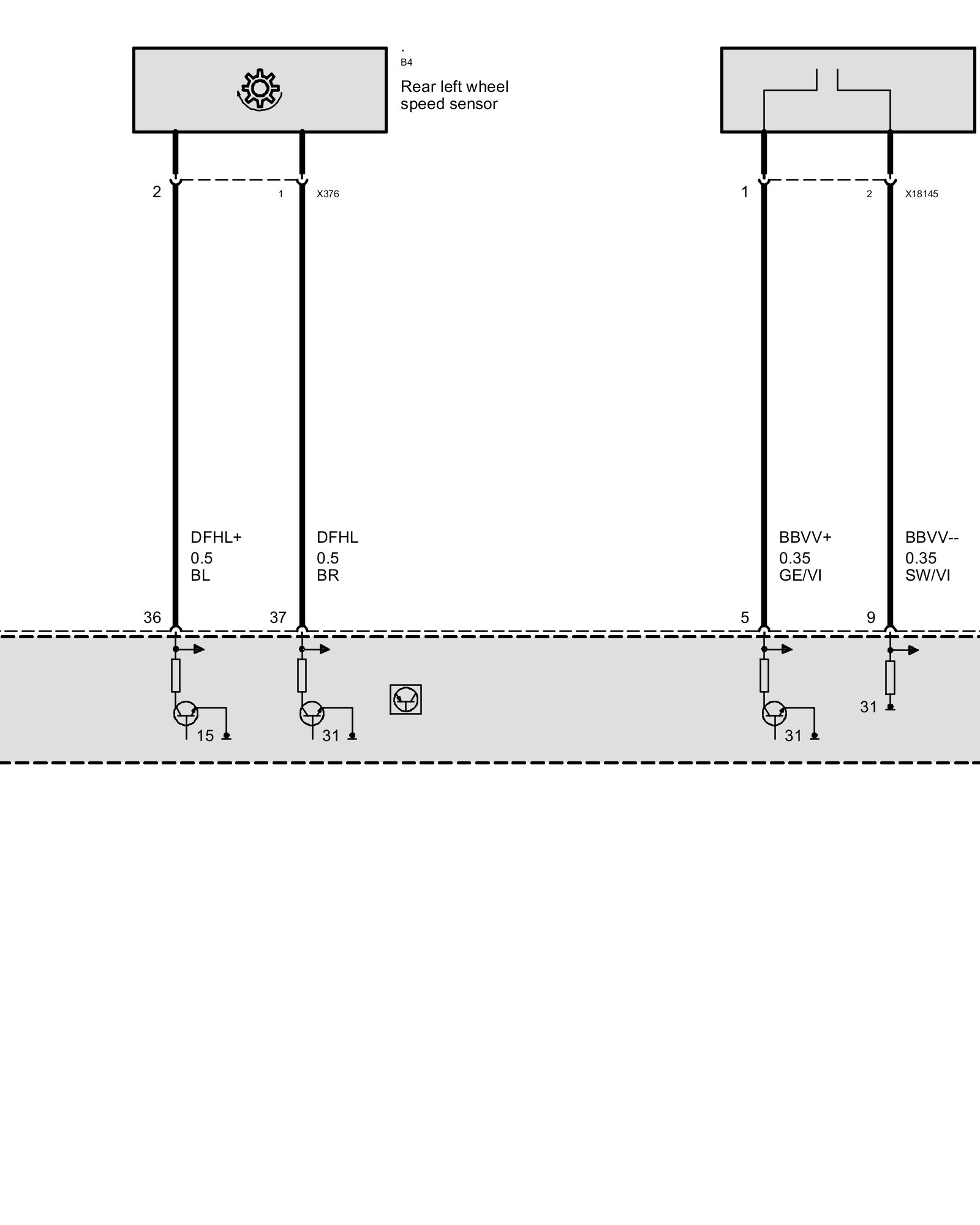

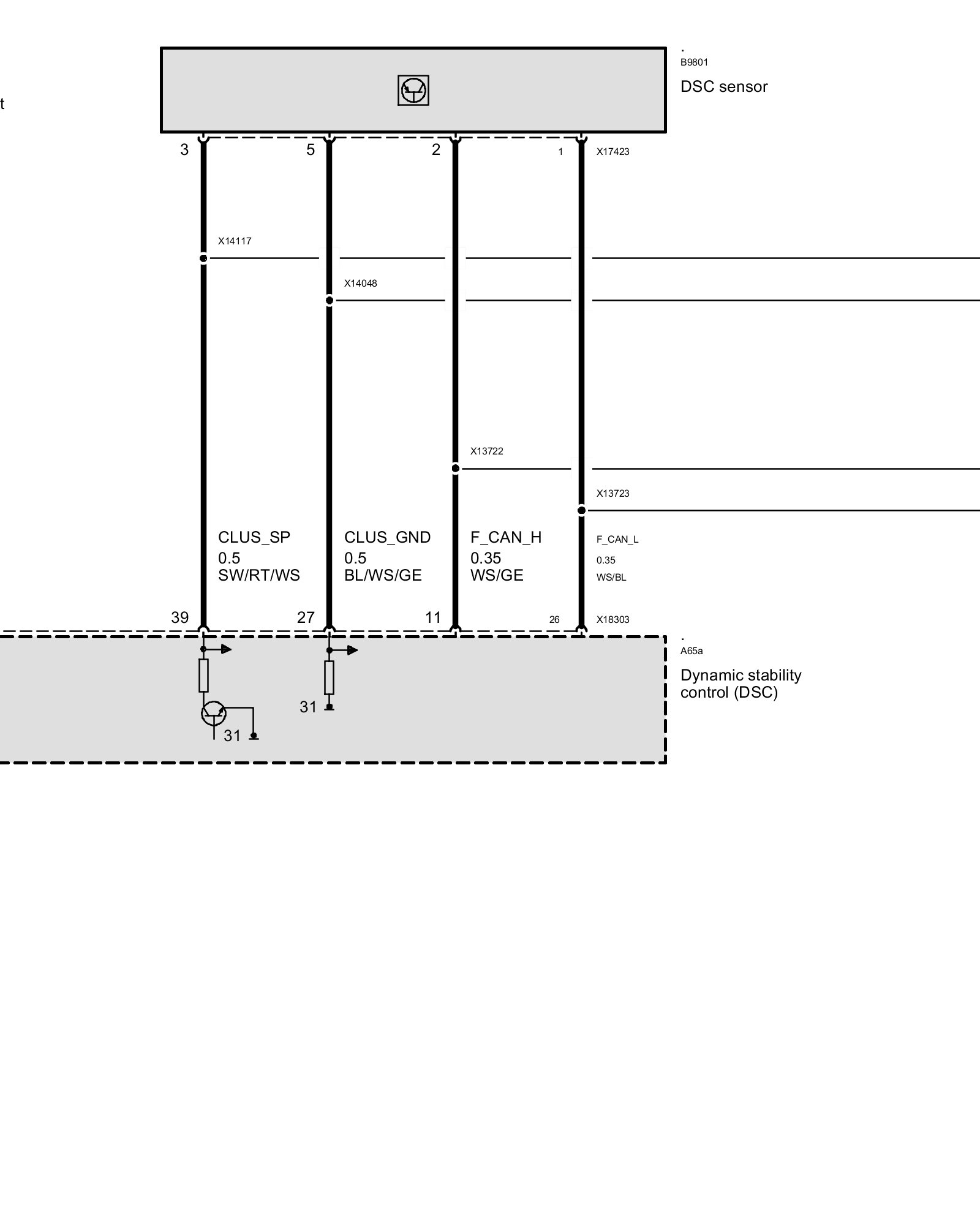

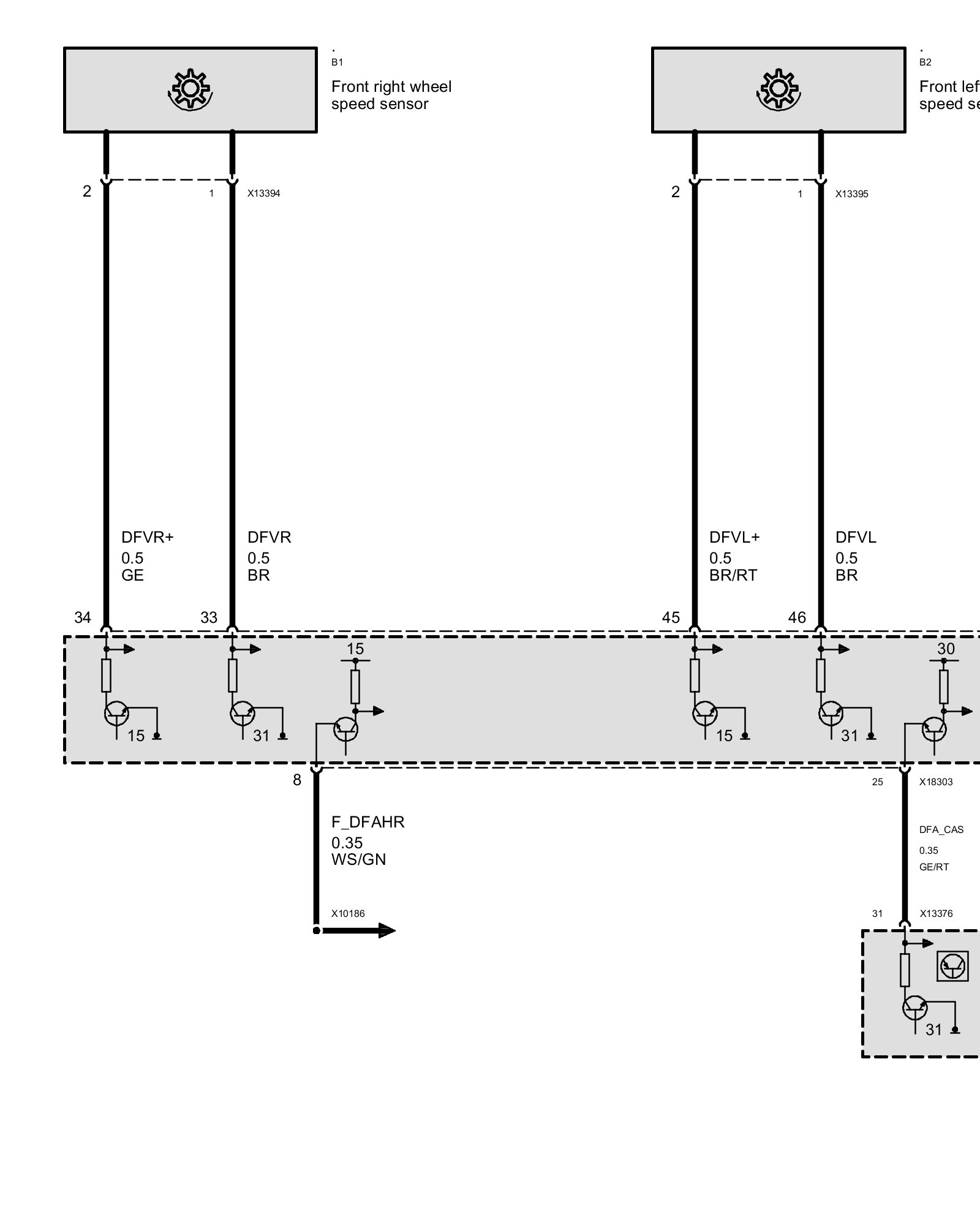

Sensor System
Up to 03/06
As of 03/06 Up to 09/07
As of 09/07
