335is Convertible (E93) L6-3.0L Turbo (N54T)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Accessories and Optional Equipment
>>
Television / Monitor
>>

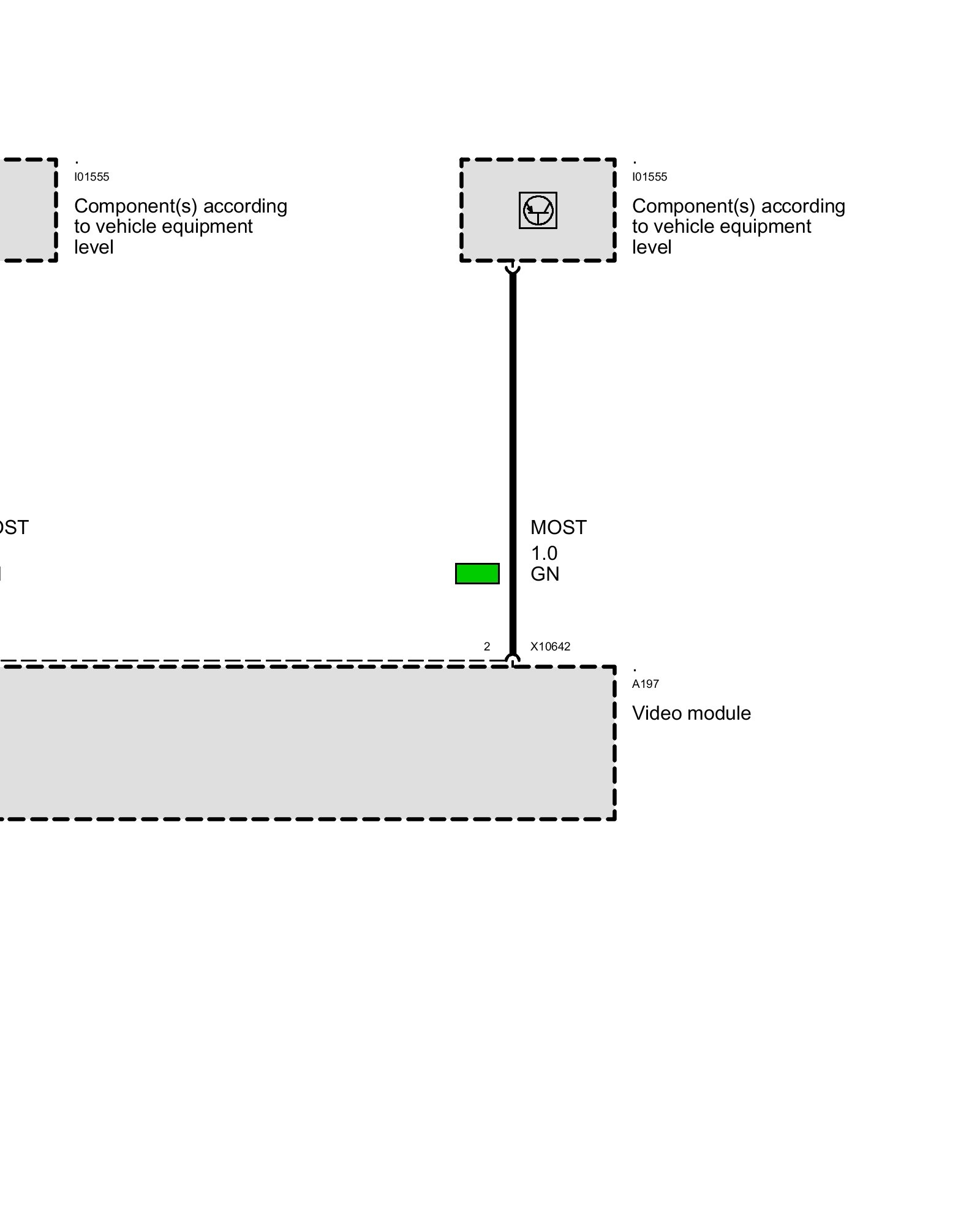

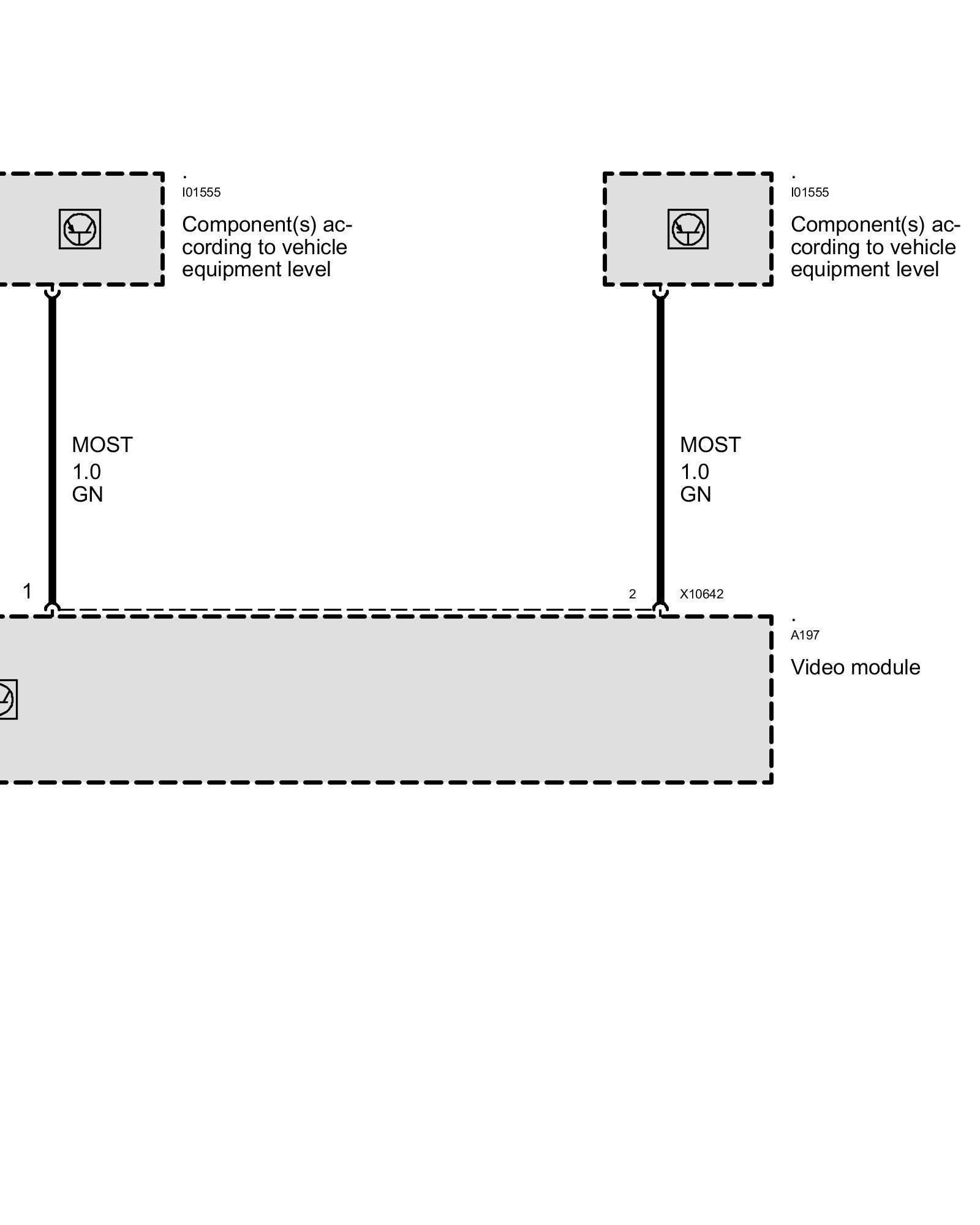

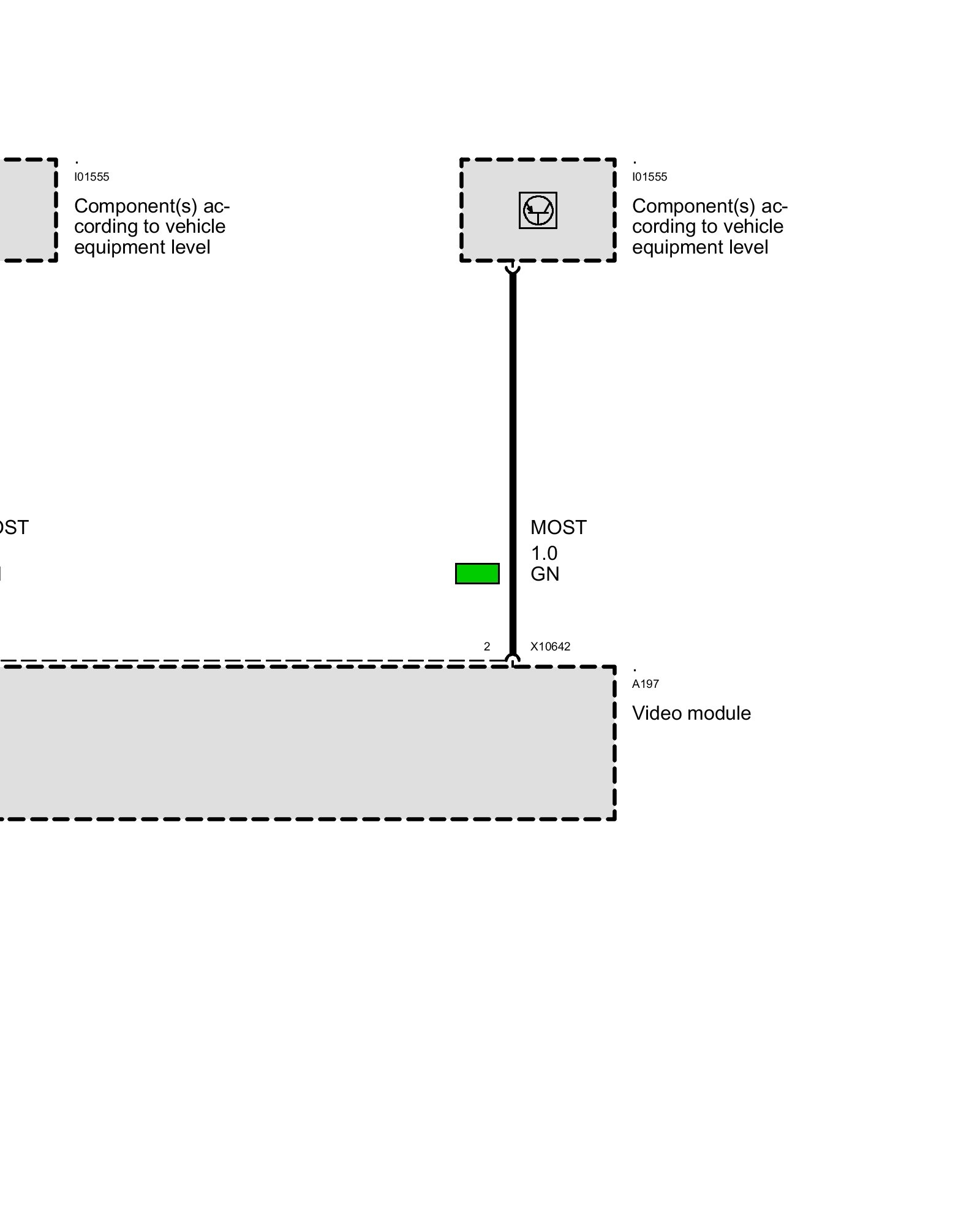

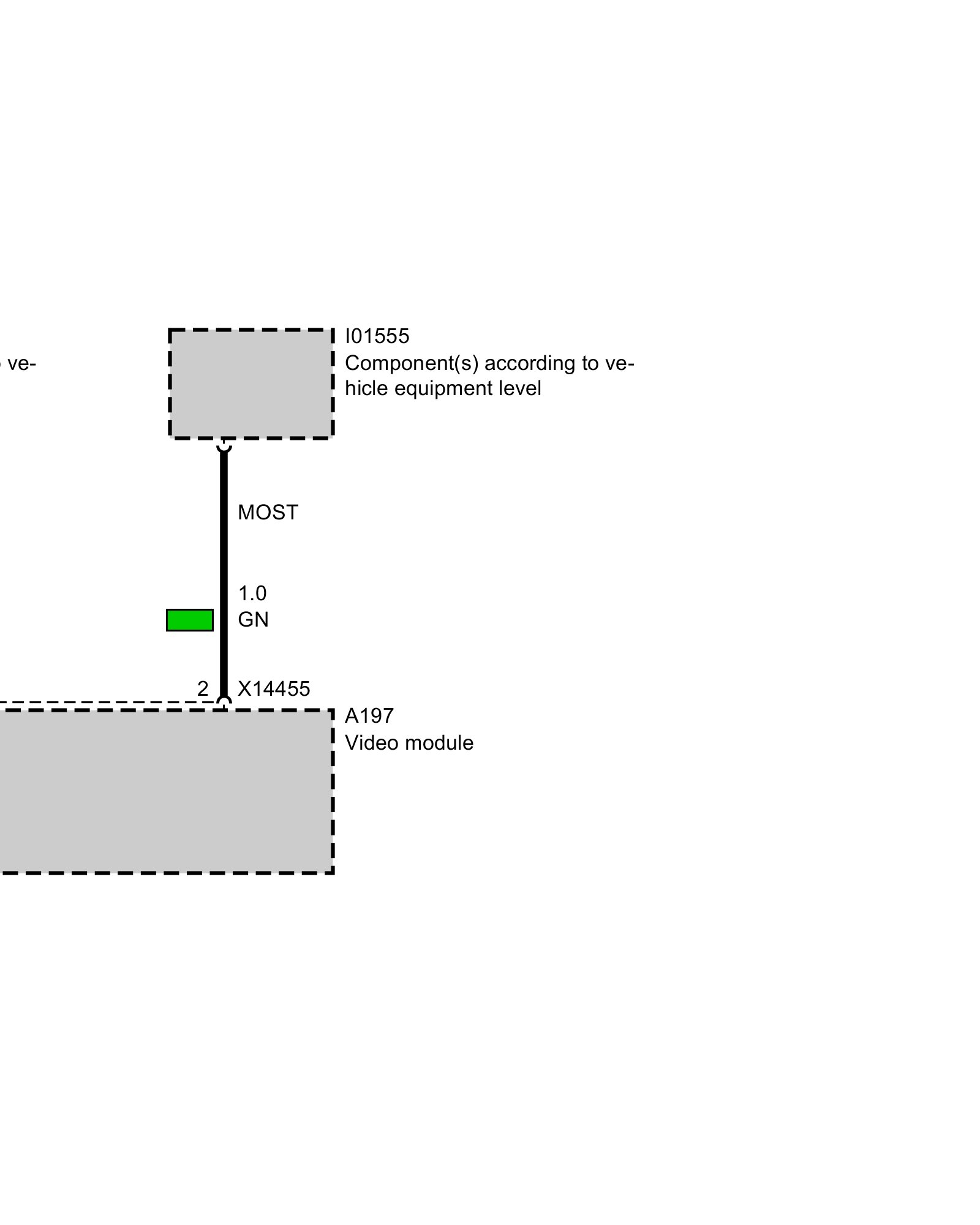

Power Supply VM Video Module
Power Supply VM Video Module
Power Supply VM Video Module

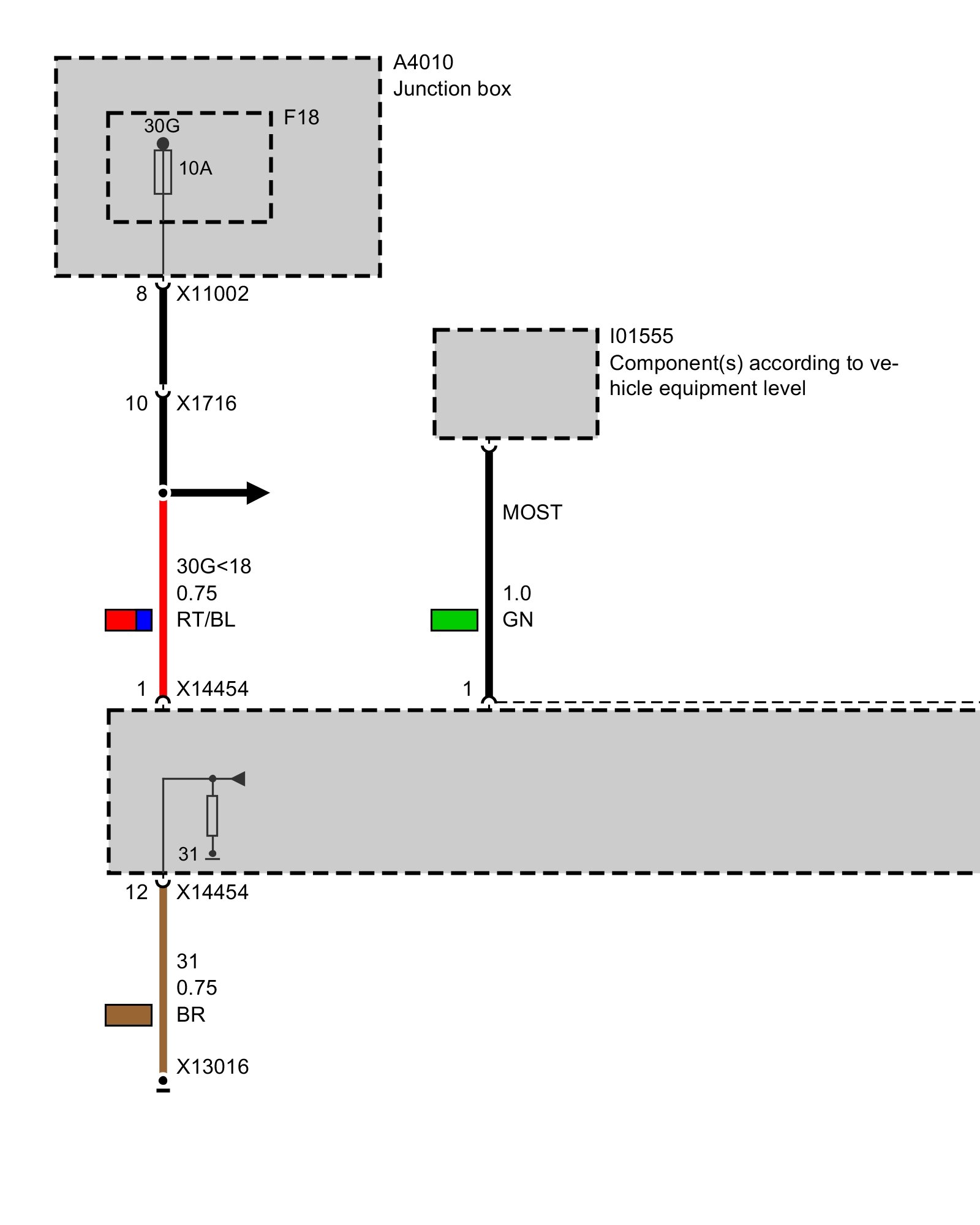

Up to 03/07

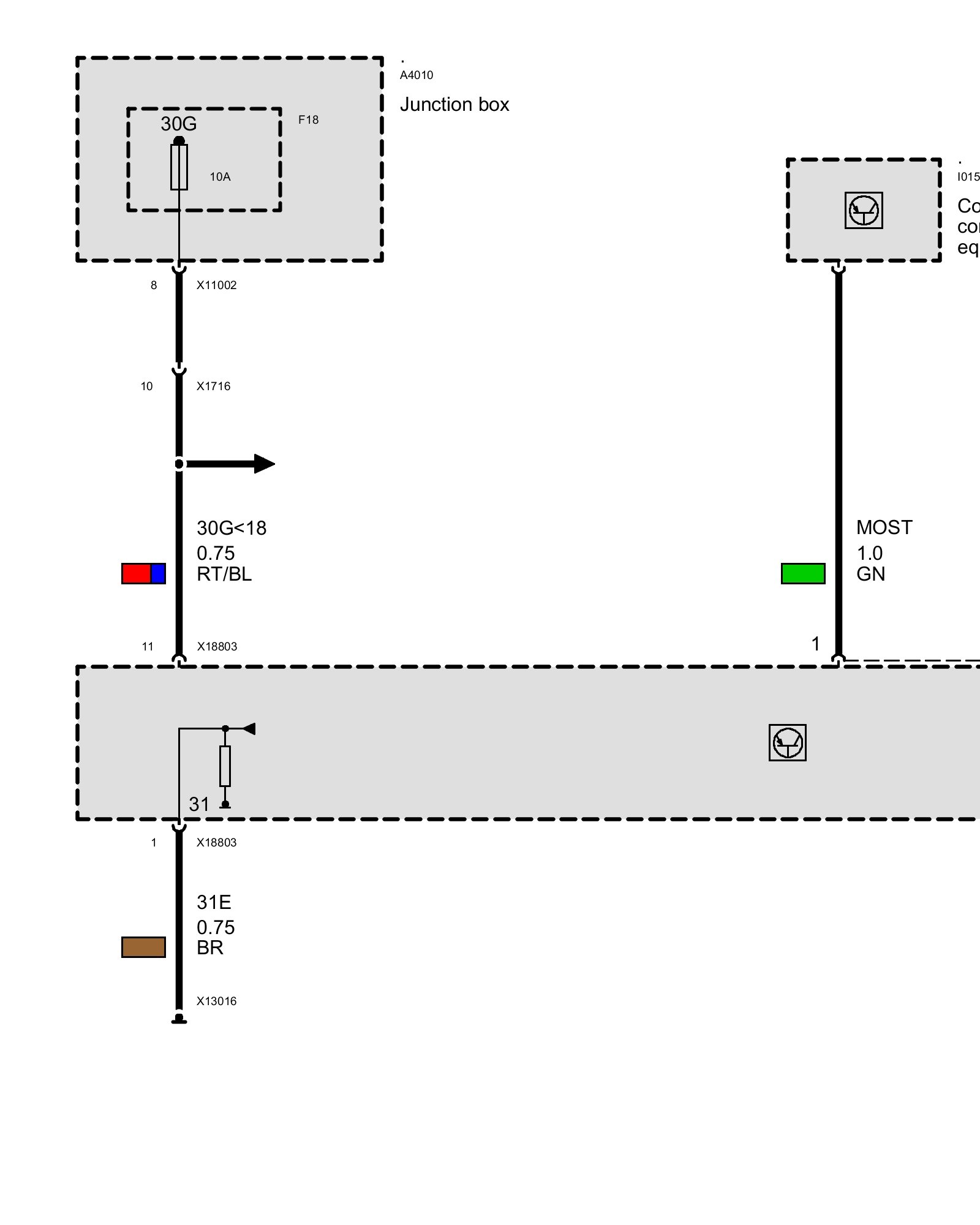

As of 03/07 Up to 09/07

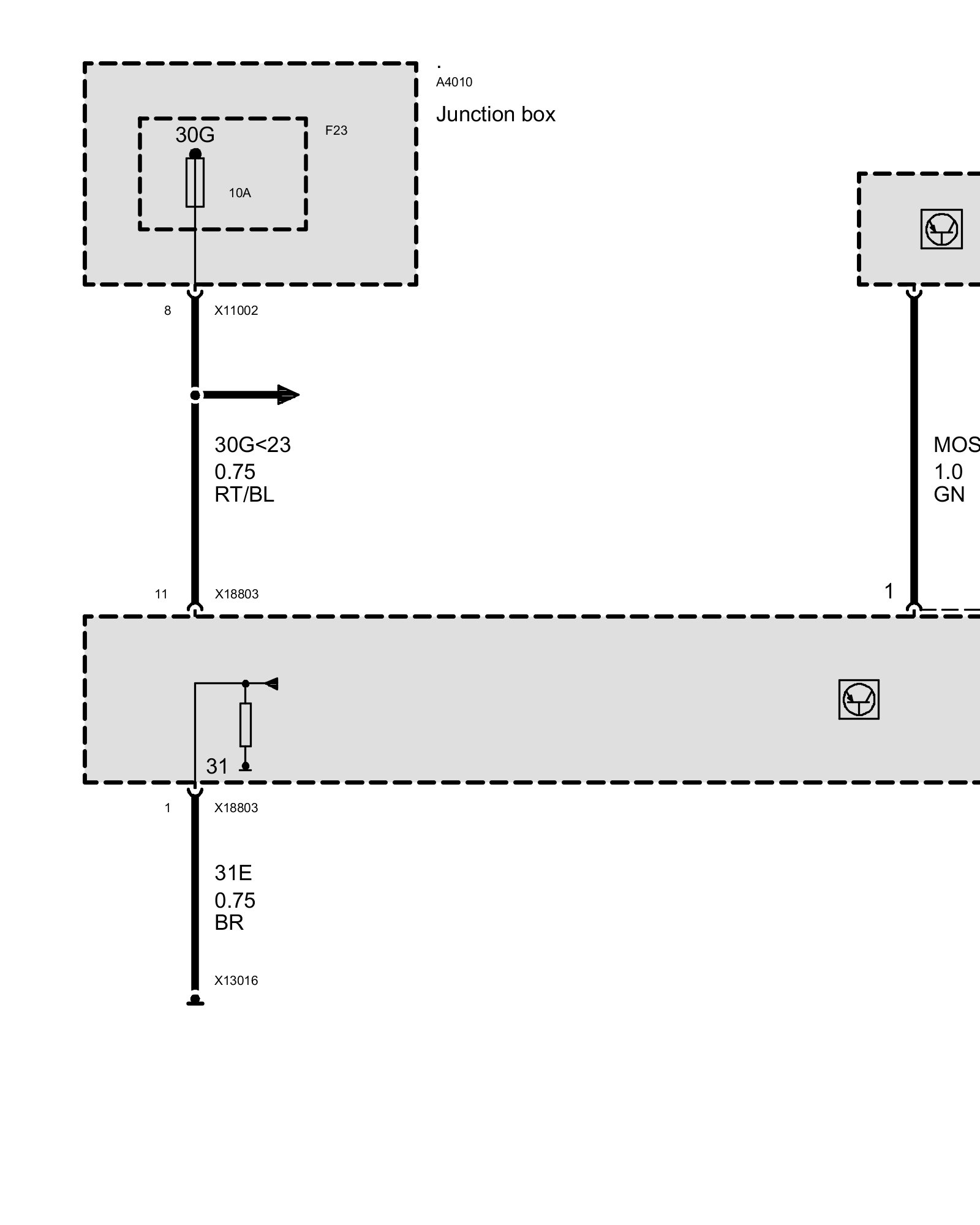

As of 09/07
As of 09/09
