335is Convertible (E93) L6-3.0L Turbo (N54T)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Accessories and Optional Equipment
>>
Cellular Phone
>>

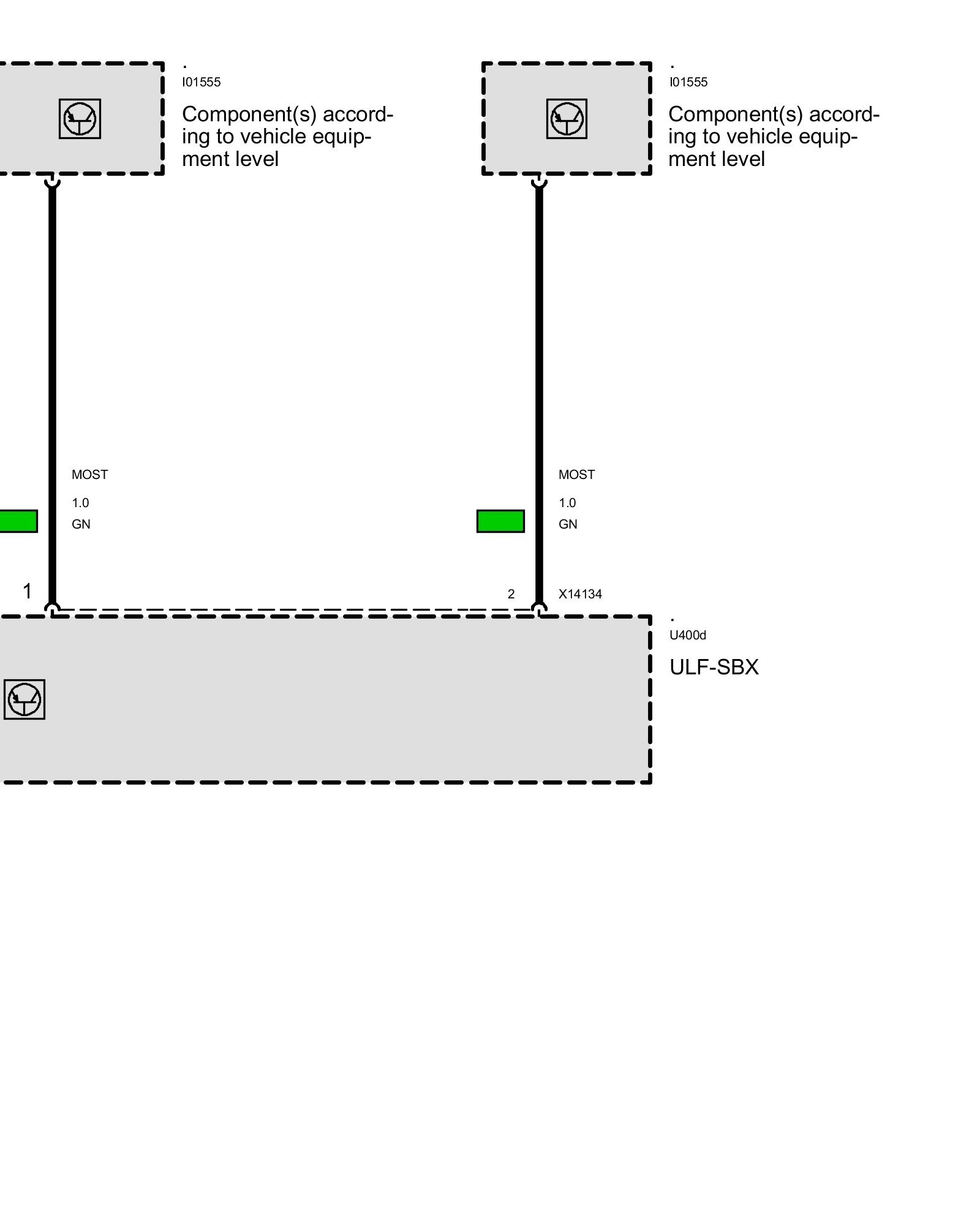

Power Supply, ULF Interface Box

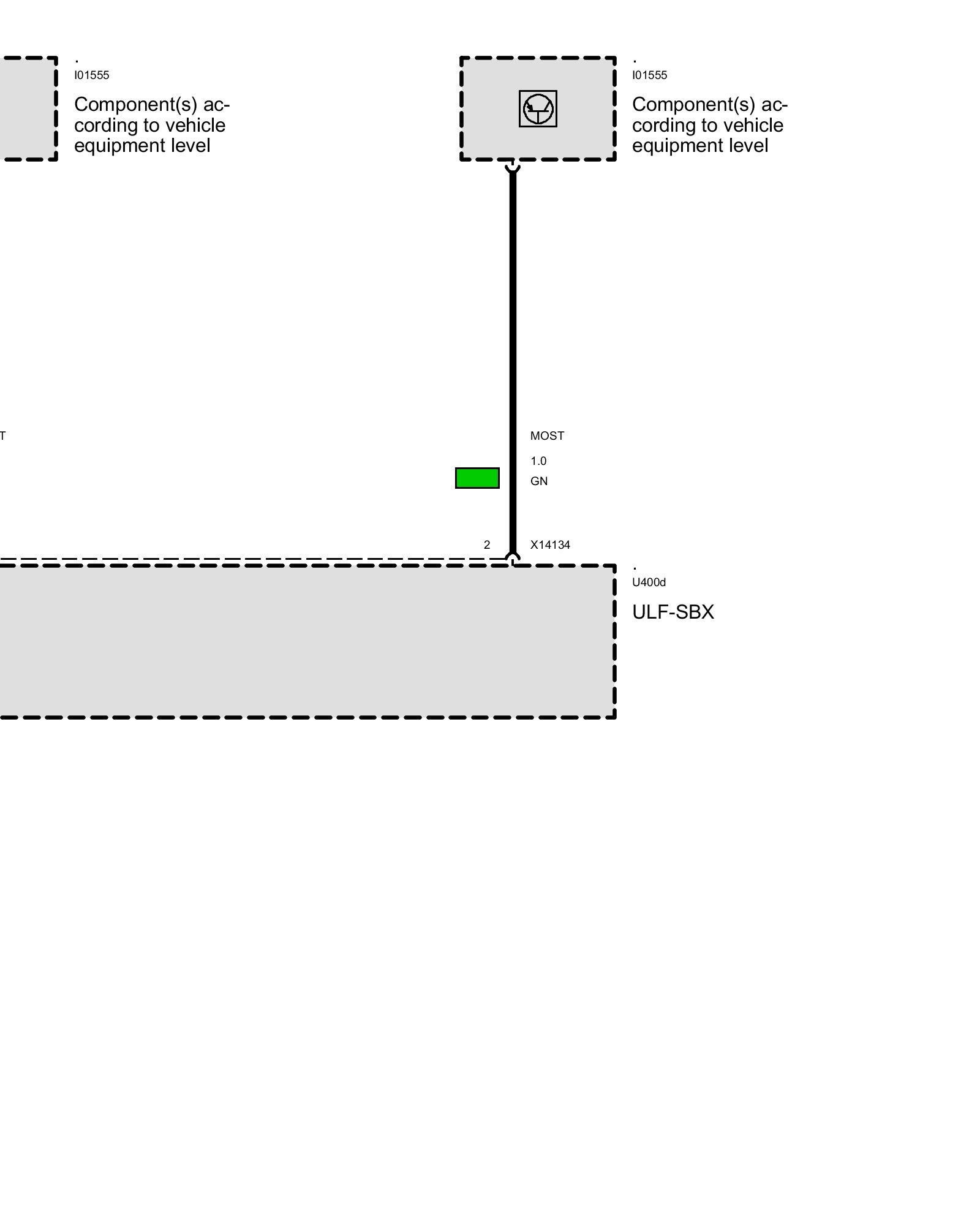

Power Supply, ULF Interface Box

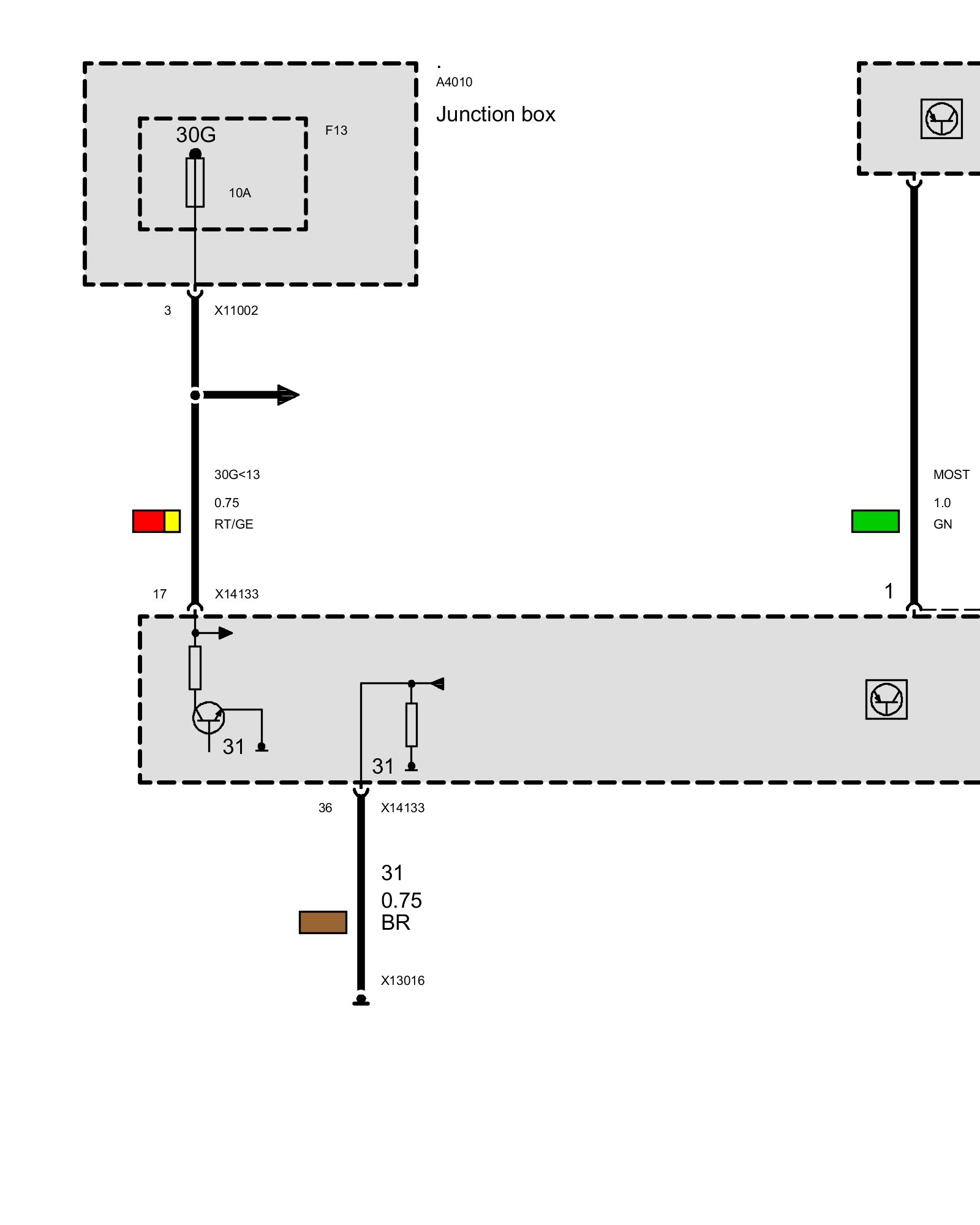

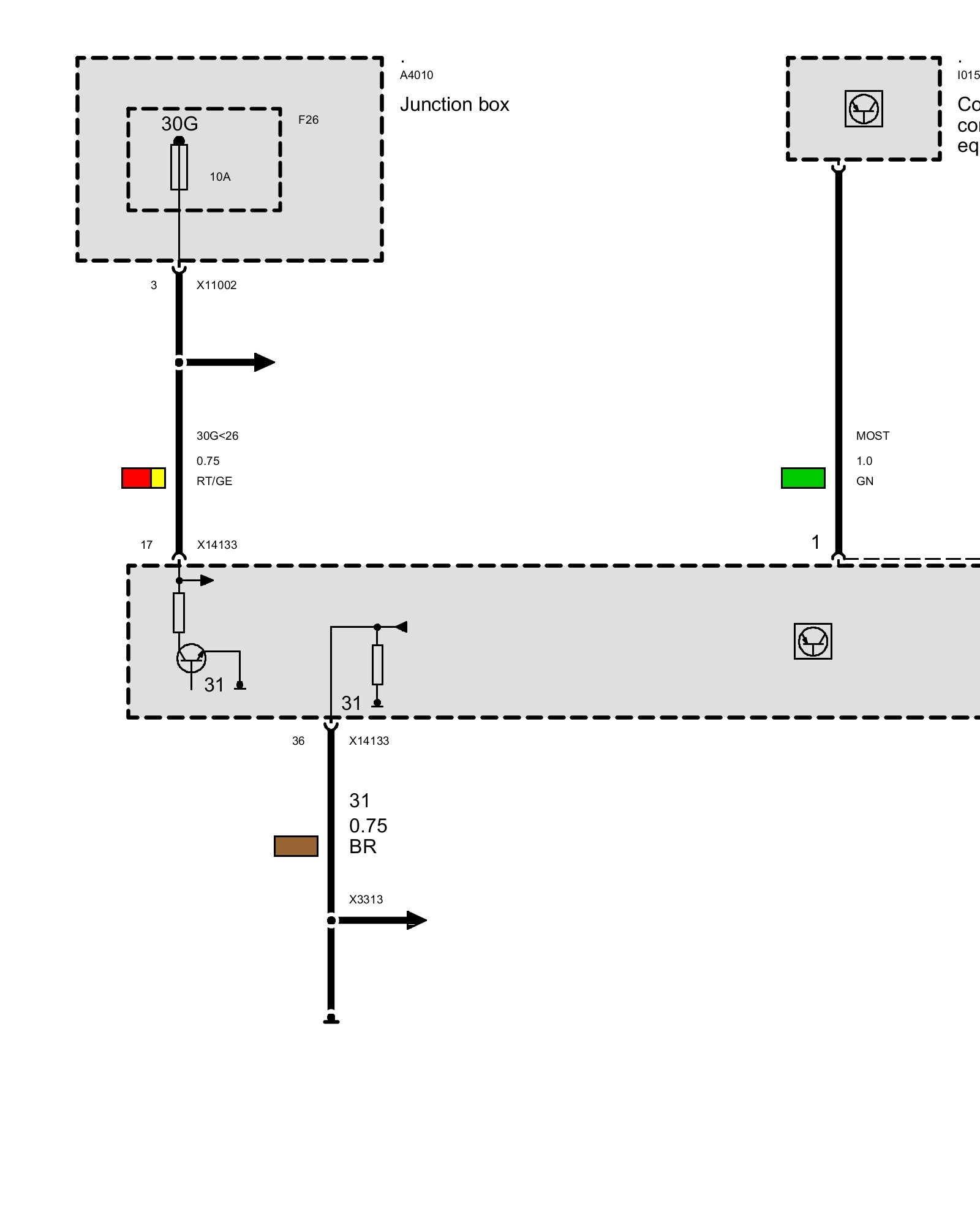

Power Supply, ULF Interface Box
Up to 09/07
As of 09/07
