Auxiliary Input / Output Jack, Entertainment System
Auxiliary Input / Output Jack, Entertainment System

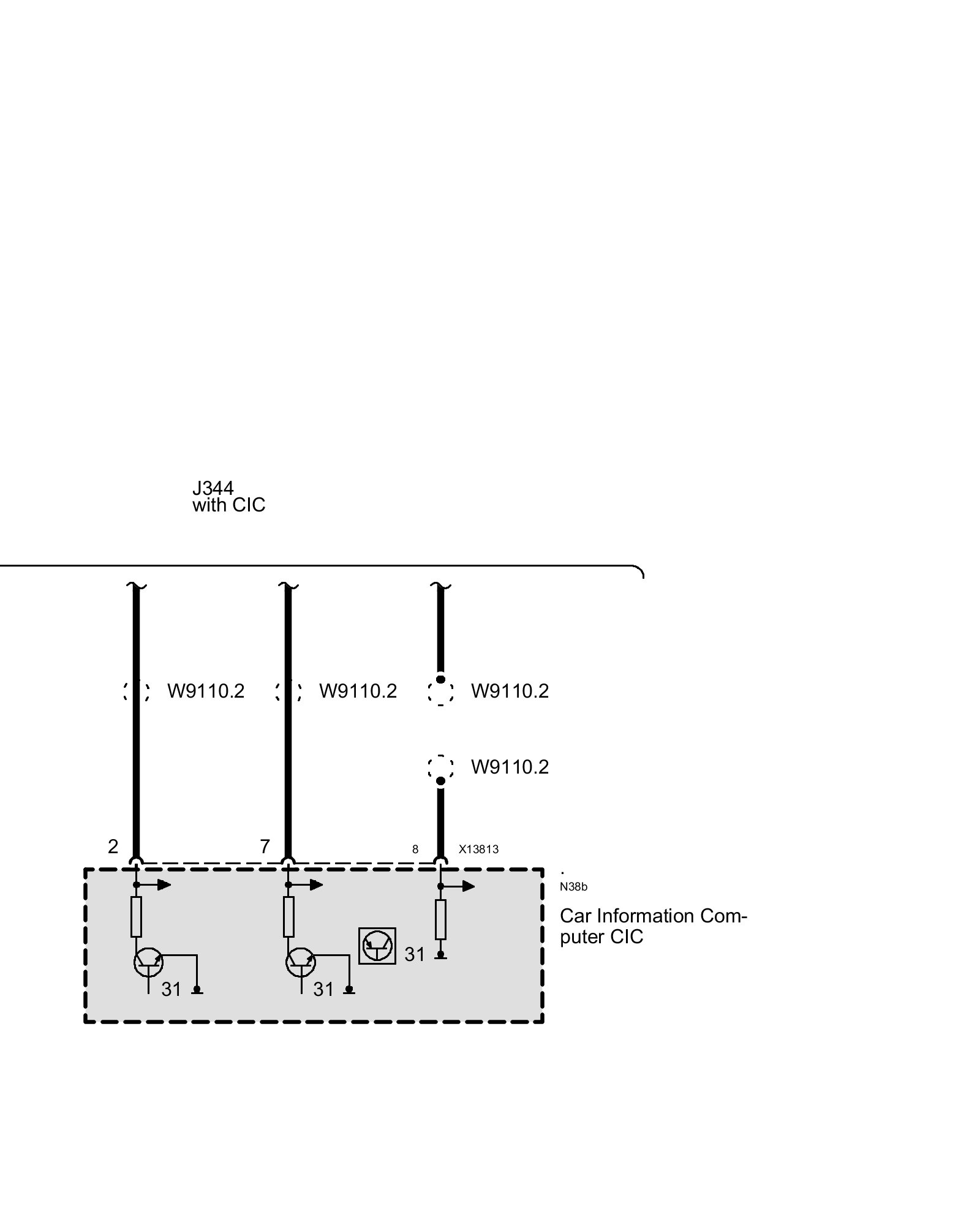

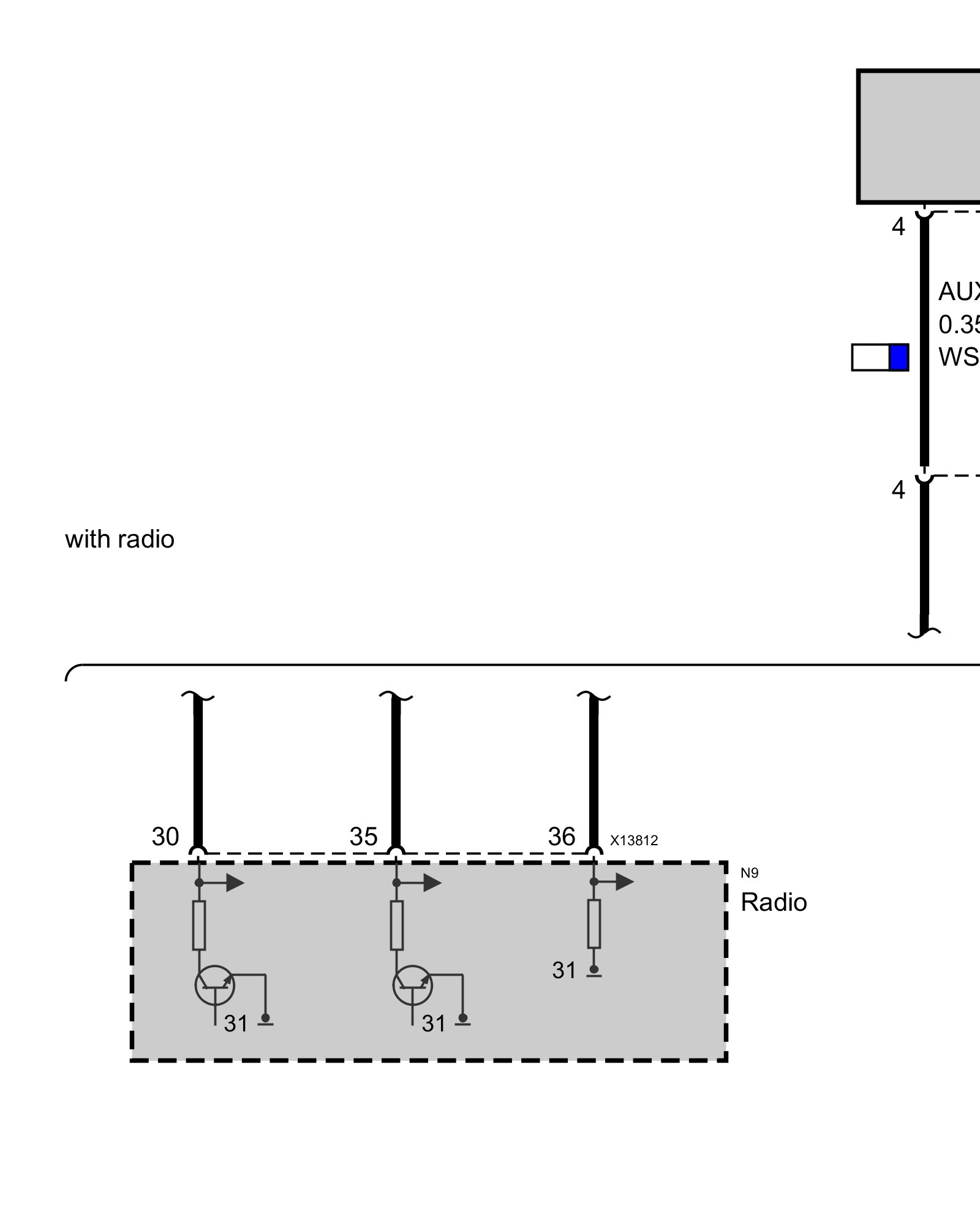

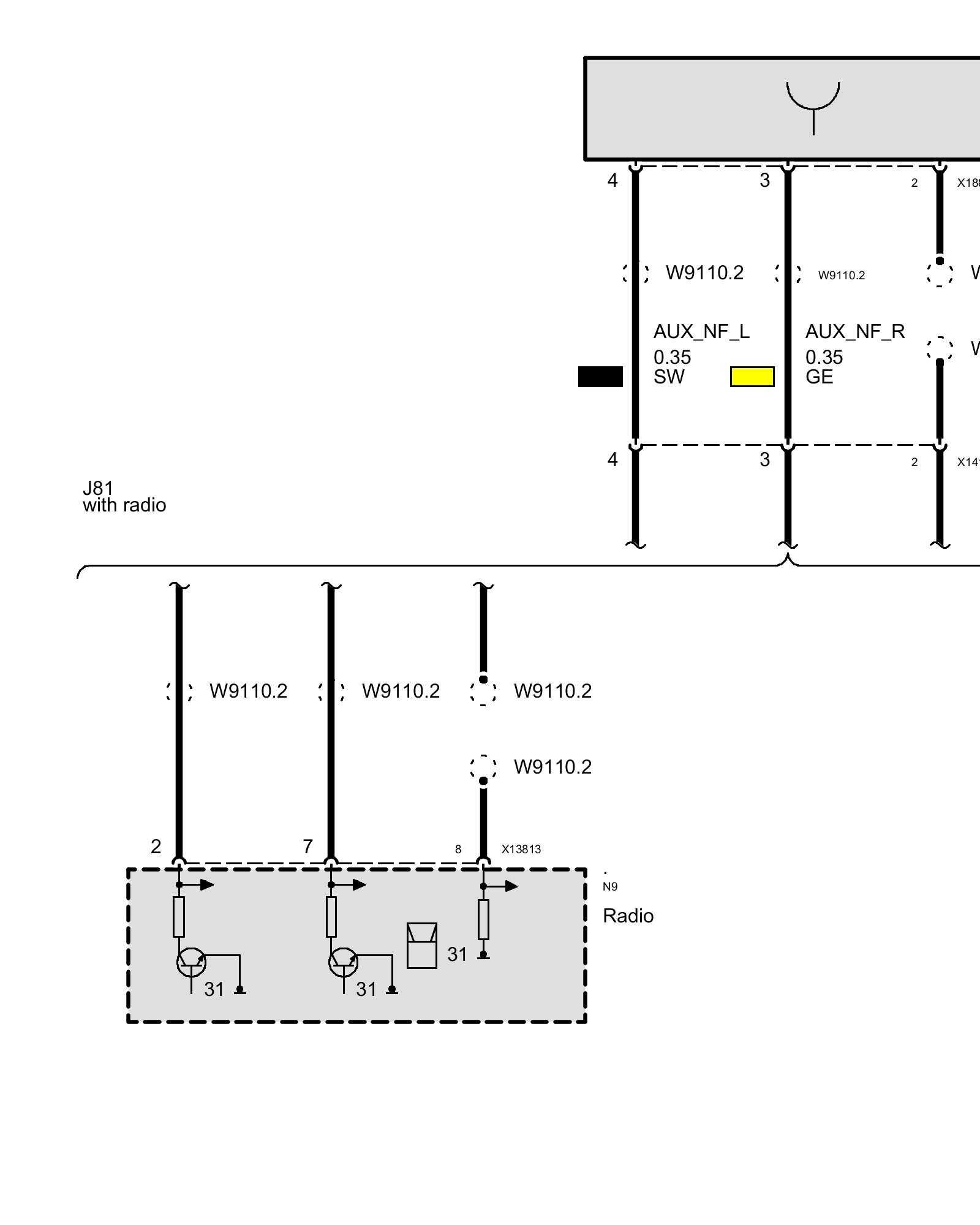

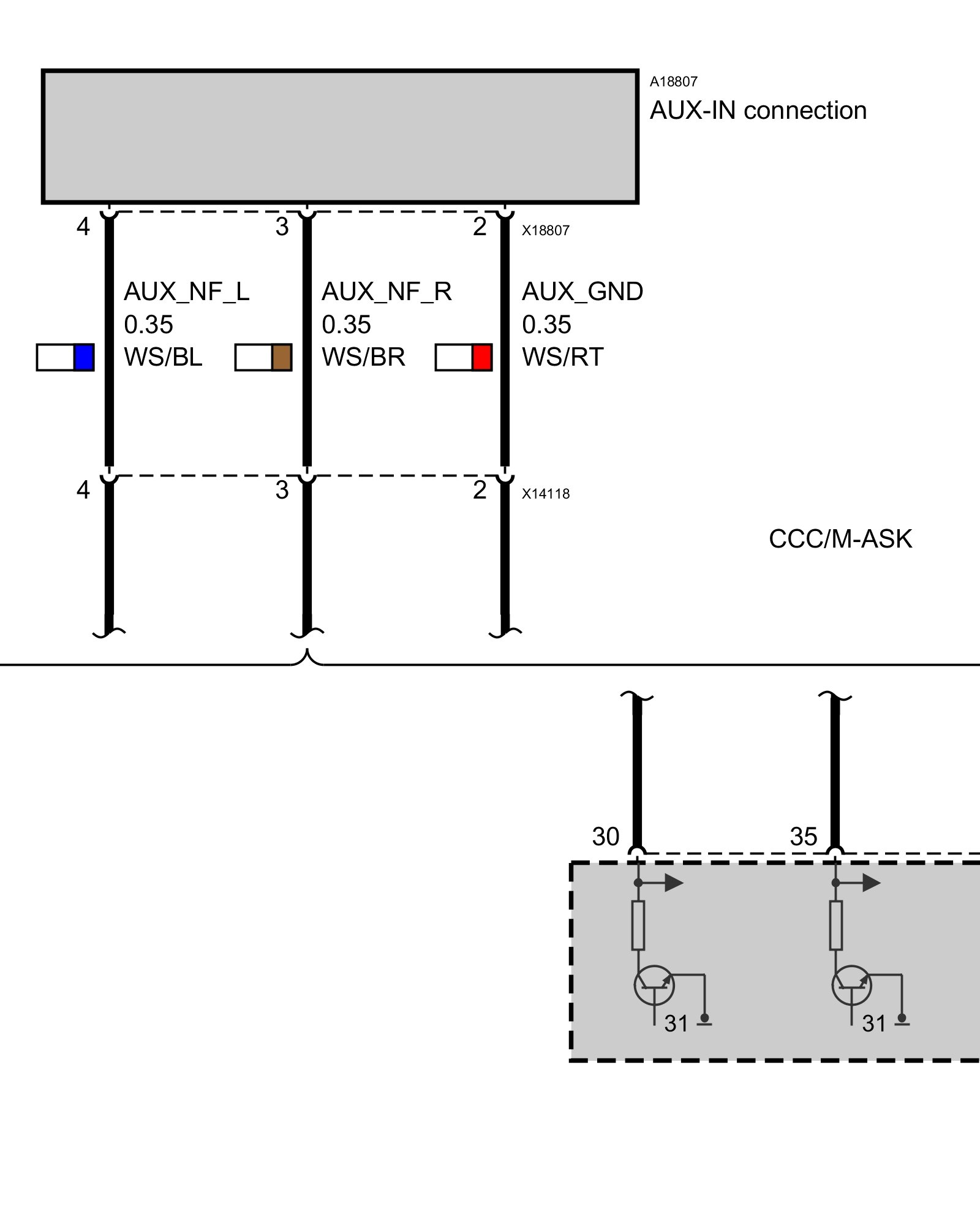

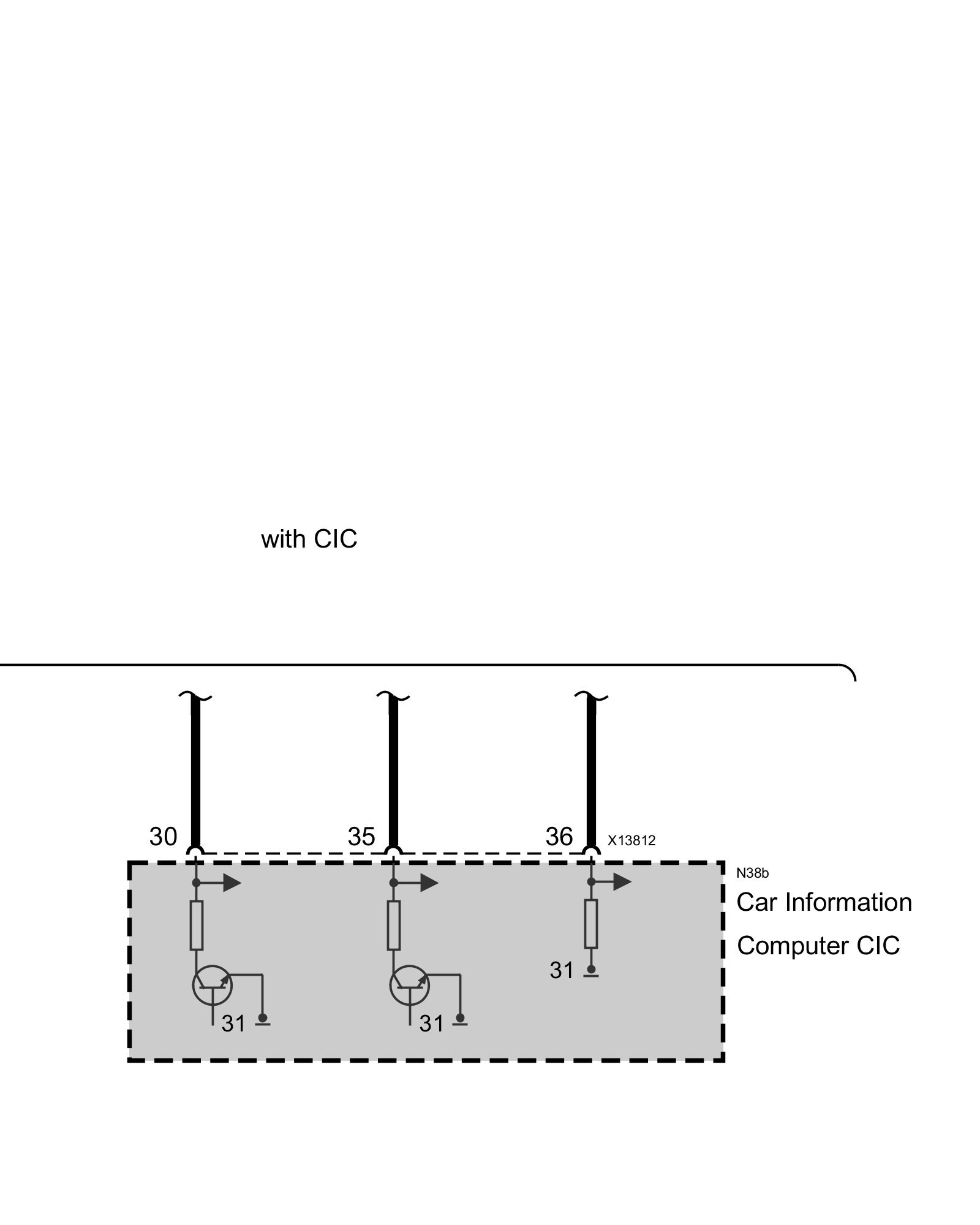

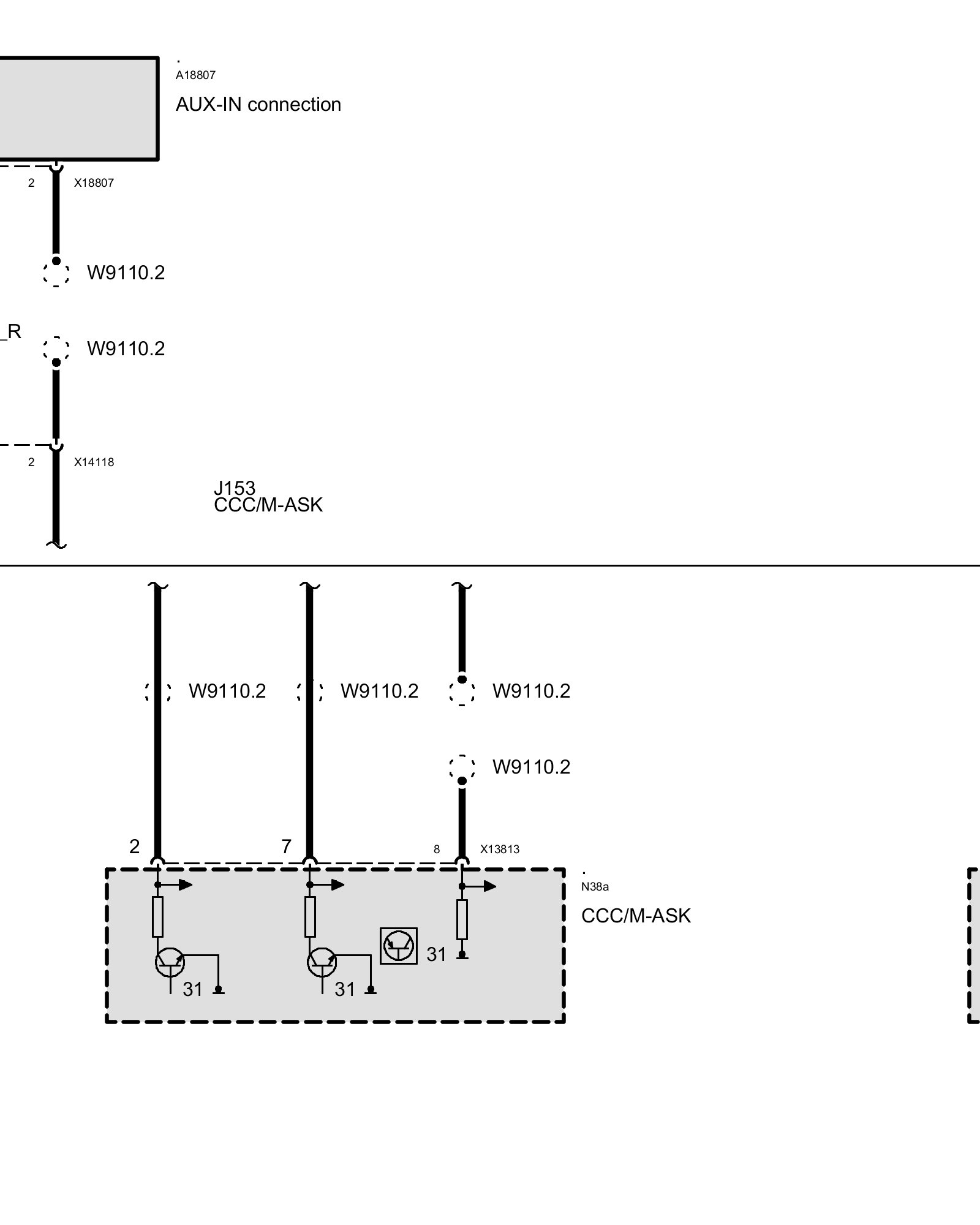

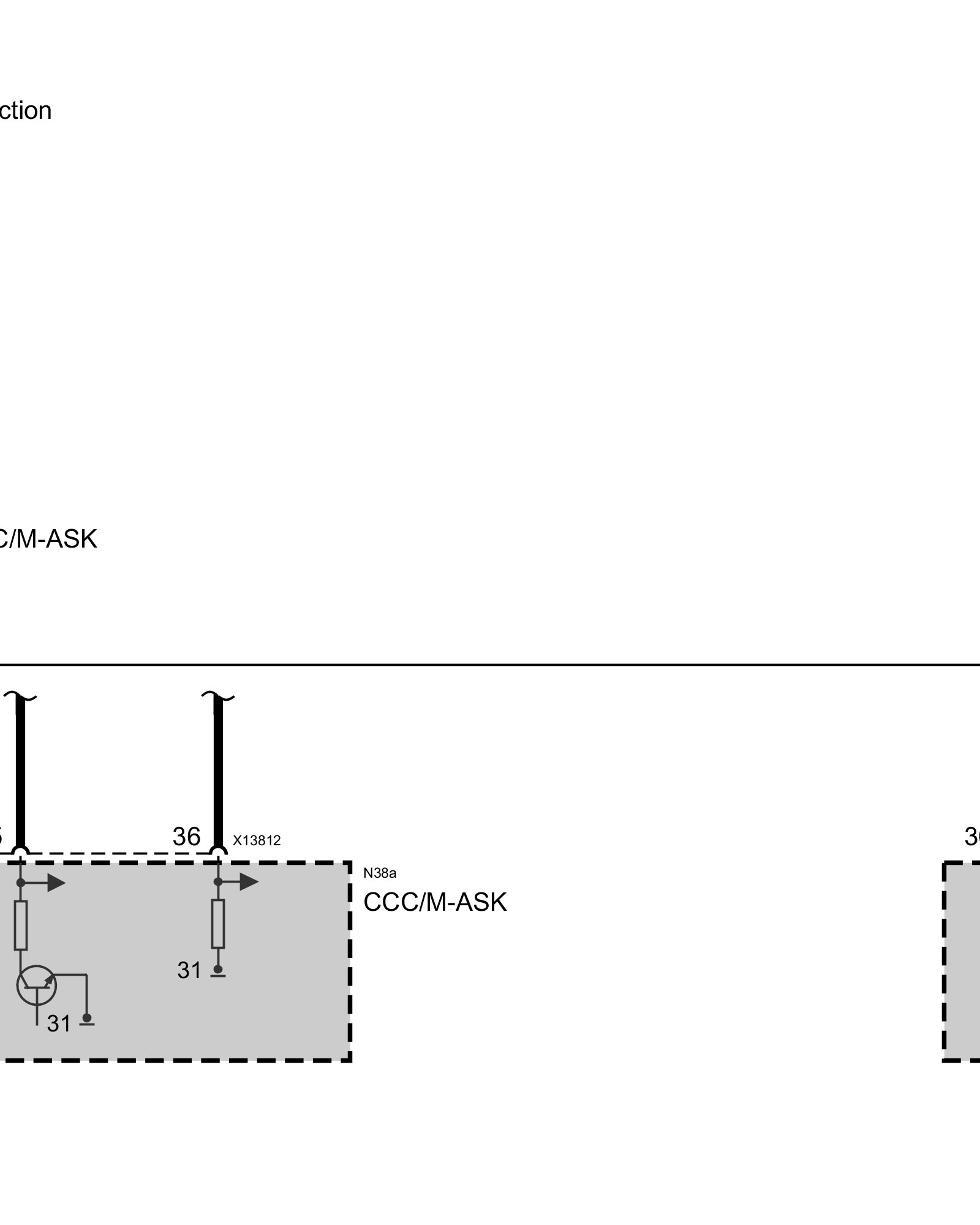

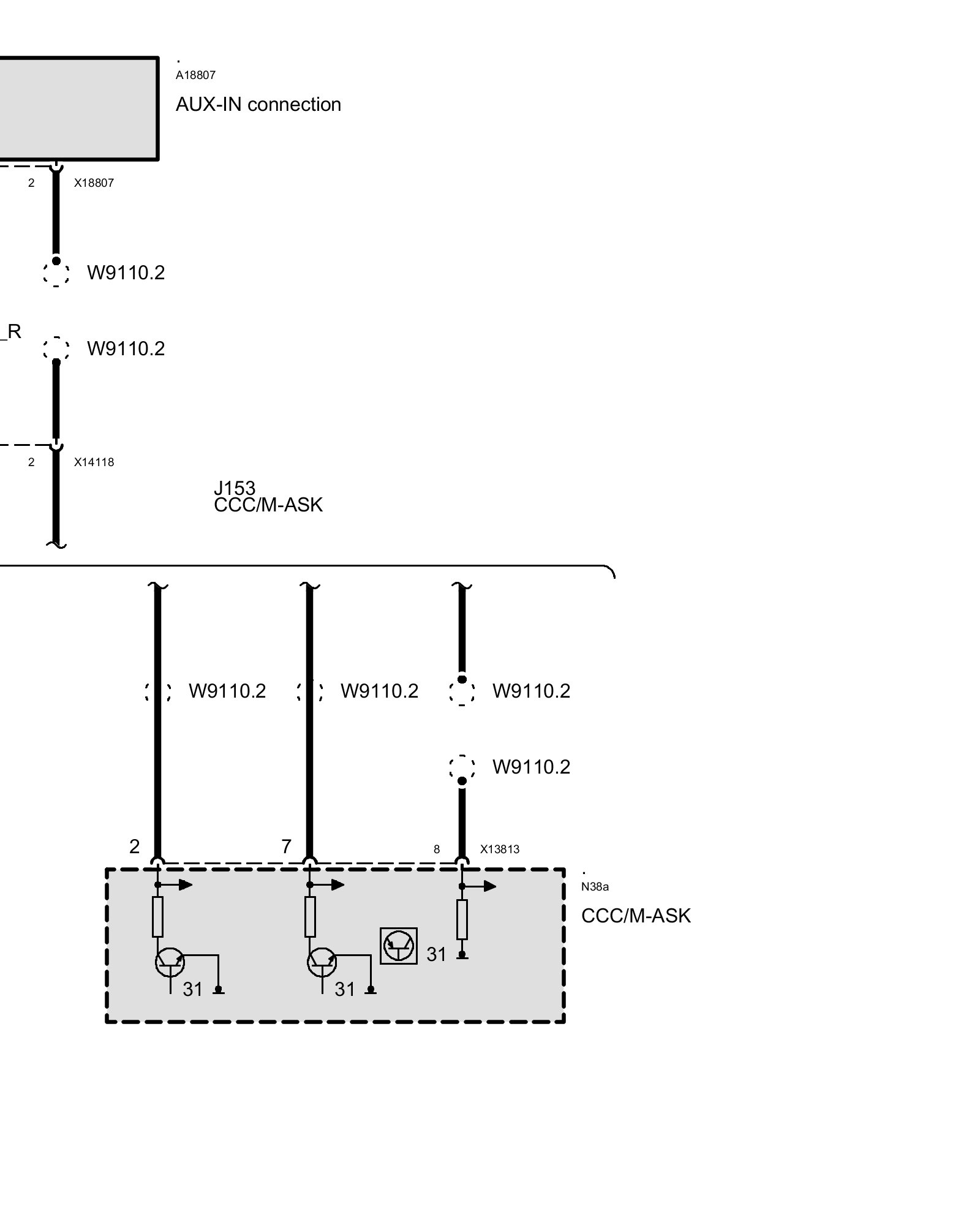

AUX-IN Connection
Up to 09/08
As of 09/08 Up to 03/09
As of 03/09
