335is Convertible (E93) L6-3.0L Turbo (N54T)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connectors From X1
>>

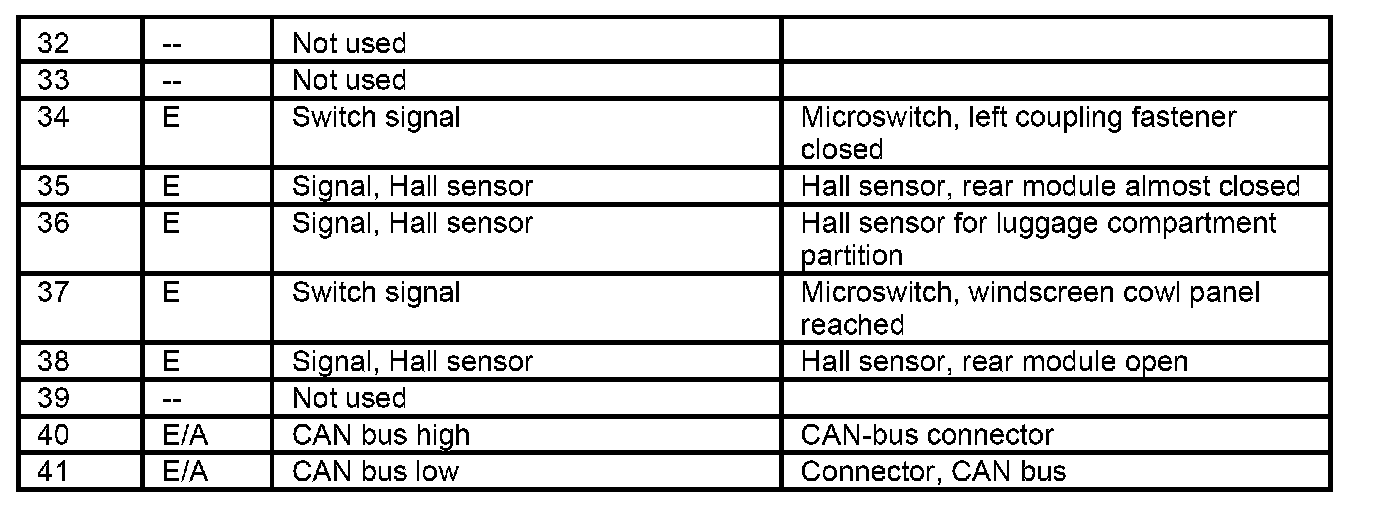

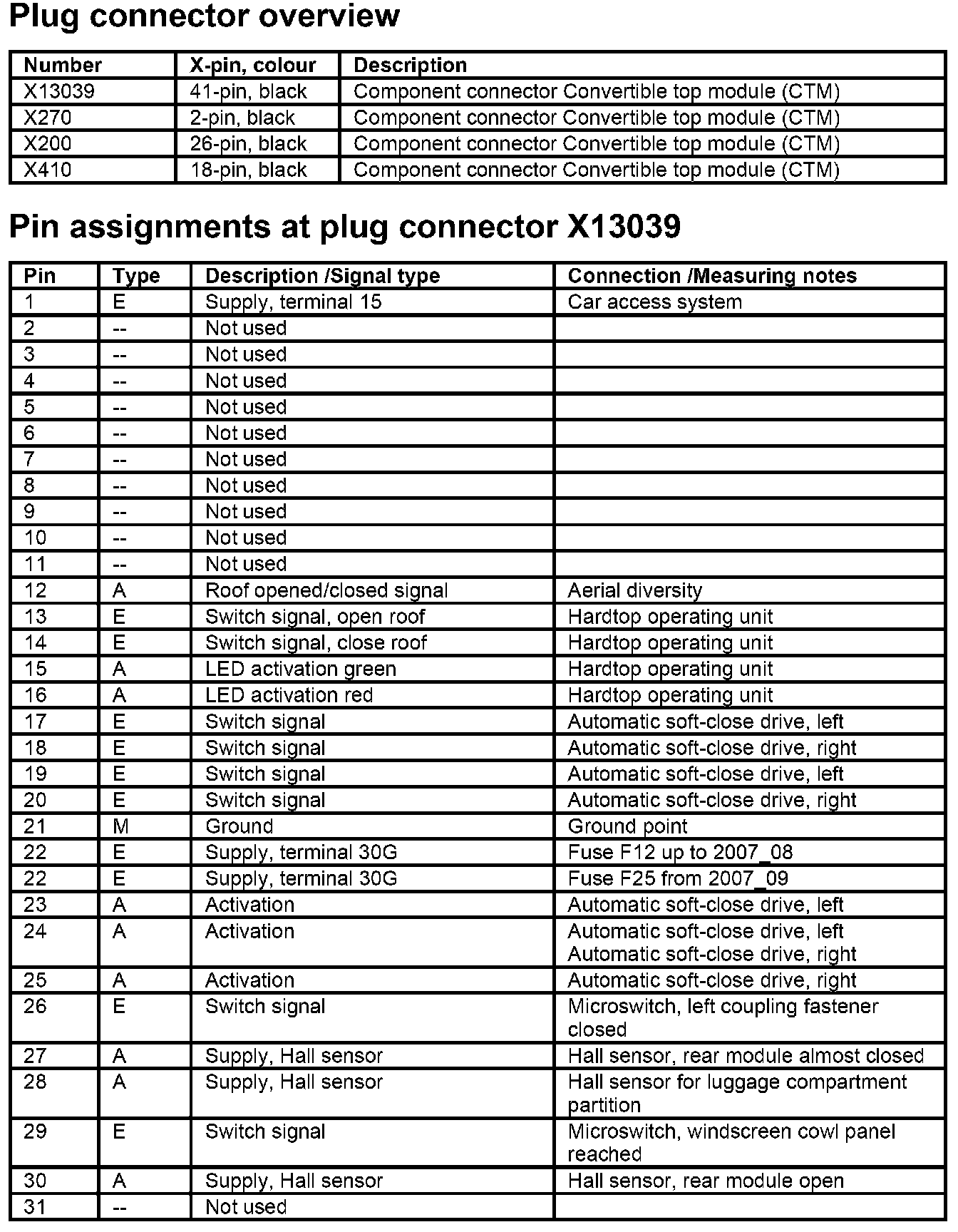

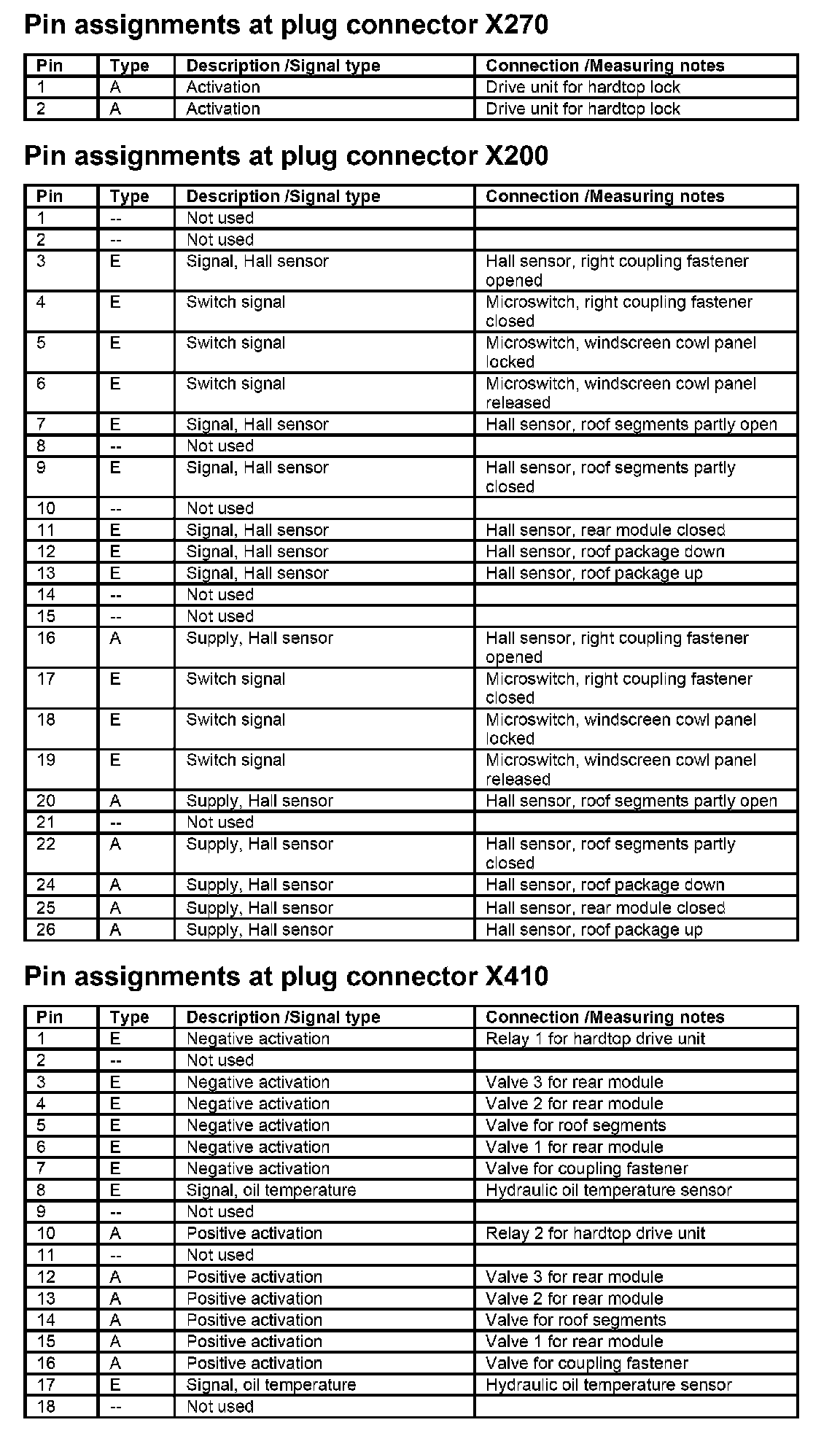

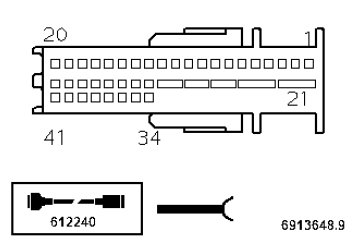

X13039
X13039
X13039
A96A
Convertible Top
Module (CTM)
