34 41 250 Removing and Installing/Replacing Expander For Parking Brake Shoes
34 41 250 Removing and installing/replacing expander for parking brake shoesSpecial tools required:
Necessary preliminary tasks:
^ Remove parking brake shoes
Lock adjuster unit (ASZE).

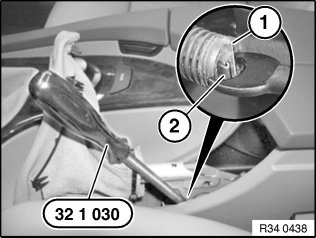

Actuate parking brake lever. Insert special tool 32 1 030. Press stop (1) of adjusting spring back to such an extent that retaining hook (2) engages in stop (1).
Installation:
Unlock adjuster unit (ASZE).
Lever out restraining hook (2) with a suitable screwdriver.
Restraining hook (2) must detach from stop (1) of adjusting spring.

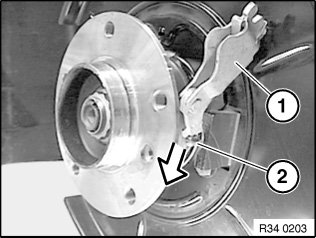

Pull brake shoe expander (1) forward, disconnect parking brake Bowden cable (2) and remove brake shoe expander.
After installation:
^ Adjusting parking brake
