34 32 881 Replacing Front Left or Right Brake Hose

34 32 881 Replacing front left or right brake hose





Note:
^ Read and comply with General Information.

After completing work: Bleed braking system

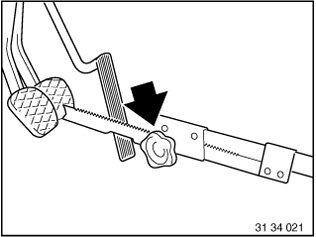

Press clutch pedal down to floor and secure with pedal support.

Note:
The pedal support may only be released when the brake lines are reconnected.

This prevents brake fluid from emerging from the expansion tank and air from entering the system when the brake lines are opened.

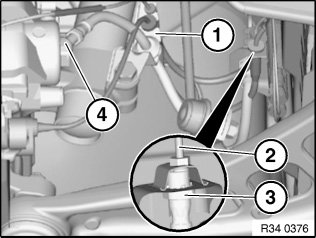

Vehicles up to model year approx. 07/05:
Pull brake hose out of holder (1).

Important!
Grip brake hose at square head (3) to prevent connecting piece from turning in retaining bracket.





Detach brake hose from brake line (2).

Installation:
Tightening torque 34 32 1AZ.

Detach brake hose from brake calliper (4).

Installation:
Tightening torque 34 32 2AZ.

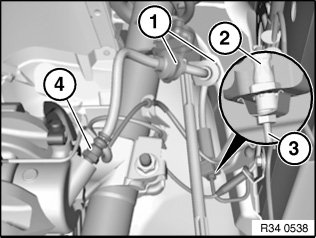

Vehicles as of model year approx. 07/05:
Pull brake hose out of both holders (1).

Important!
Grip brake hose at square head (2) so that connecting piece can not rotate in retaining bracket.

Detach brake hose from brake line (3).

Installation:
Tightening torque 34 32 1AZ.

Detach brake hose from brake calliper (4).

Installation:
Tightening torque 34 32 2AZ.

Important!
First tighten brake hose on brake calliper.
Move wheels into straight-ahead position.
Insert brake hose in bracket and screw onto brake pipe.





Never twist brake hose when installing it and avoid all contact with parts attached rigidly to the body.
