35 11 000 Removing and Installing Complete Bearing Block For Foot Pedal

35 11 000 Removing And Installing Complete Bearing Block For Foot Pedal







Necessary preliminary tasks:
- Remove clutch pedal

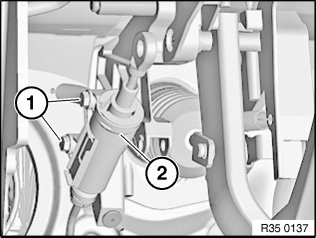

Release screws (1) and gently press clutch master cylinder (2) to one side.

Installation:
Line remains connected.

Replace self-locking nuts.

Tightening torque 21 52 4AZ.

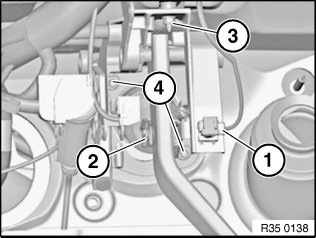

Disconnect plug connection (1).







Remove locking clip (2) and pull out pin.

Unscrew nut (3).

Release nuts (4) and gently swivel bearing block to left and remove.

Installation:
Tighten nuts (4) before nut (3).

Replace self-locking nuts.

Tightening torque 35 11 1AZ.
