51 32 211 Replacing Front Left or Right Rubber Guide For Left or Right Door Window

51 32 211 - Replacing front left or right rubber guide for left or right door window





Important!
The "Instructions on fitting window guides" serve as the basis for this repair instruction and must be observed without fail.





Necessary preliminary tasks:
- Remove rear-view mirror Removing and Installing/Replacing Mirror on Left or Right Front Door on front door

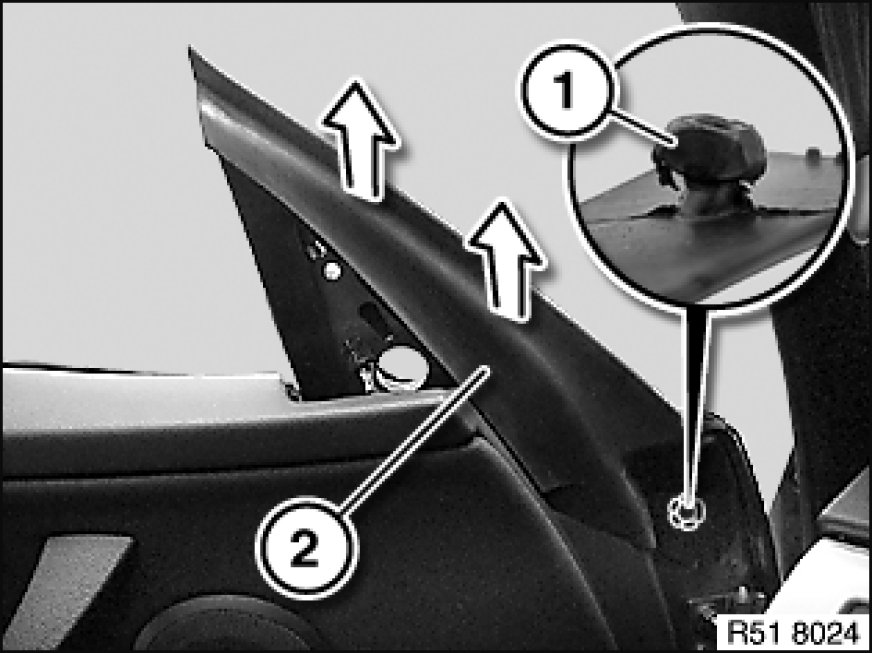

Pop catch (1) of rubber guide (2) out of door.
Pull rubber guide (2) out of window guide rail and remove.






Installation Note:

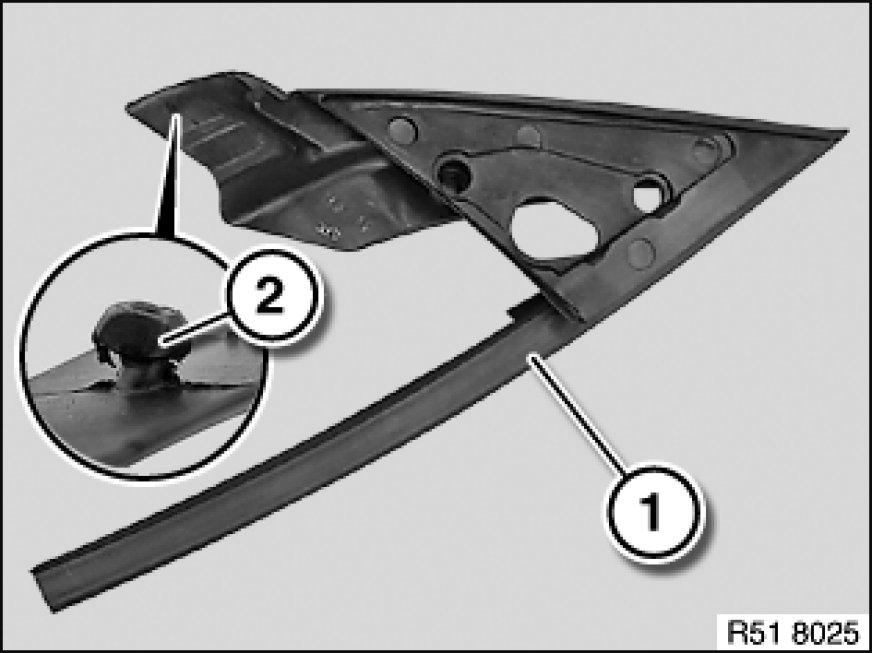

Rubber guide (1) must not be damaged particularly at the corners and at catch (2).





Installation Note:
Moisten rubber guide (2) prior to fitting with approved anti-friction agent.
Installation sequence:
Raise the door window.
Feed rubber guide (2) from above into window guide rail and door window glass.
Close door window glass and at same time slide rubber guide (2) downwards.
Slide rubber guide (2) downwards fully until it is correctly seated on door.
Feed catch (1) into door.
