Removing and Installing/Replacing Seal on Front Door, Left or Right

51 71 000 - Removing and installing / replacing seal on front door, left or right





Note:
Work shown on E92 way of example, deviations in detail are possible in other vehicle models.

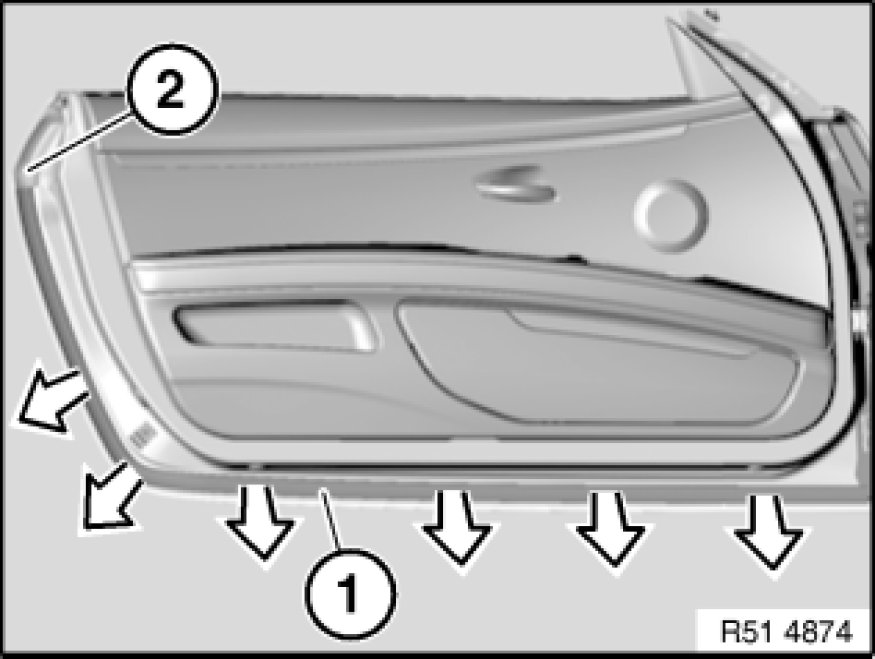

Unclip seal (1) in direction of arrow from front door.

Installation:
Make sure seal (1) is correctly seated on window guide (2).





Installation:

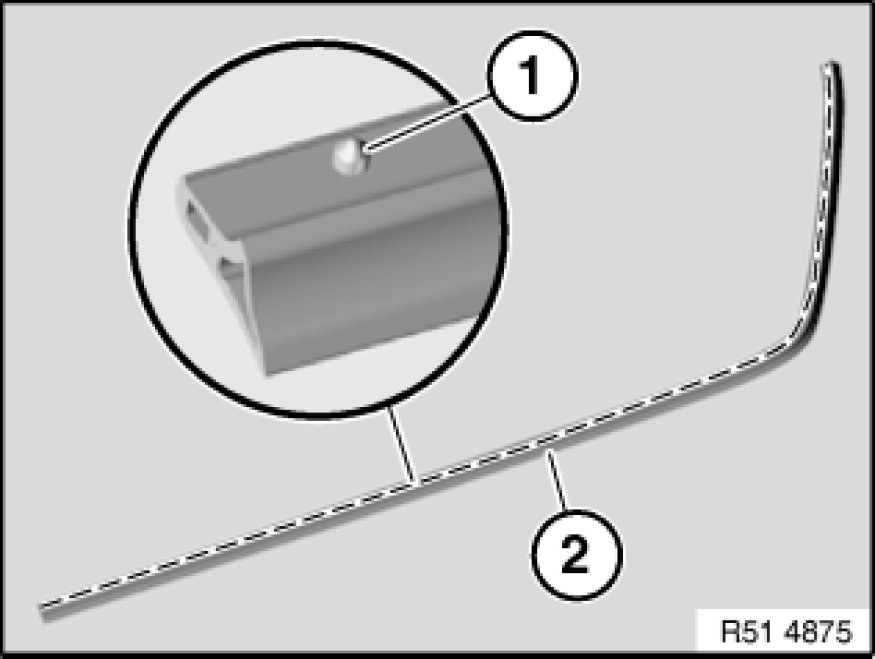

Clips (1) on seal (2) must not be damaged.
