Removing and Installing/Replacing Switch for Lumbar Support

61 31 208 Removing And Installing/replacing Switch For Lumbar Support







Necessary preliminary tasks:
- Remove outer cover on front seat

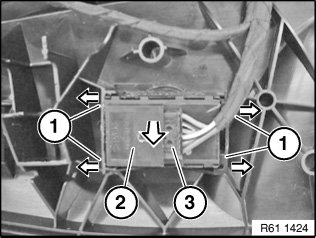

Disconnect plug connection (3).
Unlock catches (1).
Remove switch for lumbar support (2) in direction of arrow.
