Removing and Installing/Replacing Switch for Backrest Width Adjustment

61 31 101 Removing And Installing/replacing Switch For Backrest Width Adjustment







Necessary preliminary tasks:
- Remove outer cover on front seat

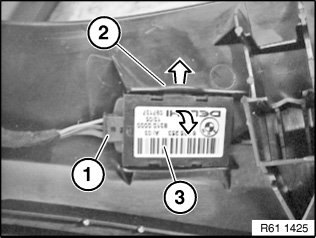

Disconnect plug connection (1).
Unlock retaining tab (2) in direction of arrow.
Remove switch for backrest width adjustment (3) in direction of arrow.
