67 31 572 Removing and Installing/Replacing Drive For Head Restraint Height Adjustment on Left or Right Front Seat

67 31 572 Removing And Installing/replacing Drive For Head Restraint Height Adjustment On Left Or Right Front Seat







Necessary preliminary tasks:
- Remove rear panel on front seat backrest

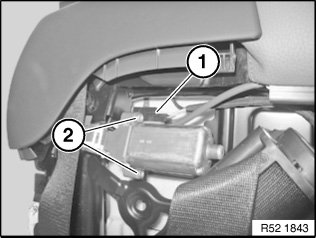

Unfasten screws (2).
Unfasten plug connection (1) and disconnect.
Remove drive unit from flange.
If necessary, pull out inner drive shaft from drive unit or gearing.

Installation:
Make drive shaft is correctly seated.
Make sure drive unit is correctly seated on flange.
