67 31 531 Removing and Installing/Replacing Drive Unit For Backrest Angle Adjustment

67 31 531 Removing And Installing/replacing Drive Unit For Backrest Angle Adjustment







Necessary preliminary tasks:
- Partially remove backrest cover

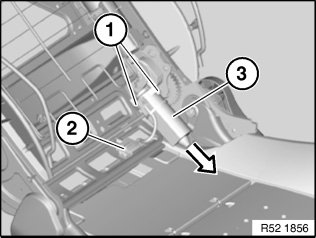

Release screws (1).
Remove drive unit (3) in direction of arrow from flange.
If necessary, pull out inner drive shaft from drive unit or gearing.
Unfasten plug connection (2) and disconnect.

Installation:
Make drive shaft is correctly seated.
Make sure drive unit is correctly seated on flange.
