67 31 521 Removing and Installing/Replacing Drive Unit For Seat Height Adjustment

67 31 521 Removing And Installing/replacing Drive Unit For Seat Height Adjustment







Necessary preliminary tasks:
- Remove front seat

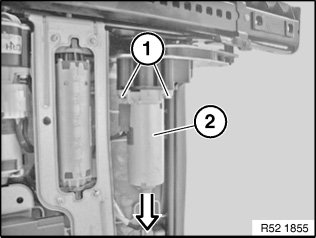

Release screws (1).
Remove drive unit (2) in direction of arrow from flange.
If necessary, pull out inner drive shaft from drive unit or gearing.

Installation:
Make drive shaft is correctly seated.
Make sure drive unit is correctly seated on flange.

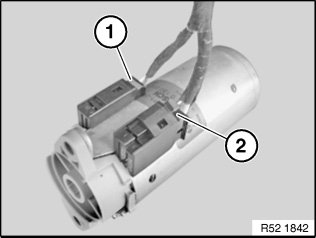

Unlock and disconnect plug connections (1 and 2).
