67 31 511 Removing and Installing/Replacing Drive Unit For Seat Tilt Adjustment

67 31 511 Removing And Installing/replacing Drive Unit For Seat Tilt Adjustment







Necessary preliminary tasks:
- Remove front seat

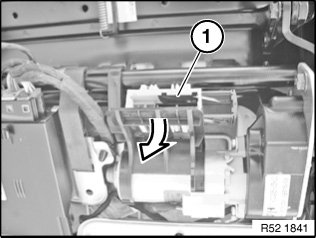

Unclip holder (1) from plug housing.

Installation:
Make sure holder (1) for plug connection is correctly seated

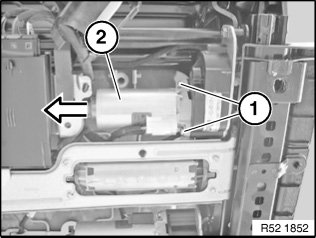

Release screws (1).
Remove drive unit (2) in direction of arrow from flange.
If necessary, pull out inner drive shaft from drive unit or gearing.

Installation:
Make drive shaft is correctly seated.

Make sure drive unit is correctly seated on flange.

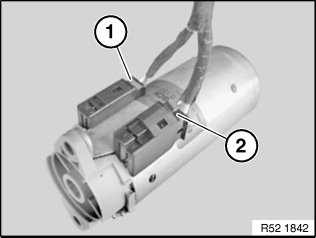

Unlock and disconnect plug connections (1 and 2).
