67 31 501 Removing and Installing/Replacing Drive Unit For Longitudinal Seat Adjustment

67 31 501 Removing And Installing/replacing Drive Unit For Longitudinal Seat Adjustment







Necessary preliminary tasks:
- Remove front seat







Release screws (1).







Release screws (1).
Unlock plug connections (2) and (3) and disconnect.
Carefully bend long flex shaft with jacket tube and pull out of gearing.
Pull short flex shaft including carrier plate out of gearing.
Feed out carrier plate with drive unit.







Installation:

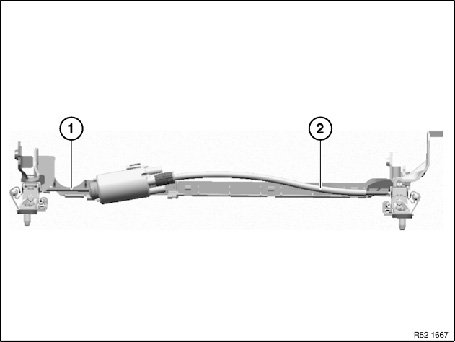

Slide short flex shaft (1) into longitudinal seat adjustment gearing square.
Bend long flex shaft (2) upwards and slide into longitudinal seat adjustment gearing.
Make sure flex shafts are correctly seated in gearings.
