Home >> BMW >> 2011 >> 335is Convertible (E93) L6-3.0L Turbo (N54T) >> Repair and Diagnosis >> Body and Frame >> Seats >> Diagrams >> Electrical Diagrams >> Driver's Seat Adjustment (With SMFA)

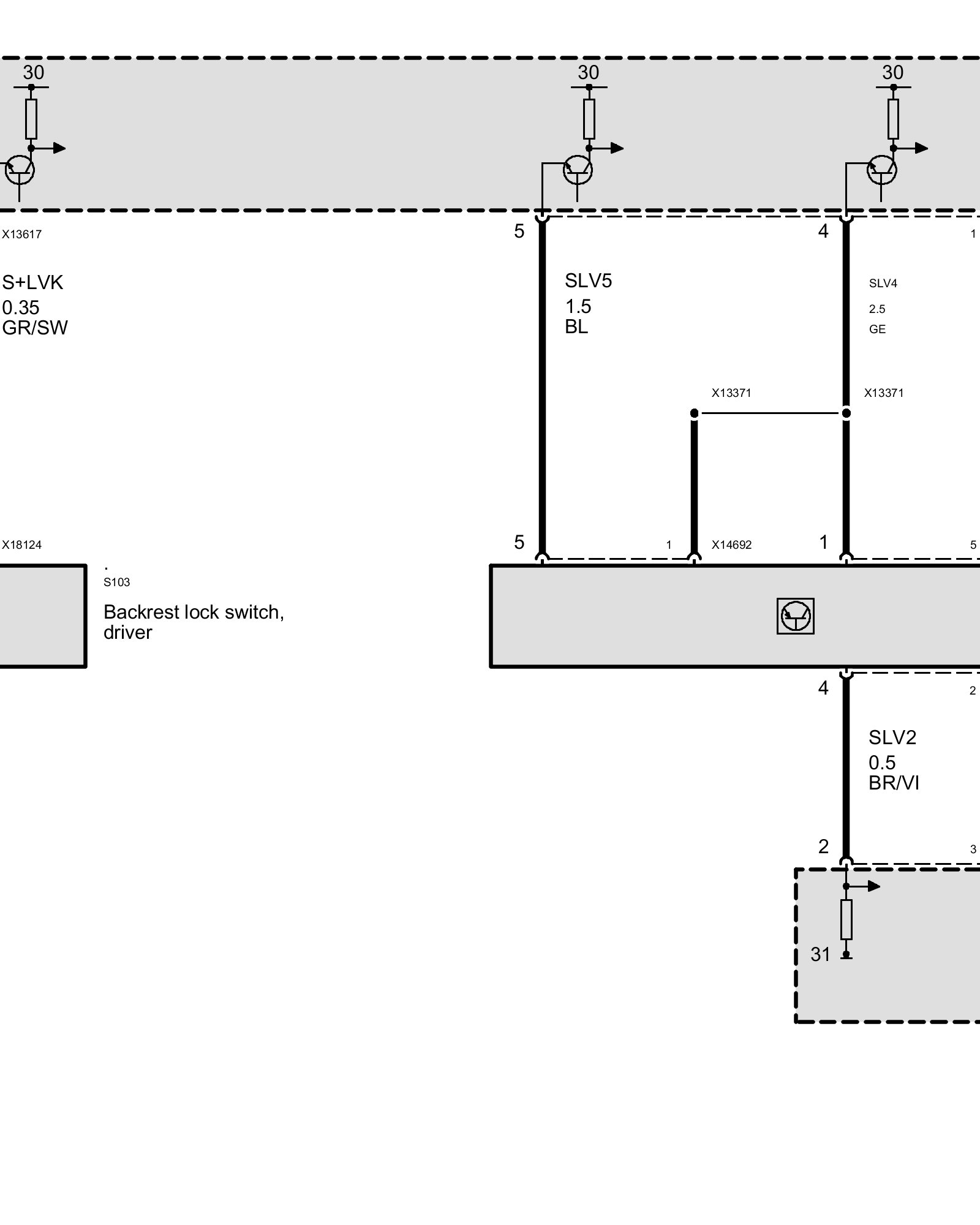

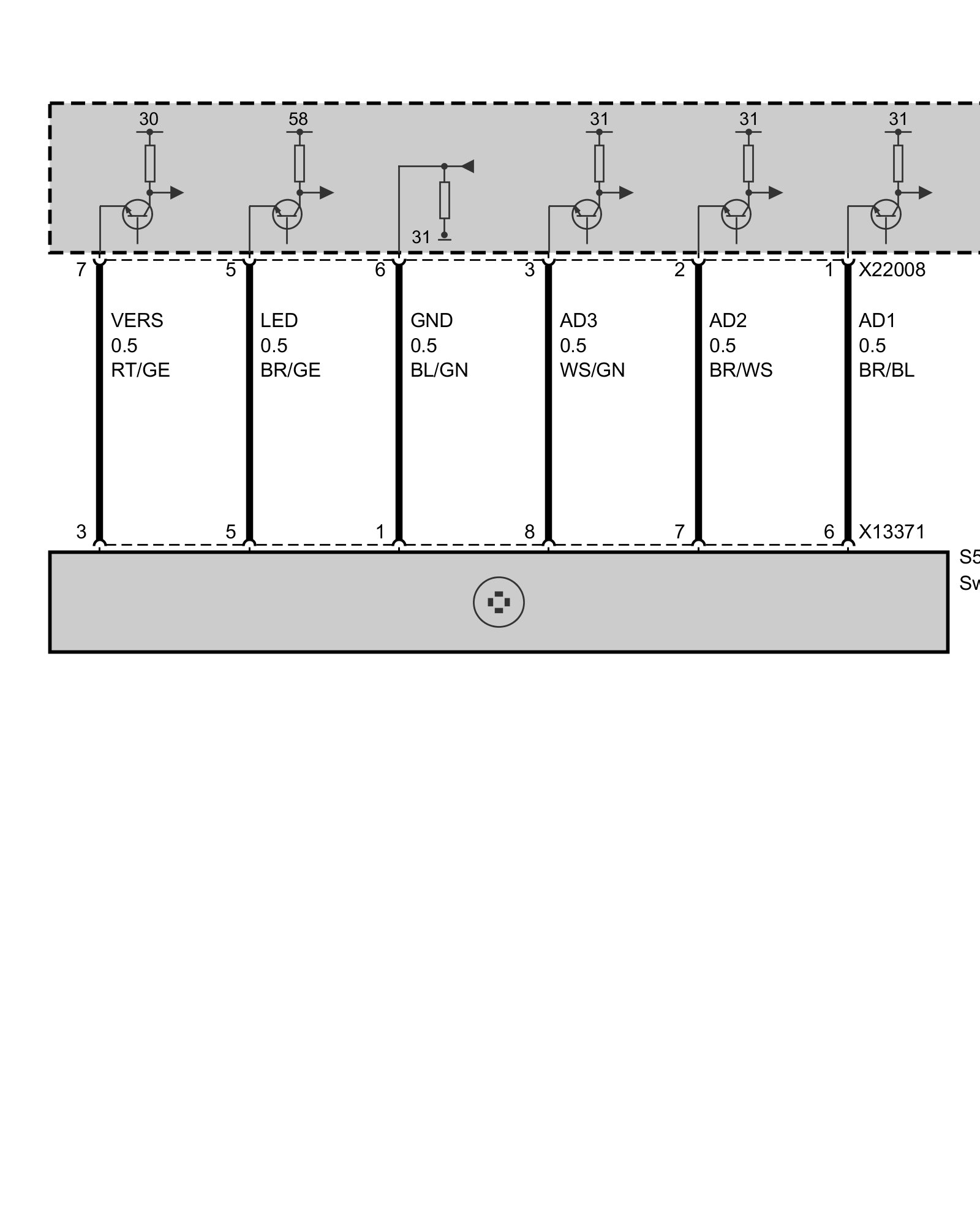

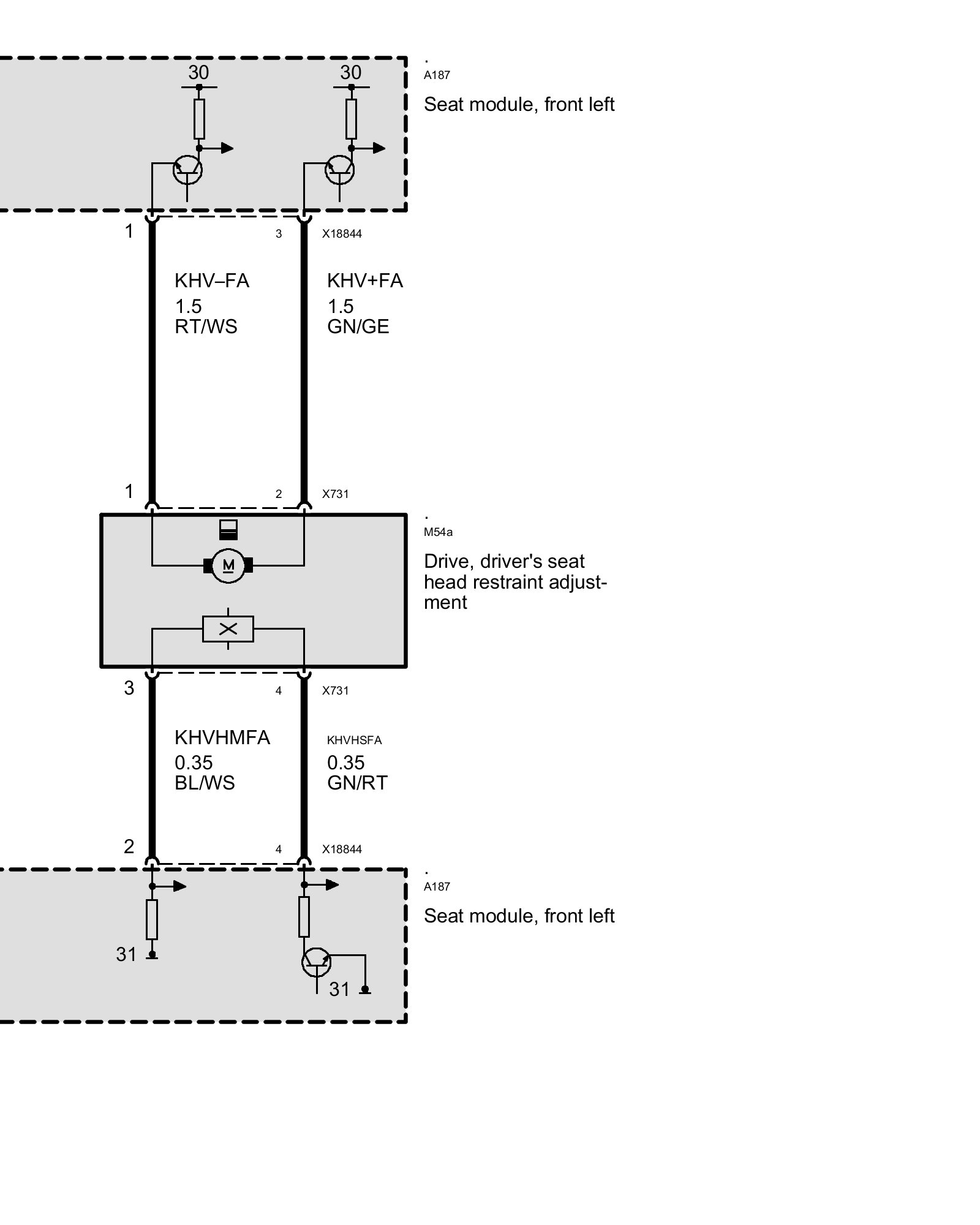

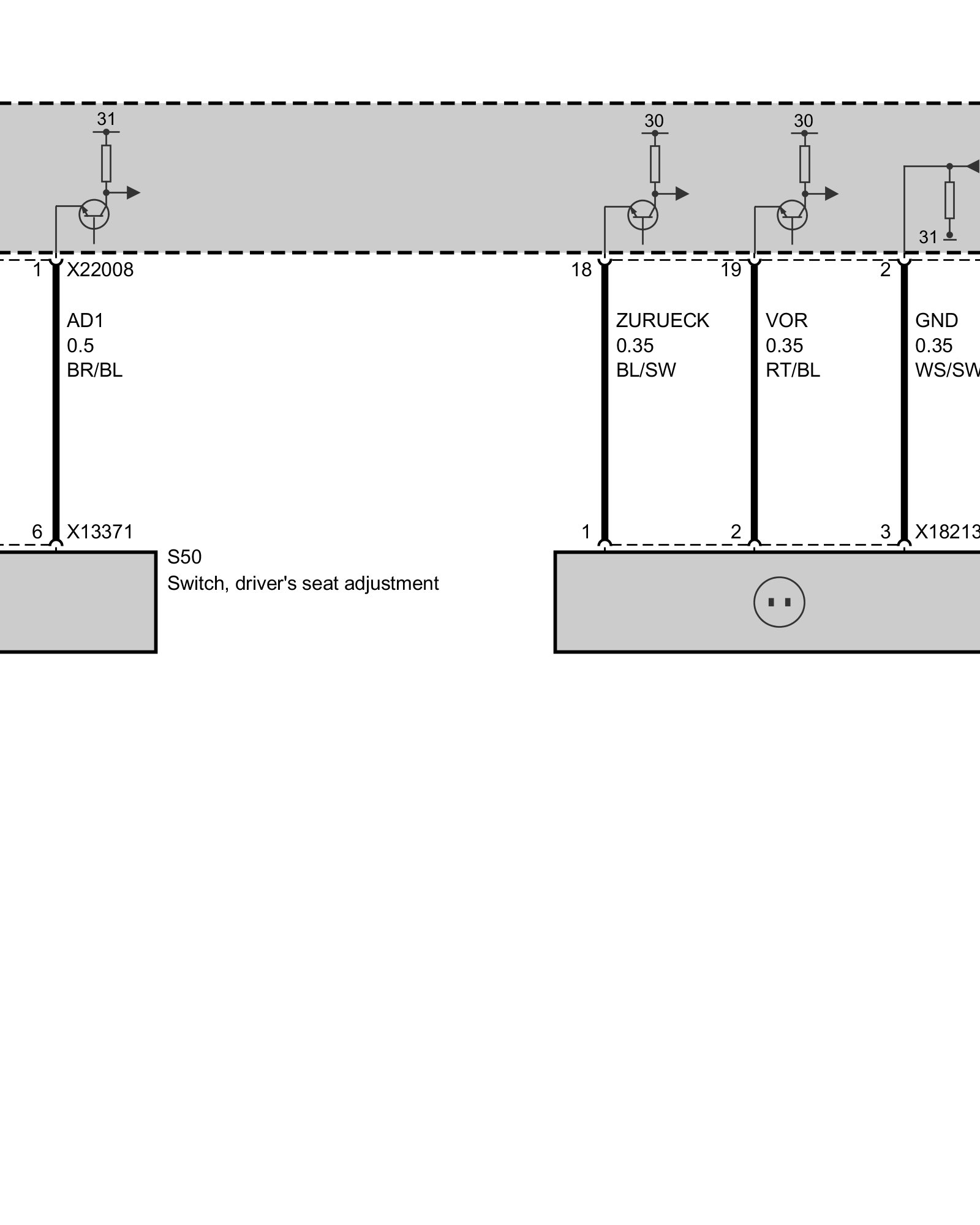

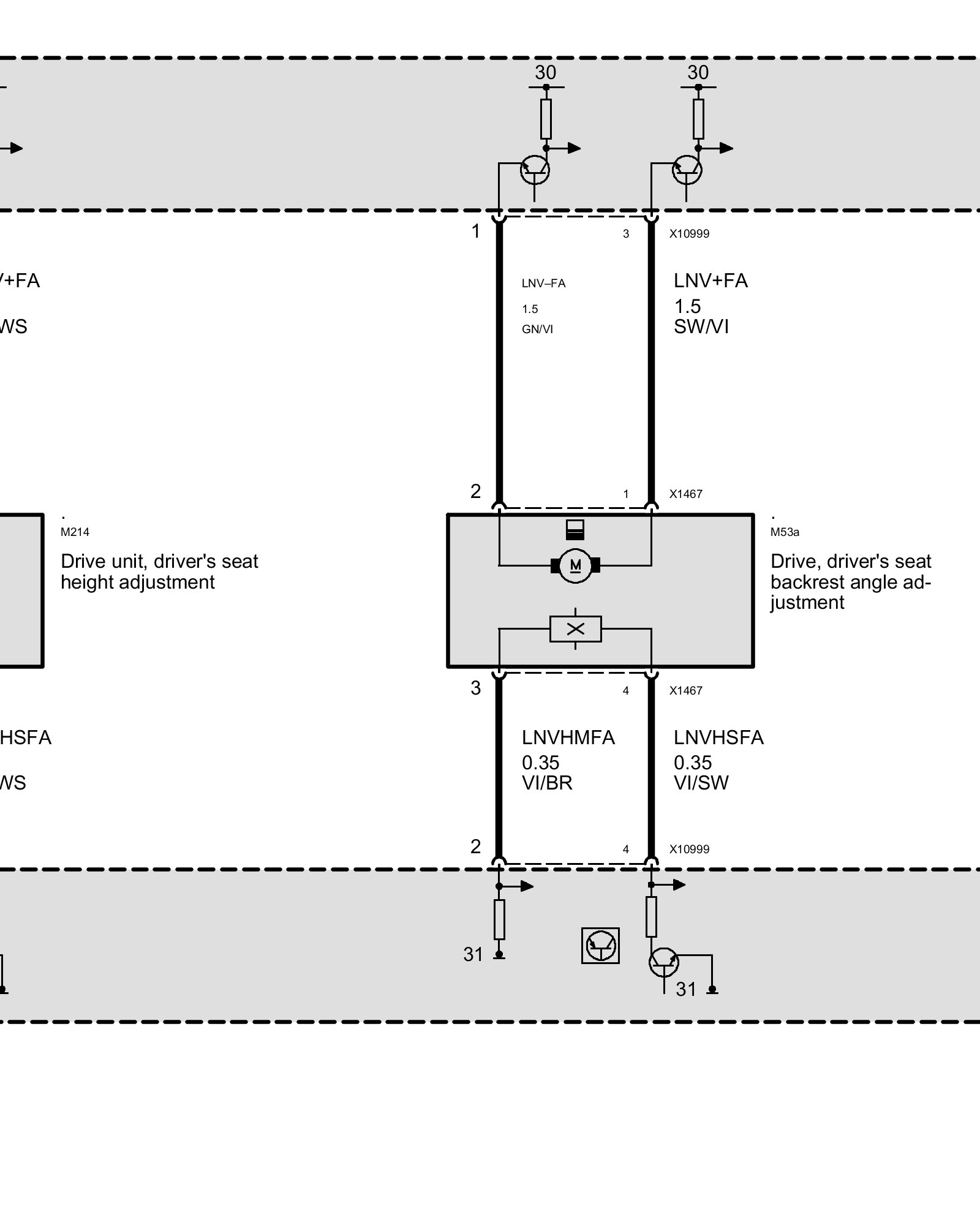

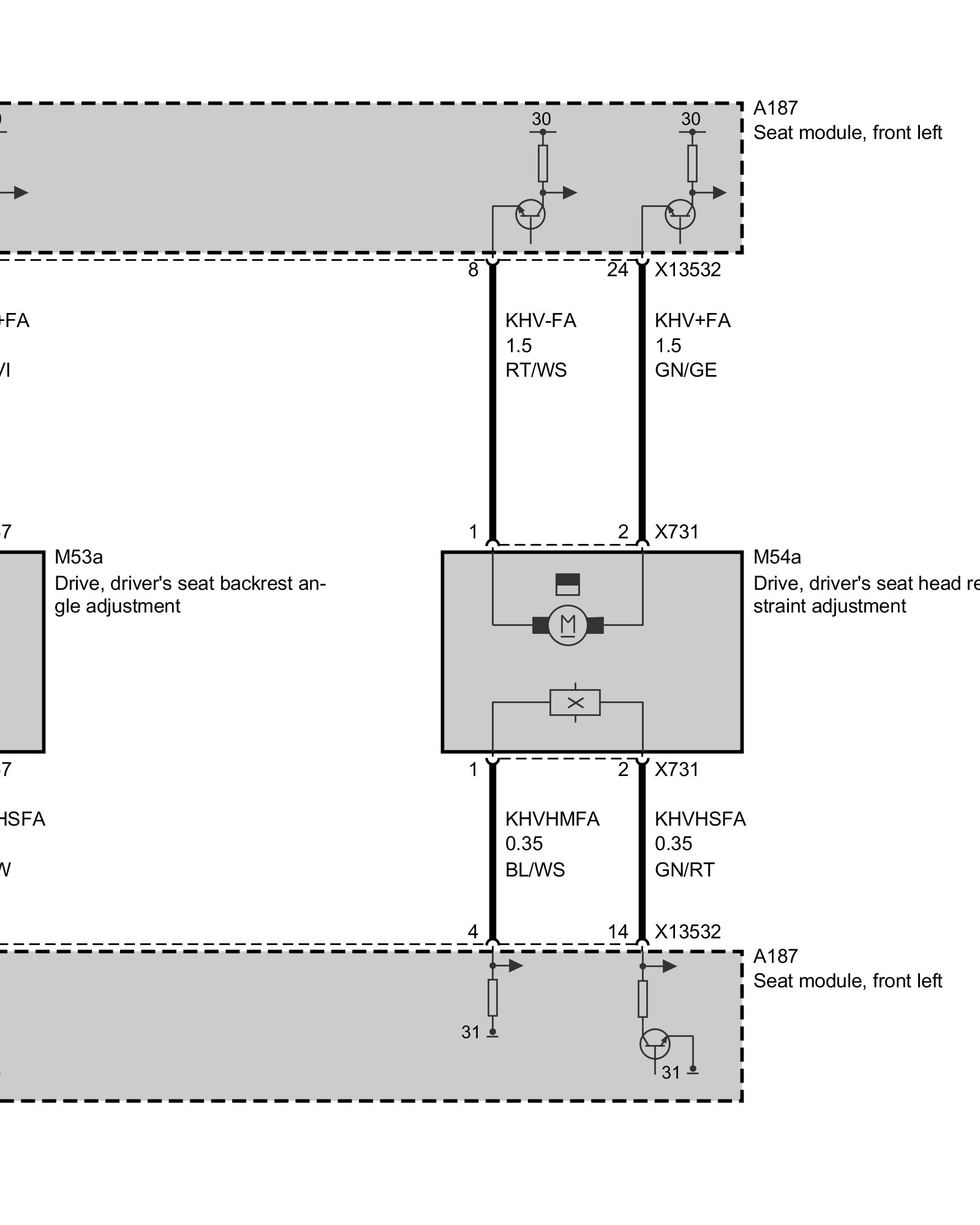

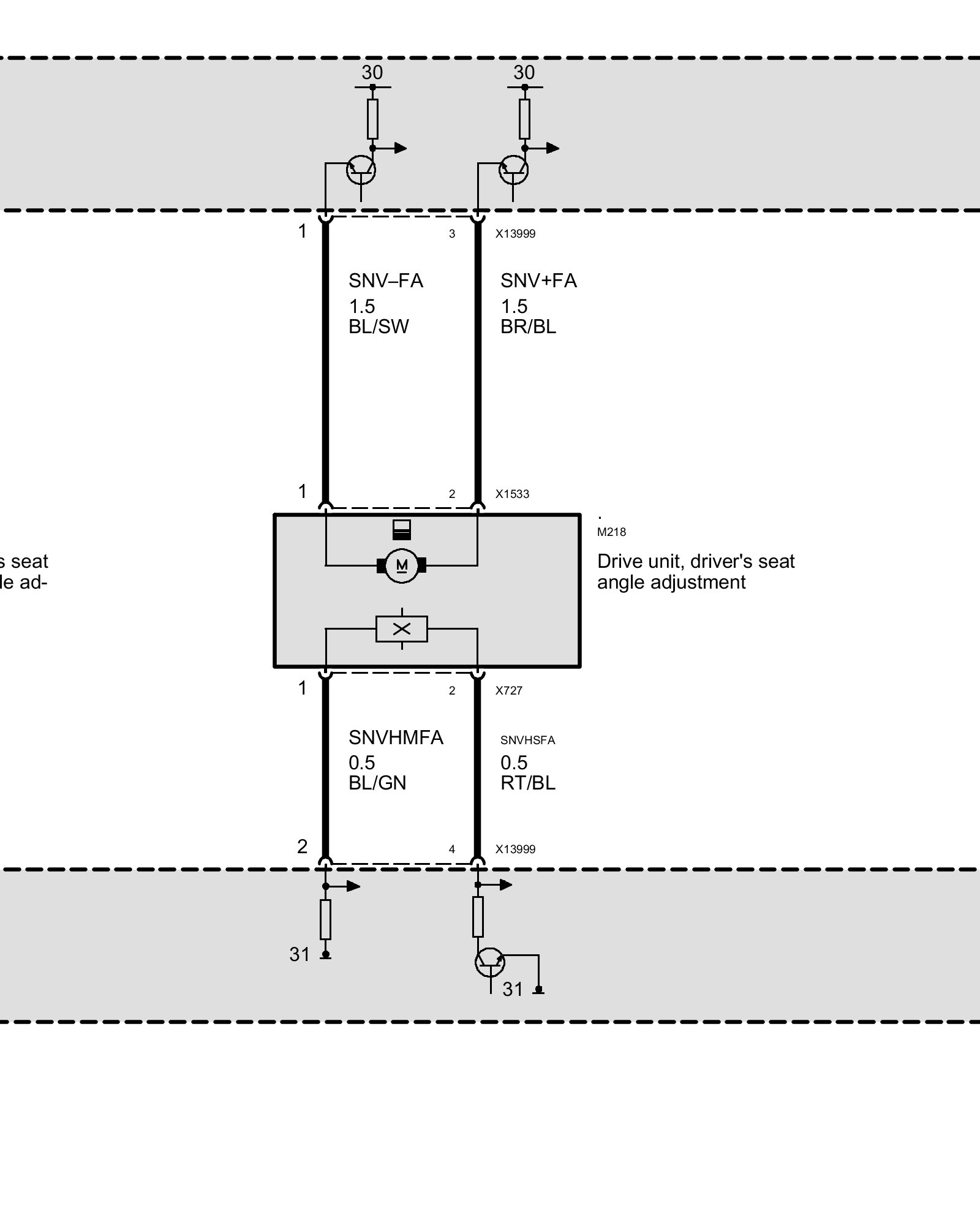

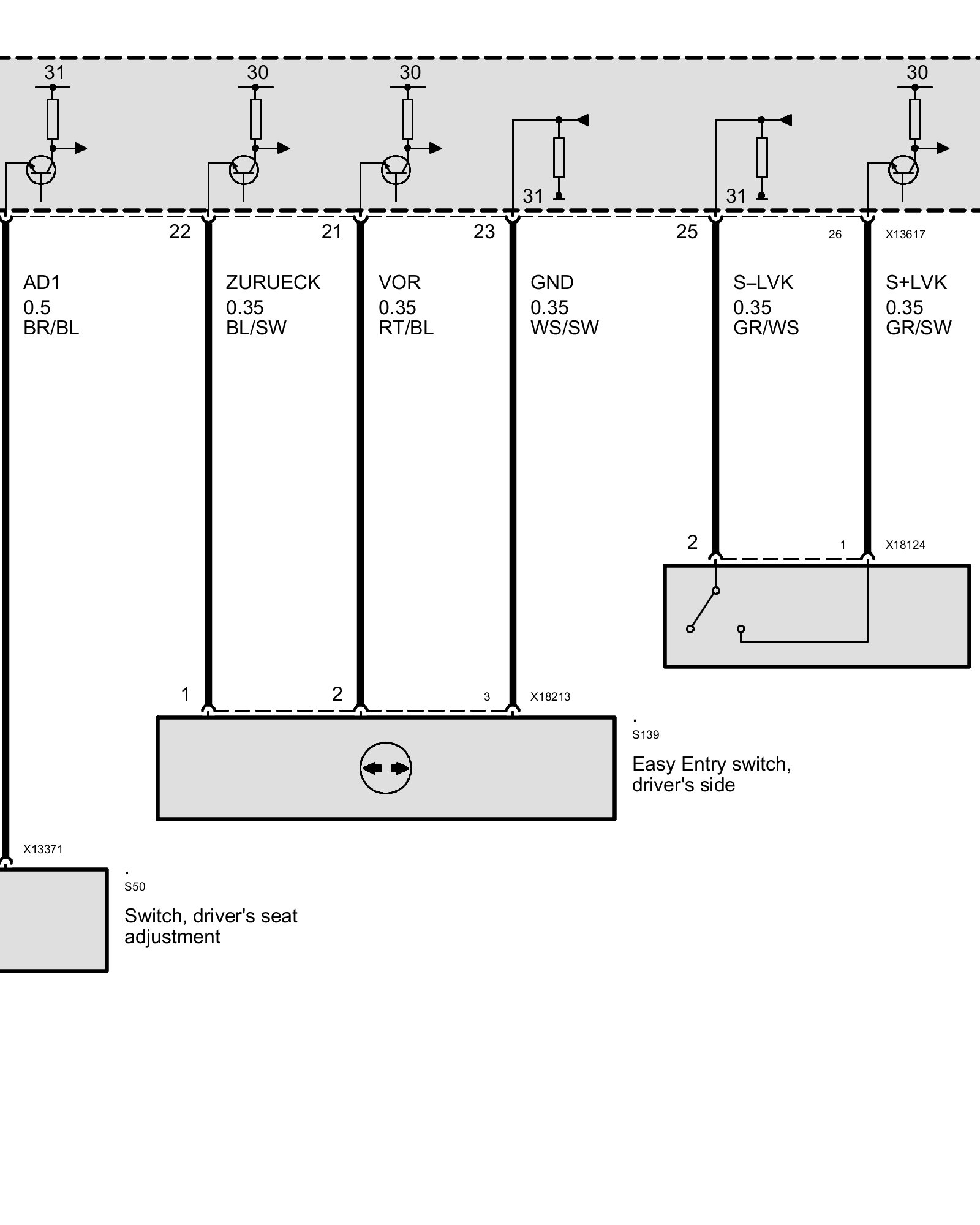

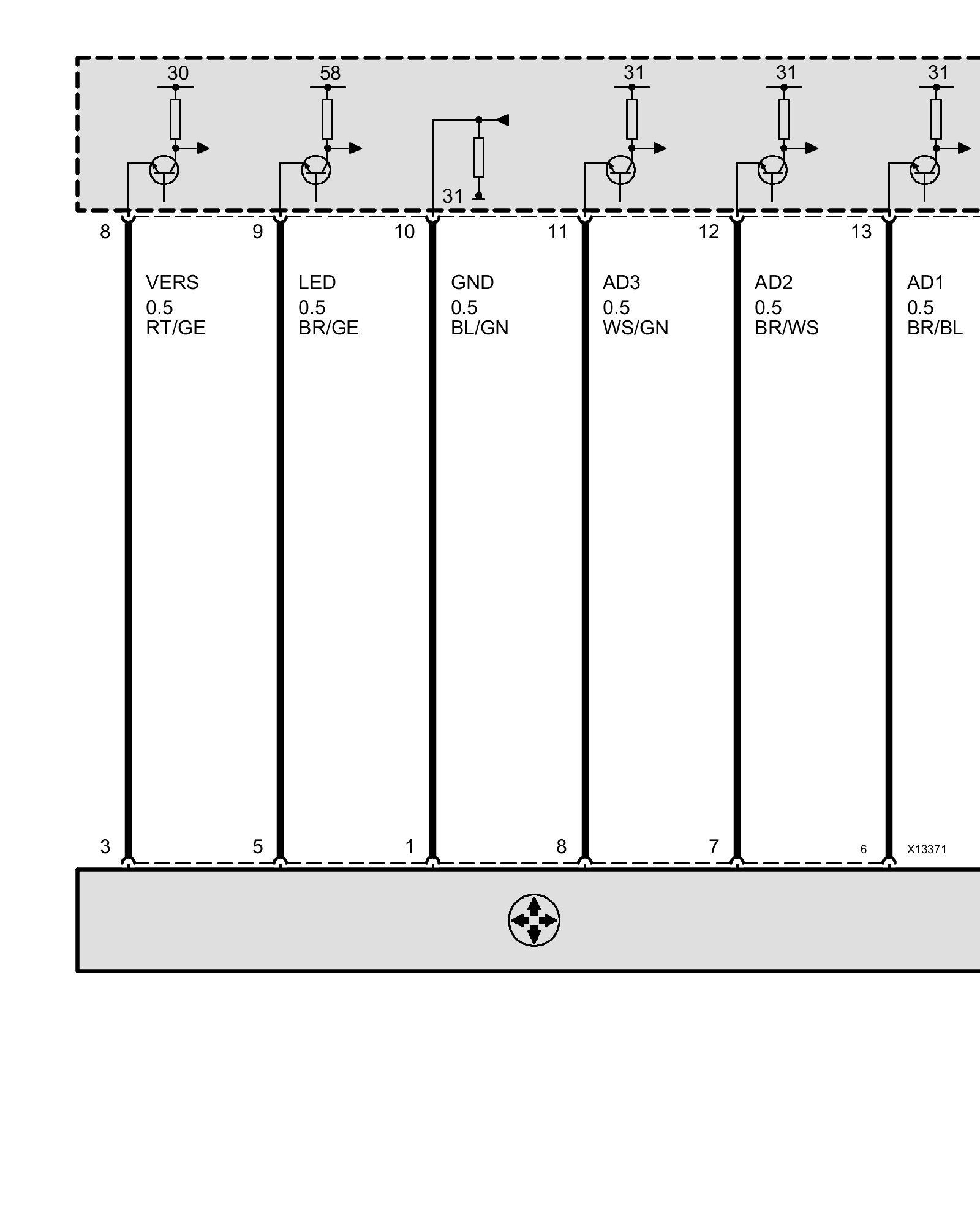

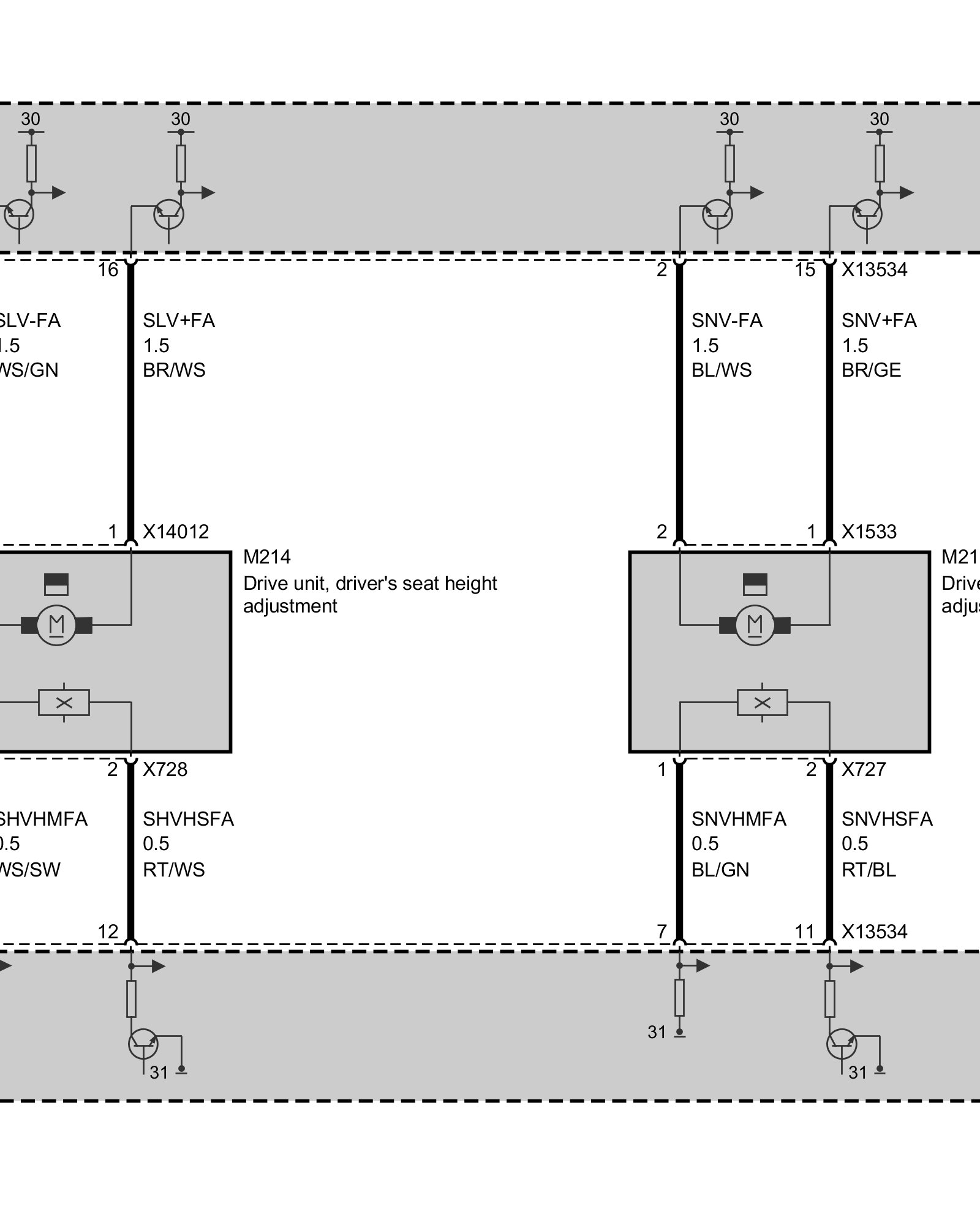

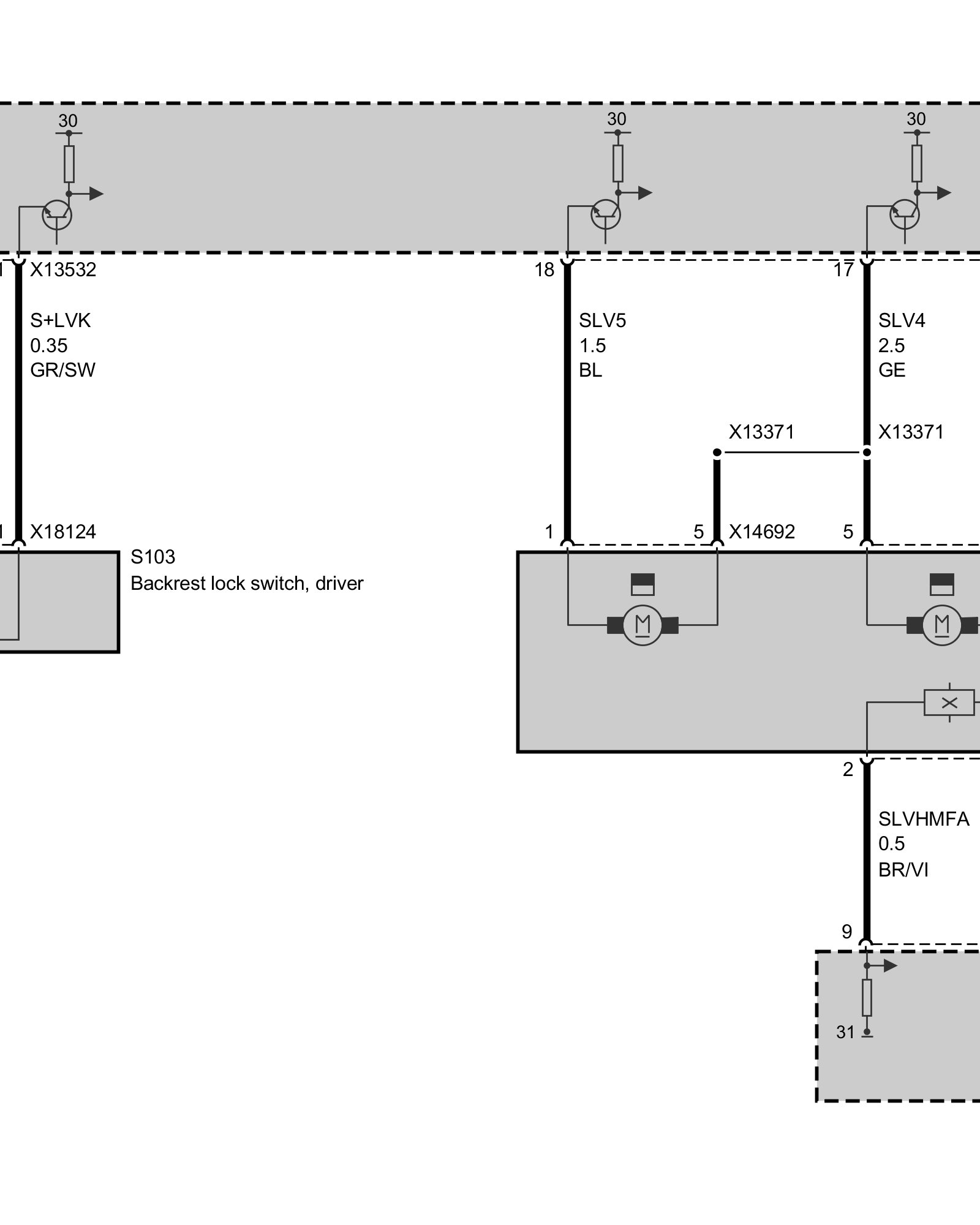

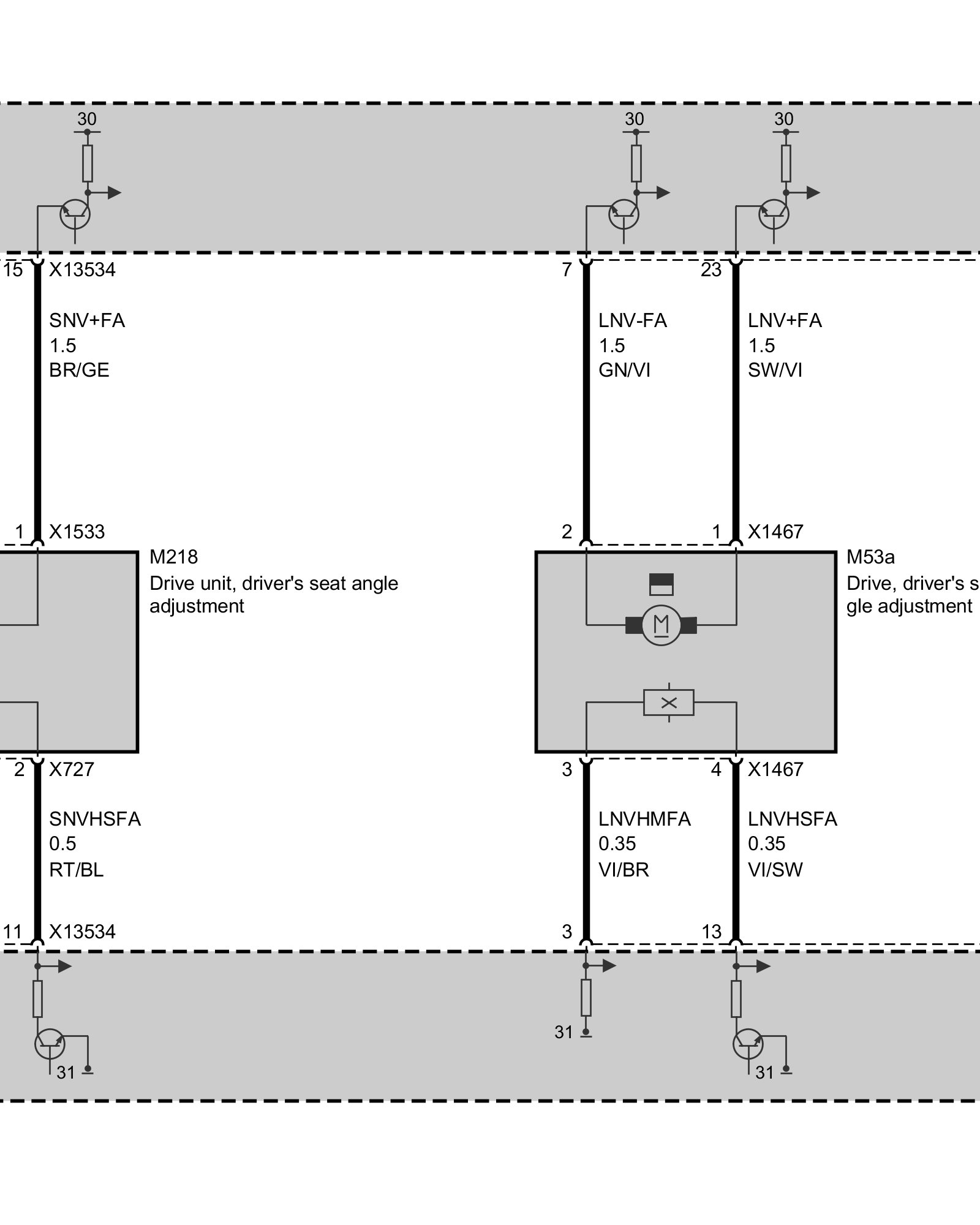

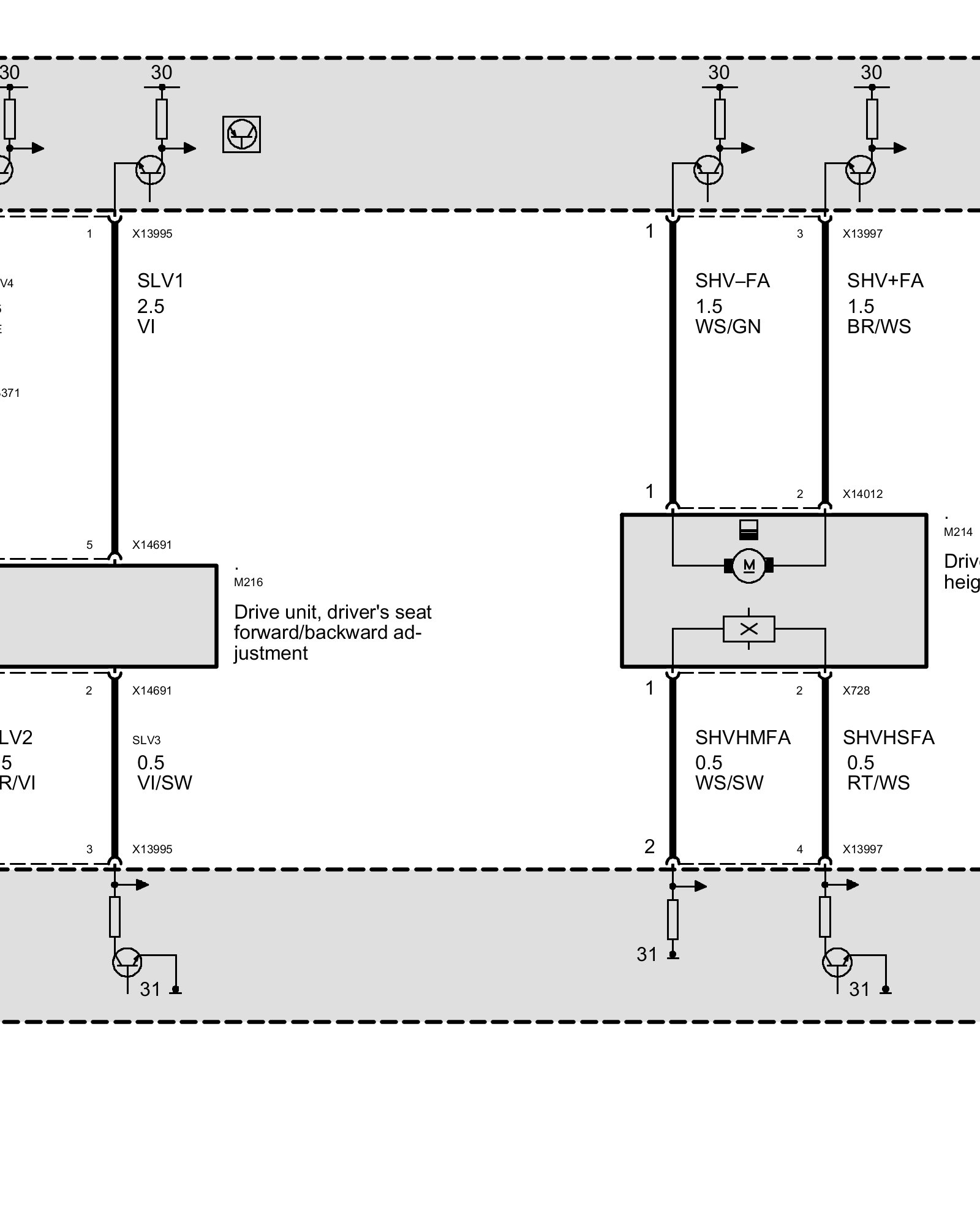

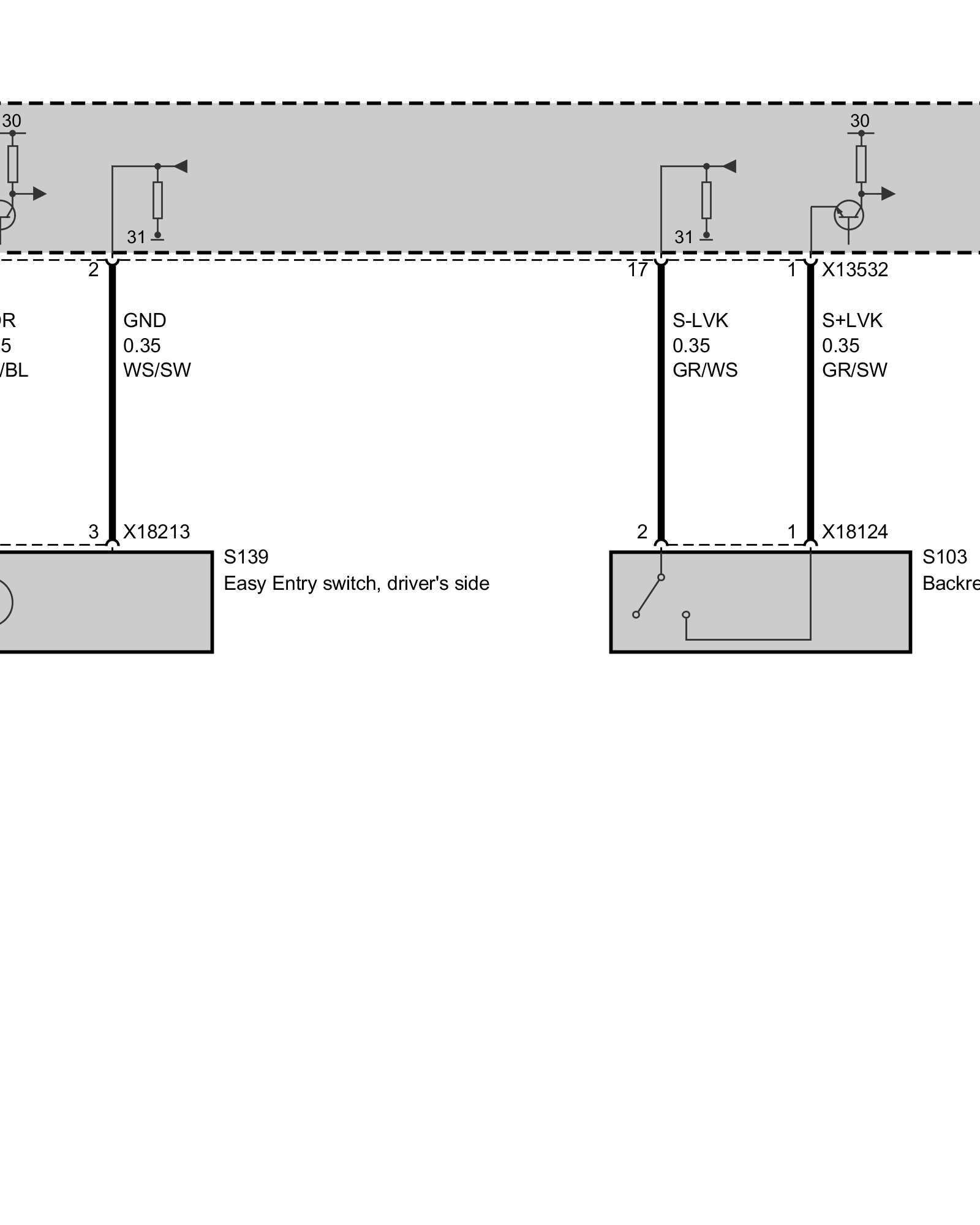

Driver's Seat Adjustment (With SMFA)



Driver's Seat Adjustment
