54 37 240 Removing and Installing/Replacing Microswitch For Baseplate

54 37 240 Removing And Installing/Replacing Microswitch For Baseplate







Necessary preliminary work:
- Remove cowl panel trim

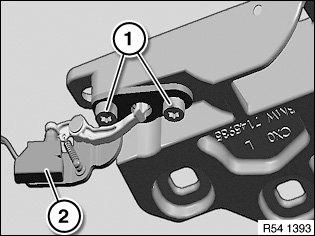

Release screws (1).

Tightening torque: 54 37 26AZ.

Remove microswitch (2).

For vehicles with base plate with spring package only:







IMPORTANT:
- When removing the microswitch protect the spring package from falling out.

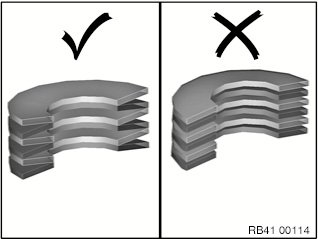

- Ensure correct seating of the 6 spring elements during installation.

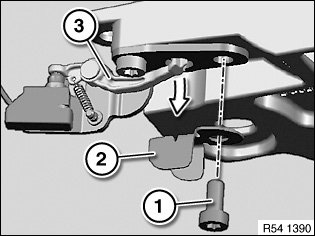

Removing guide plate if necessary only on build date (version) up to 07/2007:
Release screw (1).

Pull back microswitch lever (3).

Remove guide plate (2).
